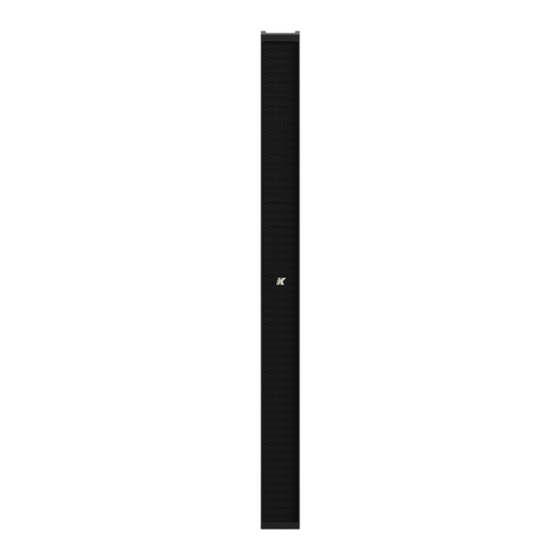

K-array Vyper KV52 User Manual

Ultra-flat passive speaker system
Hide thumbs
Table of Contents

Advertisement

Quick Links

KV52
Ver 1.1
KV52
USER GUIDE
English

Advertisement

Table of Contents
loading

Related Manuals for K-array Vyper KV52

Summary of Contents for K-array Vyper KV52

  • Page 1 KV52 Ver 1.1 KV52 USER GUIDE English...

  • Page 2: Table Of Contents

    KV52 Ver 1.1 TABLE of CoNTENTS SYMBoLS ................3 1. INTRoDUCTIoN ..............4 2. KEY fEATURES ..............4 3. APPLICATIoNS ............... 4 4. SAfETY INfoRMATIoN ............5 5. UNPACKING ................. 6 6. PACKAGING ................6 7. PhYSICAL oVERVIEw .............. 7 8.

  • Page 3: Symbols

    KV52 Ver 1.1 SYMBoLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! Waste Electrical and Electronic Equipment (WEEE) Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.

  • Page 4: Introduction

    Hz. Integrating an ultra-compact K-array subwoofer powered by KA amplifier set with specific presets optimized for the KV52 assures excellent coverage of the entire musical frequency range. All KV52 Vyper components are designed by the K-array R&D Department and custom made under the K-array quality control system.

  • Page 5: Safety Information

    KV52 Ver 1.1 4. SAfETY INfoRMATIoN Warning: Failure to follow these safety instructions could result in injury or damage to the device or other property. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions and keep all warnings.

  • Page 6: Unpacking

    Ver 1.1 5. UNPACKING Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new audio element. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment.

  • Page 7: Physical Overview

    KV52 Ver 1.1 7. PhYSICAL oVERVIEw 3,9in 3,9in 100mm 100mm 19,2in 488mm 19,7in 500mm Weight 0.7 kg (1.5 lbs)

  • Page 8: Wiring

    KV52 Ver 1.1 8. wIRING The KV52 features two 2-pin phoenix connectors wired in parallel. The two connectors are interchangeable and can be used to connect the speaker to the amplifier or to connect the speaker to another KV52 driven in parallel by the same amplifier channel. The KV52 allows the user to select two different values of impedance (16Ω...

  • Page 9: Installation

    KV52 Ver 1.1 9. INSTALLATIoN 9.1 INCLUDED wALL BRACKETS The KV52 can be easily installed on the wall using the two included wall brackets. Secure the two brackets on the wall using four M4 screws. Position the KV52 between the two brackets and use the four included M3 hex screws to secure the chassis to the brackets.

  • Page 10: Mounting The Unit

    KV52 Ver 1.1 9.2 MoUNTING ThE UNIT To ThE wALL The KV52 can be installed on the wall just using two M4 screws (not included). The grill must be removed to insert the screws (T10 torx screw driver required).

  • Page 11: Tilting The Unit

    KV52 Ver 1.1 9.3 TILTING ThE UNIT K-WALL2L, K-WALL2 and K-V5WALL1 wall brackets are all compatible with the KV52. K-WALL2L and K-WALL2 allows for tilting the speaker when necessary.

  • Page 12: Joining Two Units

    KV52 Ver 1.1 9.4 JoINING Two UNITS The two included linking brackets allow the user to join two units together to create a longer array. The bottom unit is tilted 5° downwards to properly cover the audience closest to the array. Use the four included hex screws to join the two speakers.

  • Page 13: Service

    10. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference.

  • Page 14: Technical Specifications

    The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice.

  • Page 15: Certification

    KV52 Ver 1.1 12. CERTIfICATIoN DECLARATION OF CONFORMITY Manufacturer/Importer: K-array s.u.r.l. Brand K-ARRAY Address: via Paolina Romagnoli 17 50038 Scarperia e S. Piero Firenze ITALY Date of Issue: 20 / 02 / 2017 Model Code: KV52 – KV52W – KV52X – KV52XB – KV52XG – KV52XP...
