K-array Kayman-KY102-EBS Manual

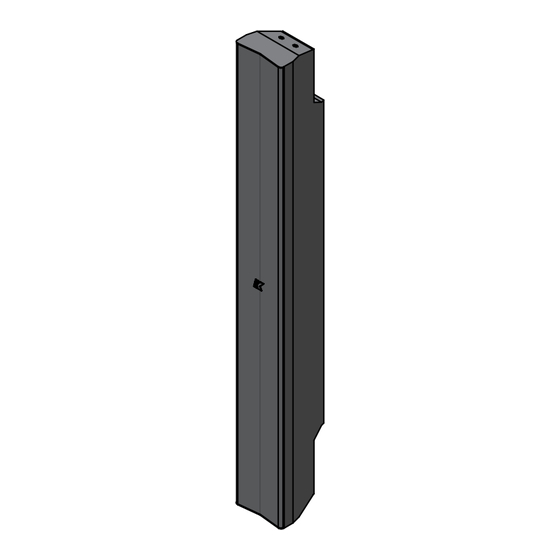

Stainless steel steerable line array element with 4” drivers
Hide thumbs

Advertisement

Quick Links

Download this manual
USER GUIDE
Kayman-KY102-EBS
Stainless steel steerable line array element with 4" drivers
•20240220•

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kayman-KY102-EBS and is the answer not in the manual?

Questions and answers

Related Manuals for K-array Kayman-KY102-EBS

Summary of Contents for K-array Kayman-KY102-EBS

  • Page 1 USER GUIDE Kayman-KY102-EBS Stainless steel steerable line array element with 4” drivers •20240220•...

  • Page 3: Important Safety Instructions

    Kayman-KY102-EBS USER GUIDE IMP OR TA N T S A FE T Y INSTRU CT IO NS General heed and warnings • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water.
  • Page 4 Connecting an impedance load outside the amplifier’s rated range can damage the apparatus. • K-array cannot be held responsible for damage caused by improper use of the loudspeakers. • K-array will not shoulder any responsibilities for products modified without prior authorization.
  • Page 5 The Electronic Beam Steering integration with PAT – Pure Array Technology –, combines accuracy and even coverage with maximum control over directivity of the Kayman-KY102-EBS line array where each of the eight woofers can be independently processed trough FIR filters.
  • Page 6 The Kayman-KY102-EBS features eight 4” drivers that can be directly and independently driven by eight separated amplifier A. 1x Kayman-KY102-EBS with built-in 5 m (16.4 ft) signal cable. channels. The Kommander-KA18 is the dedicated K-array 8-channel audio power amplifier with DSP designed to perfectly match with the Kayman-KY102-EBS’...
  • Page 7 HOT (+) W8 – woofer 8 W8– COLD (–) HOT (+) The Kayman-KY102-EBS is provided with a built-in 5 m (16.4 ft) long multicore cable. W1– The cable ends with eight pairs of strands. Each pair of strands is W2–...
  • Page 8 Kayman-KY102-EBS USER GUIDE In order to drive the Kayman-KY102-EBS transducers independently, every pair of strands shall be connected to a single Kommander-KA18 amplifier channel. A 16 wires multicore cable shall be used to connect the Kayman- KY102-EBS loudspeaker to the Kommander-KA18 amplifier.

  • Page 9: Wire Gauge

    Kayman-KY102-EBS USER GUIDE Updating EBS DSP Wire Gauge For up to 30 m (almost 100 ft) of cable run a multicore cable with The Kommander-KA18 amplifier firmware can be updated to EBS 16 conductors 0,75 mm cross section (18 AWG) can be used.

  • Page 10: Mechanical Drawings

    116mm 101mm 4,6in 4,0in 2. Contact the official K-array distributor in your country: find the Distributors and Dealers list on K-array website. Please describe the problem clearly and completely to the Customer Service. 3. You will be contacted back for on line servicing.

  • Page 11: Technical Specifications

    2 Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m. 3 More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant) Passive loudspeaker requiring dedicated K-array Kommander-KA18 amplifier with firmware-EBS (KA18-EBS model on K-Monitor) New materials and design are introduced into existing products without previous notice.
  • Page 12 Designed and Made in Italy K-ARRAY surl Via P. Romagnoli 17 | 50038 Scarperia e San Piero - Firenze - Italy ph +39 055 84 87 222 info@k-array.com www.k-array.com...
