- Page 1 KV50 Vyper KV50 USER’S MANUAL English REV. A...
-
Page 2: Table Of Contents
KV50 CONTENTS SYMBOLS 1. INTRODUCTION 2. APPLICATIONS 3. KEY FEATURES 4. UNPACKING 5. WARRANTY 6. SAFETY 7. PHYSICAL 8. REAR PANEL 9. SERVICE 10. SPECIFICATIONS REV. A... -
Page 3: Symbols
KV50 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 4: Introduction

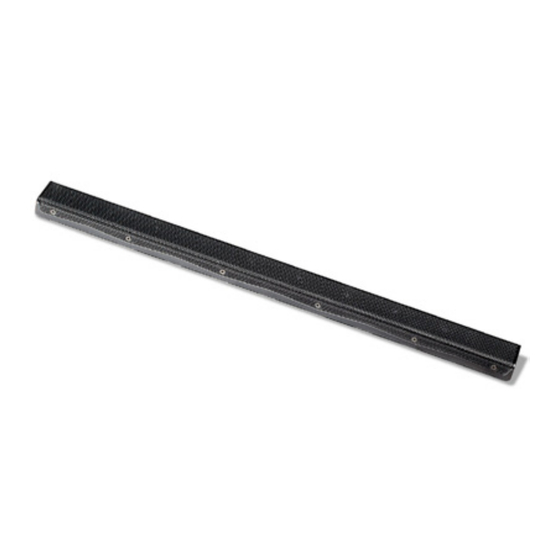

KV50 1. INTRODUCTION Vyper KV50 is an ultra-flat passive speaker system comprised of eight 1” neodymium magnet transducers housed in an elegant and sturdy aluminum chassis. The eight closely spaced cone drivers provide true line array characteristics - phase coherence, low distortion and focused listening in both the near field and at a distance from the speaker. -
Page 5: Unpacking
God or accidents, or any use of this product that is not in accordance with the instructions provided by K-array. K-array is not liable for consequential damages. This warranty is exclusive and no other warranty is expressed or implied. -
Page 6: Physical
KV50 7. PHYSICAL 20 cm 7.87” 3.6 cm 1.42” 3.6 cm 1.42” 2 cm 0.79” 50 cm 19.7” weight: 0.7 kg (1.54 lb) REV. A... -
Page 7: Rear Panel
KV50 8. REAR PANEL Mounting M5 screw holes. Most K-array mounting or flying accessories are designed to screw into the speakers using these holes. The KV50 is equipped with two screw holes. Impedance switch (16 Ω or 64 Ω). Selects the impedance of the speaker. -
Page 8: Service
9. SERVICE To obtain service: Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. If you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Cus- tomer Service, and be prepared to describe the problem clearly and completely. -
Page 9: Specifications
KV50 10. SPECIFICATIONS TECHNICAL DATA KV50 Acoustics Power handling 150 w (AES) Max Power 300 w Impedance 16Ω or 64Ω (selectable) Frequency range 200 Hz - 20 KHz. SPL 1W / 1mt 86 dB Maximum SPL 108 dB continuous - 114 dB peak Coverage Horizontal 110°... - Page 10 KV50 The contents of this manual are furnished for informational purposes only. Hp Sound Equipment s.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. Hp Sound Equipment s.r.l. reserves the right to make modifications without prior notice.
- Page 11 K-array s.r.l. unipersonale Via Paolina Romagnoli - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com...
