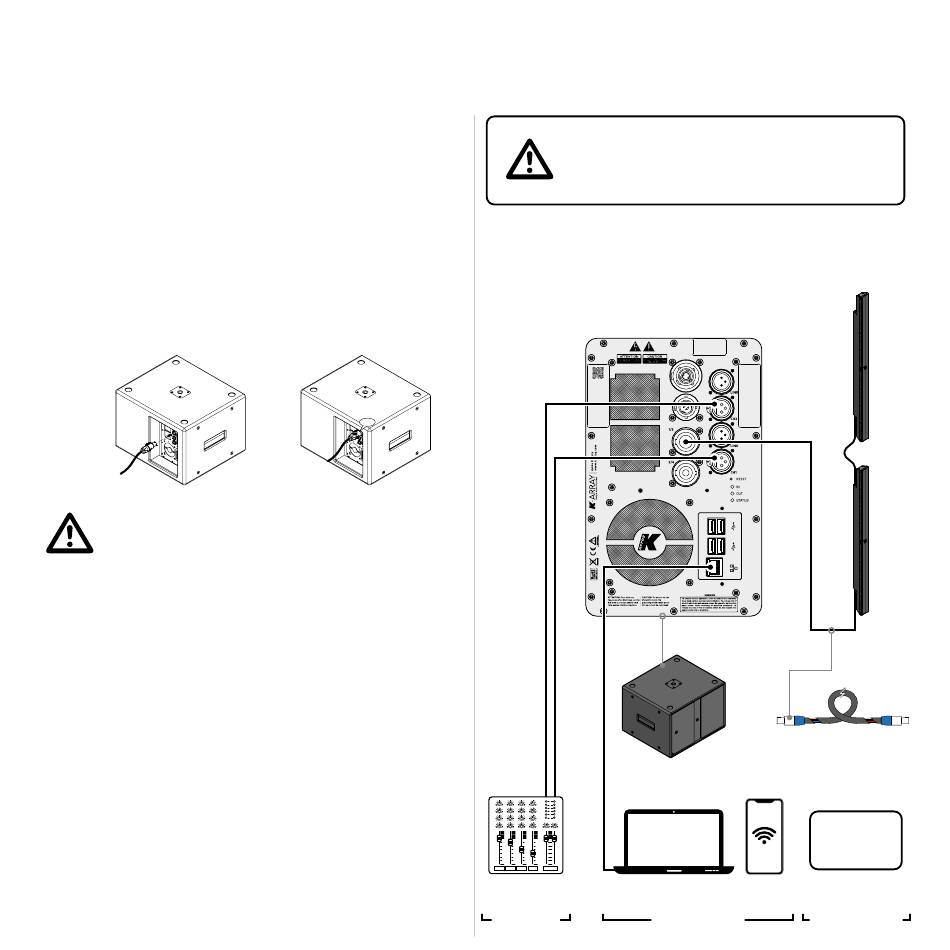

AC mains supply

The AC Main connection is made via the provided power
cord: insert the powerCon TRUE flying connector into
the Thunder-KS active subwoofer inlet and then rotate it
clockwise.
Once properly plugged, the active subwoofer power up: the
back LEDs light on.
The powerCon TRUE link (AC mains out) connector allows
to distribute the AC main power to one further active unit.
1
Please don't exceed the limit of two Thunder-KS
active units linked and powered by the same line.
Loudspeakers Wiring
The Thunder-KS active subwoofers features two NL4
speakOn output connectors designed to drive external
Hi/Mid-range loudspeakers as well as other subwoofers or
full-range passive loudspeakers systems.
A single loudspeaker system is composed of one Thunder-KS
active subwoofer and one or more top loudspeakers. An
active + passive loudspeakers system is composed of one
Thunder-KS active subwoofer driving both one or more top
loudspeakers and one passive Thunder-KS subwoofer with
satellites (top loudspeakers).
10
2
click!
The proper loudspeaker presets shall be
loaded in the built in DSP using the dedicated
K-array Connect app or the K-framework3 software
BEFORE routing any audio signal to the output channels.
Single Loudspeaker System
Active Subwoofer
Active Subwoofer
K-framework3
Mixing console PC or MAC
or matrix
Signal Input Remote Control
Top loudspeakers
AES3
OUT
AES3
IN
2- or 4-pole speaker cable
SpeakON NL4
CH1 OUT:
SpeakON NL4
+1/–1
Smartphone
or Tablet
Speaker Output
