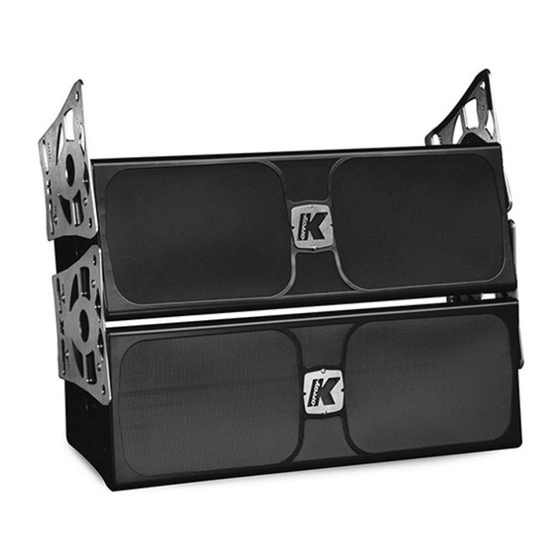

K-array KN6 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KN6 - KN10S
USER MANUAL -
english version
PRELIMINARY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KN6 and is the answer not in the manual?

Questions and answers

Related Manuals for K-array KN6

Summary of Contents for K-array KN6

  • Page 1 KN6 - KN10S USER MANUAL - english version PRELIMINARY...

  • Page 3: Symbols

    SYMBOLS K-array declares that this device is in compliance with the applicable CE standards and regulations. Before putting the device into operation, please observe the respect ive count ry-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling centre for such equipment.

  • Page 5: Table Of Contents

    8.1 AC POWER CONNECTOR 8.2 VOLTAGE REQUIREMENT 8.3 CURRENT REQUIREMENT 8.4 REAR PANEL 8.5 POWER CONNECTORS WIRING 8.6 AUDIO INPUT CONNECTORS WIRING 8.7 AMPLIFICATION AND PROTECTION CIRCUITRY 8.8 DSP 9. SERVICE 10. DISPERSION GRAPHS 11. KN6 TECHNICAL DETAILS 12. KN10 TECHNICAL DETAILS...

  • Page 7: Introduction

    The system is ideal for medium throw applications in theatres, concert halls, houses of worship and AV installations. KN6 uses two 6” Neodymium cone speakers with 2.5” voice coils for low-mid frequencies. The mid-high frequency section employs three 1” voice coil Neodymium compression drivers.

  • Page 8: Key Features

    2 years from the date of original purchase. During the warranty period K-array will, at it’s discretion, either repair or replace products which prove to be defective provided that the product is returned in its original packaging, shipping prepaid, to an authorized K-array service agent or distributor.

  • Page 9: Safety

    KN6 - KN10S 6. SAFETY WARNING • It is important that loudspeaker systems are used in a safe manner. • Professional loudspeakers are capable of producing extremely high sound levels and should be used with care. Hearing loss is cumulative and can result from levels above 90dB if people are exposed for an extended period.

  • Page 10: Physical

    KN6 - KN10S 7. PHYSICAL 3.5 cm 1.38” 50.5 cm 19.88” 19 cm 7.48” 19 cm 7.48” 3.5 cm 1.38” weight: 9 kg (19.84 lbs) 17.5 cm 6.89” 17.5 cm 6.89” 50.5 cm 19.88” rev.A...
  • Page 11 KN6 - KN10S KN10S 3.5 cm 1.38” 50.5 cm 19.88” 33.5 cm 13.19” 28 cm 11.02” 3.5 cm 1.38” 33.5 cm 3.5 cm 1.38” 13.19” 50.5 cm 19.88” weight: 17 kg (37.48 lbs) 33.5 cm 13.19” rev.A...

  • Page 12: Amplifier

    A higher voltage could seriously damage the device. 8.3 CURRENT REQUIREMENT The KN6/KN10S presents a dynamic load to the AC mains, which causes the amount of current to fluctuate between quiet and loud operating levels. Since different cables and circuit breakers heat up at varying rates, it is essential to understand the types of current ratings and how they correspond to circuit breaker and cable specifications.

  • Page 13: Rear Panel

    For best performance, the AC Cable voltage drop should not exceed 10% at 115V and 5% at 230V. The minimum electrical service amperage required by a K-array Skin system is the sum of their maximum continuous RMS current. We recommend allowing an additional 30% above the minimum amperage to prevent peak voltage drops at the service entry.

  • Page 14: Power Connectors Wiring

    KN6 - KN10S 8.5 POWER CONNECTORS WIRING The KN6/KN10S’s amplifiers receives DC power from the 3-pin blue PowerCon connector on their back panel. The white PowerCon connector is a parallel OUTPUT for supplying power to other devices (max 16A supported). When AC power is applied to the speaker, the auto-range power supply selects automatically the correct operating voltage.

  • Page 15: Amplification And Protection Circuitry

    8.7 AMPLIFICATION AND PROTECTION CIRCUITRY The KN6 and KN10S are powered by the a multi channel high power digital amplifier. KN6: 2 x 250W class D amplifier channel + 2 x 20W class A/B amplifier channel KN10S: 2 x 250W class D amplifier channel...
  • Page 16 KN6 - KN10S KN6 narrow KN6 wide KN6 narrow MD KN6 wide MD LINE ARRAY POINT SOURCE Spot Flood 10° 130° rev.A...
  • Page 17 KN6 - KN10S KN10S KN10S EXT KN10S 150Hz KN10S 150Hz EXT rev.A...

  • Page 18: Service

    9. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. They will direct you to the service centre. 2) If you are calling for service, have the serial number(s) of the unit(s) at hand for refe- rence.

  • Page 19: Dispersion Graphs

    10. DISPERSION GRAPHS IN HORIZONTAL POSITION 8 KHz 8 KHz HORIZONTAL VERTICAL 4 KHz 4 KHz 1 KHz 1 KHz 500 Hz KN6 - WIDE mode 500 Hz 250 Hz 250 Hz 90° 90° 120° 60° 120° 60° 150° 30°...

  • Page 20: Kn6 Technical Details

    11. KN6 TECHNICAL DETAILS Acoustics Power handling 2x250 + 3x20 w (AES) Maximum 2x500 + 3x40 w (EIAJ) amplifier power Impedance 2x4Ω + 3x16Ω Operating 45Hz - 19 KHz +/- 3dB (preset dependent) frequency range SPL 1W/1mt 96 dB (low) 104 dB (high)

  • Page 21: Kn10 Technical Details

    KN6 - KN10S 12. KN10 TECHNICAL DETAILS KN10S Acoustics Power handling 2 x 250 w (AES) Maximum amplifier power 2 x 500 w (EIAJ) Impedance 2 x 4 Ω Operating frequency range 30Hz - 150 Hz +/- 3dB (preset dependent)
  • Page 22 KN6 - KN10S APPROVAL K-array declares that this device is in compliance with the applicable CE standards and regulations. Before putting the device into operation, please observe the respect ive count ry-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling centre for such equipment.
  • Page 23 KN6 - KN10S rev.A...
  • Page 24 HP Sound Equipment s.r.l. Viale Roma 7/i - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com rev.A...

This manual is also suitable for:

Kn10s
