K-array Ko40 User Manual

Ko40 and ko70 are self-powered, sub bass speaker systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

KO70
USER'S MANUAL
English
REV. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ko40 and is the answer not in the manual?

Questions and answers

Related Manuals for K-array Ko40

Summary of Contents for K-array Ko40

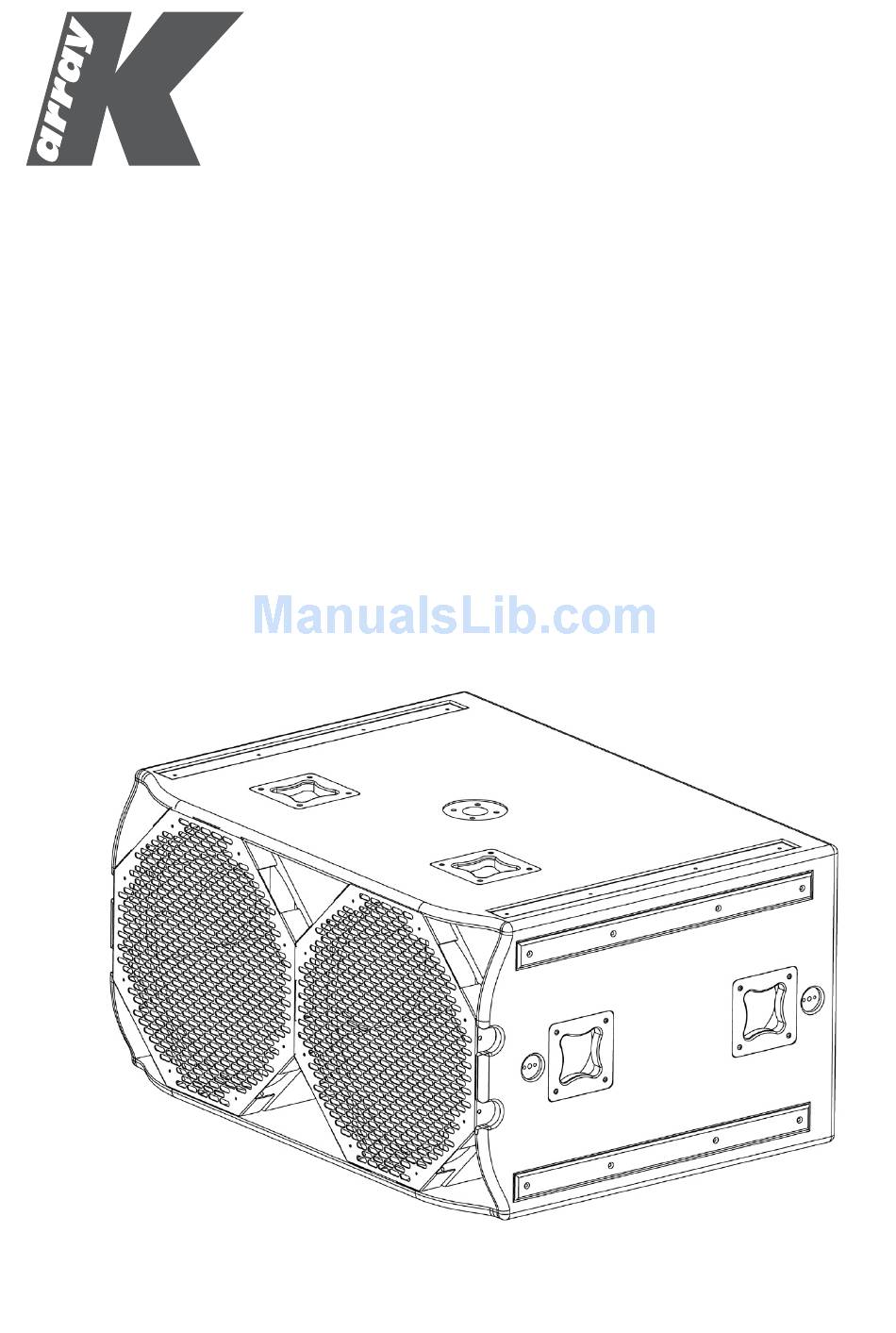

  • Page 1 KO70 USER’S MANUAL English REV. B...

  • Page 2: Table Of Contents

    KO70 CoNtENtS SYMBoLS 1. INtRoDUCtIoN 2. APPLICAtIoNS 3. KEY FEAtURES 4. UNPACKING 5. SAFEtY Safety and handling information 6. PHYSICAL 7. AMPLIFIER 7.1 AC PoWER CoNNECtoR 7.2 VoLtAGE REQUIREMENt 7.3 CURRENt REQUIREMENt 7.4 REAR PANEL 7.5 DSP CoNtRoL & REMotE CoNtRoL 7.6 CLoNER FUNCtIoN 7.7 Ko70 PRESEtS 7.8 AUDIo INPUt CoNNECtoR WIRING...

  • Page 3: Symbols

    KO70 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.

  • Page 4: Introduction

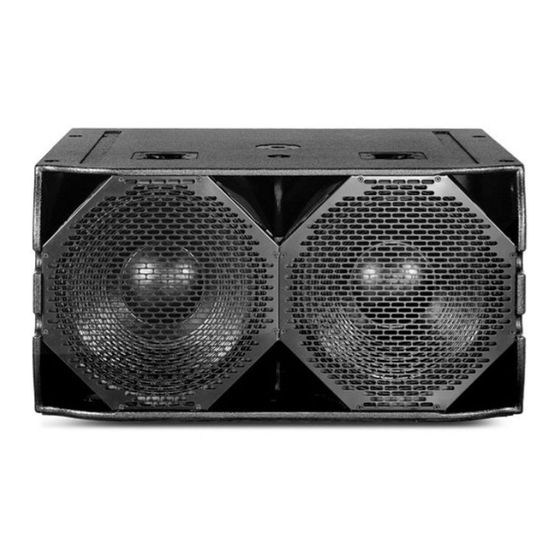

    KO70 1. INTRODUCTION The K-array Ko40 and Ko70 are self-powered, Sub Bass speaker systems. They are best suited for high-power extended bass response applications in arenas, theatres, concert halls, churches, and outdoor events. The 21” speakers employ neodymium magnets and 6” voice coils driven by powerful D-class amplifiers. The large ports are designed toa be fully symmetrical to the speakers, which means the back loading on the drivers is consistent and even with no port air turbulence.
  • Page 5 KO70 It is important that loudspeaker systems are used in a safe manner. Avoiding Hearing Damage. Professional loudspeakers are capable of producing extremely high sound levels and should be used carefully. Never stand close to loudspeakers driven at high volume. Set the volume to a safe level.
  • Page 6 KO70 this audio system is not intended for use in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control systems,or for any other uses where the failure of the audio system could lead to death, personal injury, or sever environmental damage. Do not make repairs yourself.

  • Page 7: Physical

    KO70 60 cm 23.62” 115 cm 45.27” 85 cm 33.46” weight: 78 kg (171,96 lbs) REV. B...

  • Page 8: Amplifier

    Before applying AC to any K-array self-powered speaker, be sure that the voltage potential difference between neutral and earth ground is less than 5 VAC.

  • Page 9: Rear Panel

    For best performance, voltage drops should not exceed 10% at 115V or 5% at 230V. The minimum electrical service amperage required by a K-array loudspeakers system is the sum of their maximum continuous RMS current. We recommend allowing an additional 30% above the minimum amperage to prevent peak voltage drops at the service entry.

  • Page 10: Dsp Control & Remote Control

    KO70 7.5 DSP CONTROL & REMOTE CONTROL The KO70 have a powerful DSP that manages all the functions of the speakers. Each system can store on board16 preset that can be recalled pushing the PRESEt button. once the preset will appear on the lower line of the display it will become automatically available after few seconds.

  • Page 11: Ko70 Presets

    KO70 7.7 KO70 PRESETS REV. B...

  • Page 12: Audio Input Connector Wiring

    8. CONFIGURATIONS If the device is not used as a stand-alone, K-array suggests some typical configurations which can be found in the Redline System Matrix manual. The manual packs of the portable Redline systems are included and available to...

  • Page 13: Specifications

    KO70 10. SPECIFICATIONS KO70 Acoustics Amplifiers Speakers power 3000 w (EAS) Type 2 modules class D - DSP controlled handling 3500 watts x 2 channels on 8 ohm (7000 Power Maximum power 8000 w watt total @8Ω Dynamic limiter, over current, over temp, Impedance 2 X 8Ω...

  • Page 14: Declaration Of Conformity

    KO70 11. DECLARATION OF CONFORMITY REV. B...
  • Page 15 UMCO70AA01ENB K-array s.r.l. unipersonale Via Paolina Romagnoli - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com...
