Kobra
KK52/KK102
USER'S MANUAL
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kobra KK52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for K-array Kobra KK52

Summary of Contents for K-array Kobra KK52

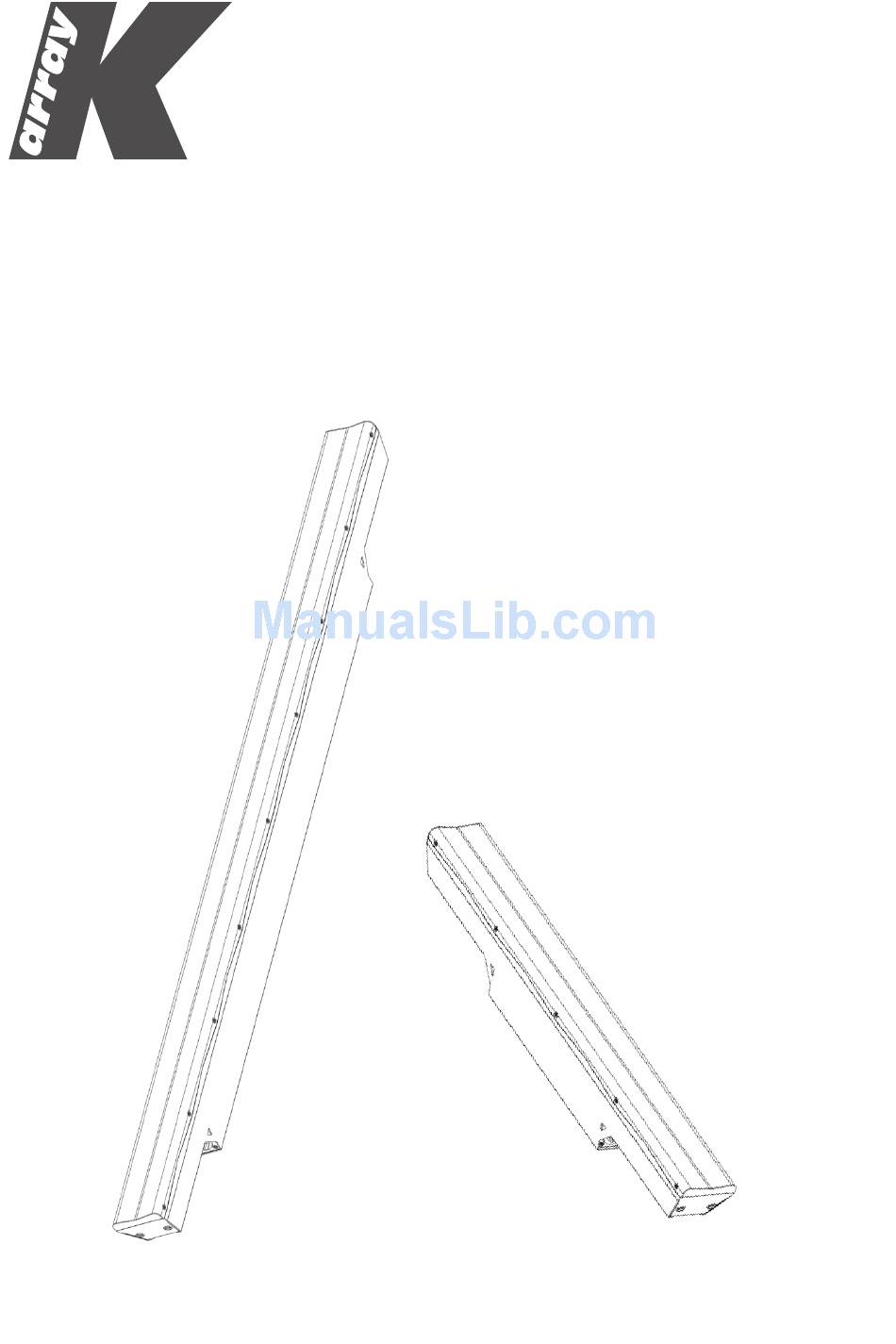

  • Page 1 Kobra KK52/KK102 USER’S MANUAL English...

  • Page 3: Table Of Contents

    KK52/KK102 Contents SYMBOLS 1. INTRODUCTION 2. APPLICATIONS 3. KEY FEATURES 4. UNPACKING 5. WARRANTY 6. SAFETY 7. PHYSICAL 8. REAR PANEL 9. COVERAGE 10. WIRING 11. PROTECTION CIRCUITRY 12. ACCESSORIES AND CONFIGURATIONS K-Base2 K-Fly2 K-Joint2 K-Wall2L K-Wall2 K-KCluster2 / K-PCluster2...
  • Page 4 KK52/KK102 REV. A...

  • Page 5: Symbols

    KK52/KK102 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.
  • Page 6 KK52/KK102 REV. A...

  • Page 7: Introduction

    For integration with other speakers or amplifiers, the KK52 and KK102 offer selectable impedance (16Ω/64Ω for the KK52 and 8Ω/32Ω for the KK102). Set to 64Ω up to eight KK52s can be powered via a single amplifier channel, simplifying installation of wider distributed installed systems.

  • Page 8: Unpacking

    KK52/KK102 4. UNPACKING Each K-array loudspeaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new loudspeaker. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment.

  • Page 9: Physical

    KK52/KK102 7. PHYSICAL KK52 5.9 cm 2.32” 50 cm 19.7” 12 cm 4.72” 8.1 cm 3.19” weight: 2.3 kg (5.07 lbs) REV. A...
  • Page 10 KK52/KK102 5.9 cm KK102 2.32” 2.75 cm 1.08” 100 cm 39.4” 12 cm 4.72” 2.75 cm 1.08” weight: 4.8 kg (10.58 lbs) 8.1 cm 3.19” REV. A...

  • Page 11: Rear Panel

    The KK52 is equipped with two screw holes, while the KK102 is equipped with four. Impedance switch. Selects the impedance of the speaker. Impedance must be set to high (64 Ω for KK52 and 32 Ω for KK102) when speakers are driven by KMT active modules. Low impedance may be used when speakers are driven by most KA series amplifiers (KA3, KA7, KA10).

  • Page 12: Coverage

    KK52/KK102 9. COVERAGE Img1: Flood coverage Img2: Spot coverage REV. A...
  • Page 13 KK52/KK102 Img3: Array - spot coverage Img4: Array - Downfill application REV. A...

  • Page 14: Wiring

    10. WIRING Kobra KK52 and KK102 internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a NL4 connector. 2+ and 2- pins, such as 1+ and 1-, are directly wired from one socket to the other, so signal can pass through multiple KK modules without additional external cabling.

  • Page 15: Accessories And Configurations

    KK52/KK102 12. ACCESSORIES AND CONFIGURATIONS K-array offers a variety of dedicated accessories to mount and interconnect KK (Kobra) and KP (Python) series speakers for a wide array of possible configurations. K-Base2 Standing accessory for KK/KP speakers. For proper installation and operation, use with K-Foot2 and K-Joint2.

  • Page 16: K-Fly2

    KK52/KK102 K-Fly2 Flying accessory set for KK/KP speakers. For proper installation and operation, use with K-Joint2. K-Joint2 WARNING Consult the dedicated product manual for safety information and operation details. K-Joint2 Attachable joint to link a KK/KP speaker to most accessories or to another KK/KP speaker with continuously variable angle (-10°...

  • Page 17: K-Wall2L

    KK52/KK102 K-Wall2L Wall / stand mounting accessory for KK/KP speakers with bi-dimensional tilting features. K-Wall2L is designed to be screwed directly to the mounting screw holes of KK/KP speakers. When used with KK102 it can be screwed to the internal or the external screw holes depending on the width of the desired angle.

  • Page 18: K-Kcluster2 / K-Pcluster2

    KK52/KK102 K-KCluster2 / K-PCluster2 Wall mounting accessory for a horizontal cluster of three KK52/102 speakers. K-KCluster 2 / K-PCluster 2 comes in a set of three different models: one with no angle between the three hanging speakers, one with a 30° angle between speakers, one with a 60° angle between speakers.

  • Page 19: K-Kstage2 / K-Pstage2

    KK52/KK102 K-KStage2 / K-PStage2 Ground laying accessories for KK/KP series speakers. K-KStage 2 / K-PStage 2 allow users to safely lay KK / KP series speakers on the ground with three different angles: 0°, 30° and 45°. Ideal applications are monitoring and front-fill.

  • Page 20: Specifications

    KK52/KK102 14. SPECIFICATIONS KK52 Acoustics Speakers power handling 200 W (AES) Max power 400 W Impedance 16Ω or 64Ω (selectable) Frequency range 150 Hz - 20 KHz. SPL 1W / 1mt 95 dB Maximum SPL 118 dB continuous - 124 dB peak...
  • Page 21 KK52/KK102 KK102 Acoustics Speakers power handling 400 W (AES) Max power 800 W Impedance 8Ω or 32Ω (selectable) Frequency range 150 Hz - 20 KHz. SPL 1W / 1mt 98 dB Maximum SPL 124 dB continuous - 130 dB peak...
  • Page 22 KK52/KK102 REV. A...
  • Page 23 KK52/KK102 The contents of this manual are furnished for informational purposes only. Hp Sound Equipment s.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. Hp Sound Equipment s.r.l. reserves the right to make modifications without prior notice.
  • Page 24 UMC029AA01ENA K-array s.r.l. unipersonale Via Paolina Romagnoli - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com...
  • Page 25 KMT12/KMT18 USER’S MANUAL English...
  • Page 26 KMT12/KMT18 REV. A...
  • Page 27 KMT12/KMT18 Contents SYMBOLS 1. INTRODUCTION 2. APPLICATIONS 3. KEY FEATURES 4. UNPACKING 5. WARRANTY 6. SAFETY 7. PHYSICAL 8. AMPLIFIER 8.1 AC POWER CONNECTOR 8.2 VOLTAGE REQUIREMENT 8.3 CURRENT REQUIREMENT 8.4 REAR PANEL 8.5 TOUCH SCREEN FUNCTIONS 8.6 AUDIO INPUT CONNECTOR WIRING 8.7 AMPLIFICATION AND PROTECTION CIRCUITRY 9.
  • Page 28 KMT12/KMT18 REV. A...

  • Page 29: Symbols

    KMT12/KMT18 SYMBOLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.
  • Page 30 KMT12/KMT18 REV. A...

  • Page 31: Introduction

    KMT18 feature multiple analog and digital outputs, including a Speakon output to connect a wide array of passive speakers including mid-high modules (KK52, KK102) or additional passive subwoofers (KMT12P or KMT18P). To optimize performance, the on-board DSP includes up to 40 programmable presets. The first 8 have been designed by K-array, the additional 32 slots can be used to create, save, and store personal presets using the K-framework software.

  • Page 32: Unpacking

    KMT12/KMT18 4. UNPACKING Each K-array loudspeaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new loudspeaker. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment.

  • Page 33: Physical

    KMT12/KMT18 7. PHYSICAL KMT12 33.5 cm 13.19” 32.5 cm 43.5 cm 12.91” 17.13” weight: 15.6 kg (34.39 lbs) REV. A...
  • Page 34 KMT12/KMT18 KMT18 47.5 cm 18.70” 61 cm 24.02” 46.5 cm 18.31” weight: 27.6 kg (60.85 lbs) REV. A...

  • Page 35: Amplifier

    KMT12/KMT18 8. AMPLIFIER 8.1 AC POWER CONNECTOR The amplifier module and any audio equipment connected to it (mixing consoles, processors, etc.) must be properly connected to the AC power distribution, preserving AC line polarity. All grounding points should be connected to a single node or common point, using the same cable gauge as the neutral and line cables. Bad grounding connections within an audio system can produce noise, hum and/or serious damage to the input/ output stages in the system’s electronic equipment.

  • Page 36: Rear Panel

    KMT12/KMT18 For best performance, voltage drops should not exceed 10% at 115V or 5% at 230V. The minimum electrical service amperage required by a K-array loudspeakers system is the sum of their maximum continuous RMS current. We recommend allowing an additional 30% above the minimum amperage to prevent peak voltage drops at the service entry.
  • Page 37 KMT12/KMT18 CH1 Line Input. XLR line level input with +4 dBu sensitivity. CH2 Mic/Line Input. XLR input, with selectable sensitivity for Mic (-30 dBu) or Line (+4 dBu). CH1 Parallel Line Out. XLR parallel output, providing a direct signal from the CH1 Line Input. This output cannot be processed or controlled via the K-Framework software.

  • Page 38: Touch Screen Functions

    KMT12/KMT18 8.5 TOUCH SCREEN FUNCTIONS HOME PAGE The main functions of the onboard DSP can be managed with the integrated touch screen. Functions are grouped into six pages, shown as icons on the Home page. To reach the Home page from any other page, touch the Home button.

  • Page 39: Audio Input Connector Wiring

    KMT12/KMT18 The Delay page allows users to independently set DELAY PAGE the delays for the speaker system (Subwoofer and Speaker Out). This delay is summed with the delays from the Routing pages of Subwoofer and Speaker Out. The COARSE and FINE controls allow users to change the delay in larger and smaller steps.

  • Page 40: K-Framework

    KMT12/KMT18 9. K-Framework 9.1 SYSTEM REQUIREMENTS SYSTEM REQUIREMENTS: Operating System: Windows XP / Vista / 7 CPU: Intel Pentium Dual Core Memory: 2 GB REQUIRED COMPONENTS: Microsoft .NET Framework 4: http://www.microsoft.com/download/en/details.aspx?id=17718 Microsoft Visual C++ 2010 Redistributable Package (x86): http://www.microsoft.com/download/en/details.aspx?id=5555 Microsoft Visual C++ 2010 Redistributable Package (x64): http://www.microsoft.com/download/en/details.aspx?id=14632 9.2 INSTALLATION AND SET UP To download your free K-Framework software, please navigate to the K-array “Software Download”...
  • Page 41 KMT12/KMT18 When asked to allow the online search, select “Not now” and click “Next.” When asked for the driver’s location, select “Install from a list or specific location.” In the search and installation options window, select “Search for the best driver in this location” and check the “Include this location in the search”...
  • Page 42 KMT12/KMT18 At startup K-Framework will show the following window: img. A Connected Devices Indicator shows the number of detected connected devices. N.B.: At startup, the indicator will show 0 devices, even if one or more units are connected. To detect all connected devices, click the “Connect” button (A2).

  • Page 43: User Tabs

    KMT12/KMT18 img. B Connected Device Name. Device Menu Button shows and hides the device menu. Device Menu displays the basic information about the device and the shortcuts to open all available Editing Tabs. 9.3 USER TAbS: HOME img. C From the Home window, users can access the dedicated tabs, which follow the signal flow from input stage to output stage.

  • Page 44: Input Tab

    KMT12/KMT18 INPUT TAb Allows users to independently manage the EQ and gain of the four input channels. img. D Frequency response display. Shows the frequency response curve resulting from the filters set in the Input EQ window (below). Input EQ window button. Opens the Input EQ window, where users can set three parametric filters for each input channel. Input Volume buttons.

  • Page 45: Routing Tab

    KMT12/KMT18 ROUTING TAb Routing switch button. When lighted, the signal coming from the corresponding input on the left column is routed to the corresponding output on the top row. img. E DELAY TAb Allows users to independently manage the delay applied to the three output channels. img.

  • Page 46: Output Tab

    KMT12/KMT18 OUTPUT TAb Allows users to independently manage the EQ, polarity, gain and limiting threshold of the three output channels. G4 G5 img. G Frequency response display. Show the frequency response curve resulting from the filters set in the Input EQ window. Output EQ window button.

  • Page 47: Service

    KMT12/KMT18 10. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Customer Service, and be prepared to describe the problem clearly and completely.

  • Page 48: Specifications

    KMT12/KMT18 11. SPECIFICATIONS KMT12 Acoustics Remote control Input Speakers power 700 w (EAS) Connectors 1 male + 1 female XLR parallel handling 1 USB B Jack serial converter Maximum power 1200 w Power Input Impedance 8Ω Connectors 2 x PowerCon IN/OUT Frequency range 40Hz - 150 Hz +/- 3dB (preset dependent) Amplifiers SPL 1W/1mt...

  • Page 49: Audio Input

    KMT12/KMT18 KMT18 Acoustics Remote control Input Speakers power Connectors 1 male + 1 female XLR parallel 800 w (EAS) handling 1 USB B Jack serial converter Maximum power 1400 w Power Input Impedance 8Ω Connectors 2 x PowerCon IN/OUT Frequency range 30Hz - 150 Hz +/- 3dB (preset dependent) Amplifiers SPL 1W/1mt 99 dB...

  • Page 50: Declaration Of Conformity

    KMT12/KMT18 12. DECLARATION OF CONFORMITY Manufacturer/Importer: K-array srl unipersonale Brand: K-ARRAY Address: via Paolina Romagnoli - 50037 S. Piero a Sieve Firenze ITALY Date of Issue: 10 / 01 / 2012 Model Code: KMT12 / KMT18 Declaration: Complies with essential protection requirements of Council Directive 89/336/EEC on the approximation of the Lows of the Member States relating to electromagnetic compatibility.
  • Page 51 KMT12/KMT18 The contents of this manual are furnished for informational purposes only. Hp Sound Equipment s.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. Hp Sound Equipment s.r.l. reserves the right to make modifications without prior notice.
  • Page 52 UMC031AA01ENA K-array s.r.l. unipersonale Via Paolina Romagnoli - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com...
