K-array Pinnacle-KR II Assembly Manual page 11

A B

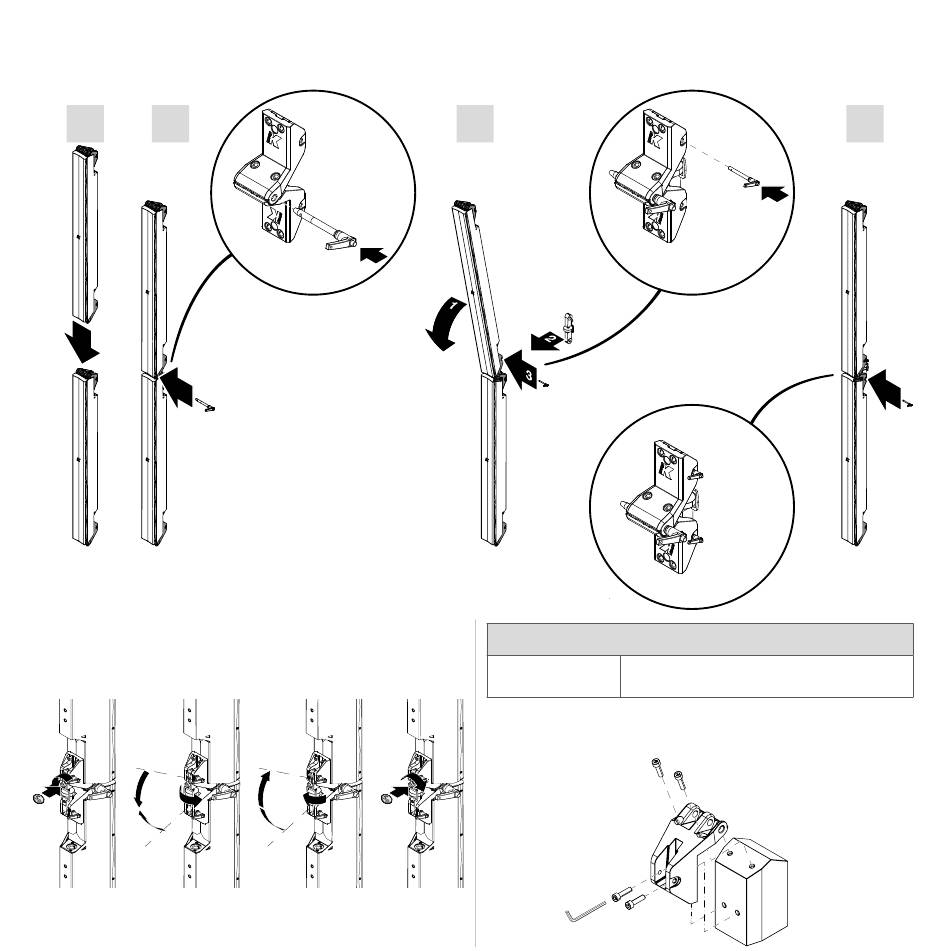

The K-JOINT3 provides fine adjustment of the tilting angle of
the loudspeakers to control the system directivity.
Loose the Rotate the wheel in order to change the
locking screw joint angle and tilt the loudspeakers
C
Ground Stack
K-FOOT3
How to assembly the K-JOINT3 hinge arm to the K-FOOT3.
Tightening
sequence
Tighten the
locking screw
4 mm hex key
Pinnacle-KR
Assembly Manual
Adapter for standing loudspeakers on top of
Thunder sub
1
3
4
2
D
5
