Pinnacle-KR
Assembly Manual
Pinnacle-KR802 II

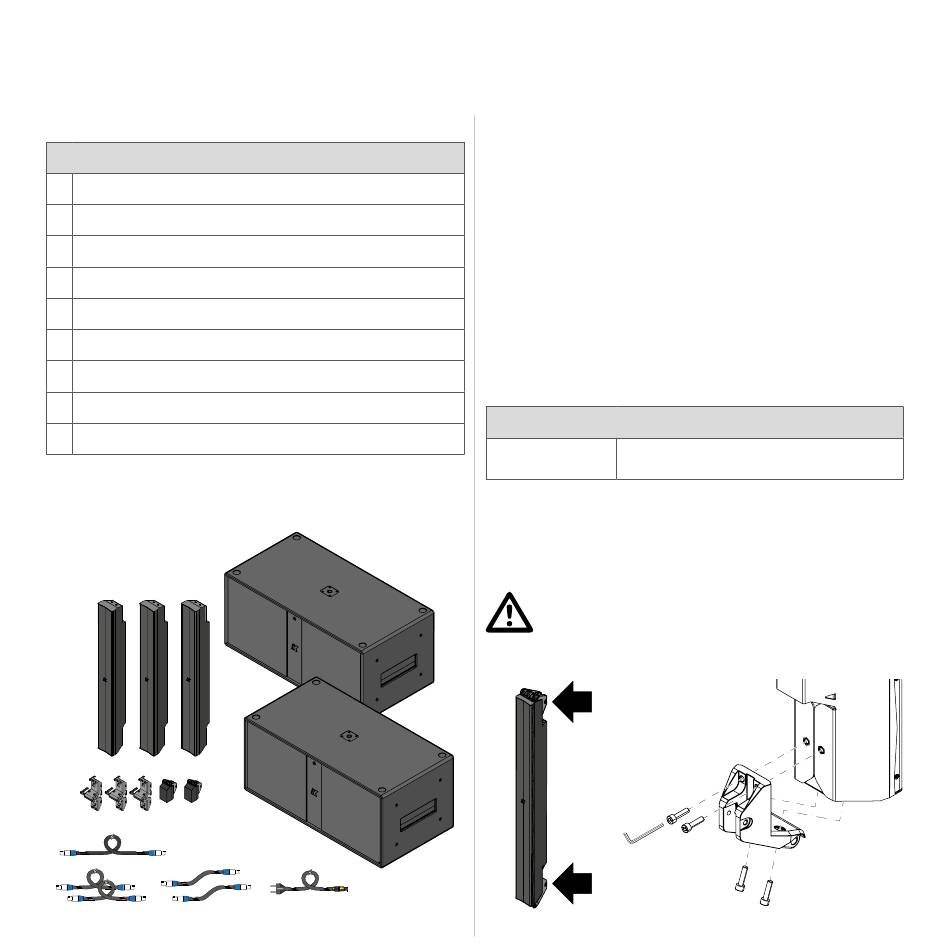

Bill of material
4 Kayman-KY102 I Stainless steel meter-long line array element with 4" drivers
1 Thunder-KS4 I multi-tasking 2x18" self-powered subwoofer
1 Thunder-KS4P I 2x18" passive subwoofer
2 K-FOOT3 Adapter for standing loudspeakers on top of Thunder sub
4 K-JOINT3 Joining hardware to connect Python loudspeakers
1 K-SPKCABLE15 4-pole speaker cable with SpeakON NL4, 15 m (49 ft)
2 K-SPKCABLE2 4-pole speaker cable with SpeakON NL4, 2 m (6.5 ft)
2 K-SPKCABLE235 4-pole joint cable with SpeakON NL4, 22,5 cm (9 in)
1 Power cable with PowerCON TRUE
4

Assembling instructions

The perfect sound reinforcement system tailors both the
listening expectation and the aesthetics and architectural
constraints.
The Pinnacle-KR systems are designed to give the sound
engineer and integrators unparalleled scalability and elegant
solutions matching any application with the dedicated
custom loudspeaker configurations.
Few rules shall be followed in order to select the proper
accessories and assembly a Pinnacle-KR bundle.
Joint
Joining hardware to connect, fly or affix the
K-JOINT3
loudspeakers
The new K-JOINT3 is a unique hardware purposed to connect,
fly or affix the loudspeakers in line array configurations or to
other hardware, such as the K-FLY3 fly bar or the K-FOOT3
ground stack joint.
Use one K-JOINT3 per loudspeaker.
4 mm hex key
2
4
3
Tightening
1
sequence
