Motorised Test Stand
Operating Instructions
It is essential that you
familiarise yourself with the
contents of these instructions
before attempting to
operate the Vortex
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mecmesin Vortex
Summary of Contents for Mecmesin Vortex
- Page 1 S.I. Instruments 256 South Rd. Hilton South Australia 5033 Ph (08) 8352 5511 Vortex info@si-instruments.com www.si-instruments.com Motorised Test Stand Operating Instructions It is essential that you familiarise yourself with the contents of these instructions before attempting to operate the Vortex...
- Page 2 If any damage is evident, or if any of the items in Appendix 1 are missing, please notify Mecmesin or their Authorised Agent immediately. We strongly recommend that all the packaging and fixings are retained for any future transit requirements.
- Page 3 VORTEX FUNCTIONALITY Speed Setting The Vortex has a variable speed control which should be referenced against the speed and rotation display. It is advisable to perform a speed check prior to the actual test to ensure that the correct speed has been selected.
- Page 4 Mecmesin’s graphical charting software ‘DataPlot’ can be used in conjunction with the Vortex via connection to the 9 way connector on the rear of the Vortex or directly via the AFTI. Please contact Mecmesin sales on 01403 799979 for available cable and software...
- Page 5 Calibration temperature 20˚c ± 2˚c Should you require any variation on the standard specification please contact Mecmesin Sales on 01403 799979 or your local supplier for optional variations. Please note that Mecmesin reserves the right to alter equipment specifications without prior notice.
- Page 6 Connecting a mains powered test frame to the wrong supply will almost certainly cause extensive damage to the equipment. The Mecmesin test frames must only ever be connected to a mains power installation that has a fully installed earthing system.
- Page 7 TO ENSURE CONTINUED SAFE USE CAUTION: Hands must be kept clear of the adjustable base fixture at all times during machine operation LIFTING INSTRUCTIONS: Before attempting to lift the Vortex, turn off the power switch and unplug from the mains.

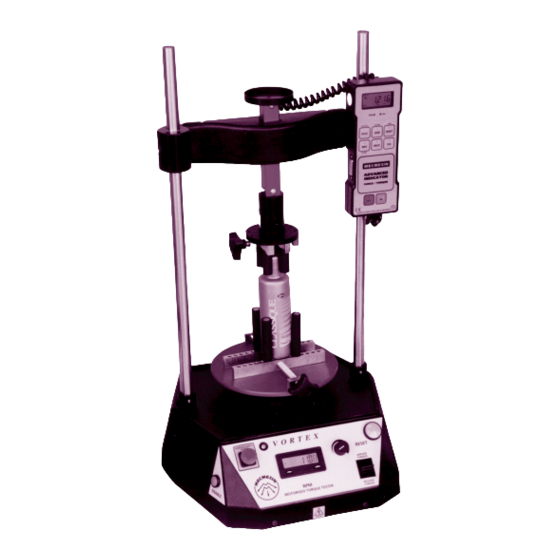

- Page 8 Vortex Motorised Torque Tester Key: Top platten AFTI Display Adjustable column Static torque transducer Movable crosshead Base fixture Thumbscrews (2) Reset button Top fixture Speed setting Emergency stop Speed and rotation display Enable button Direction control...
