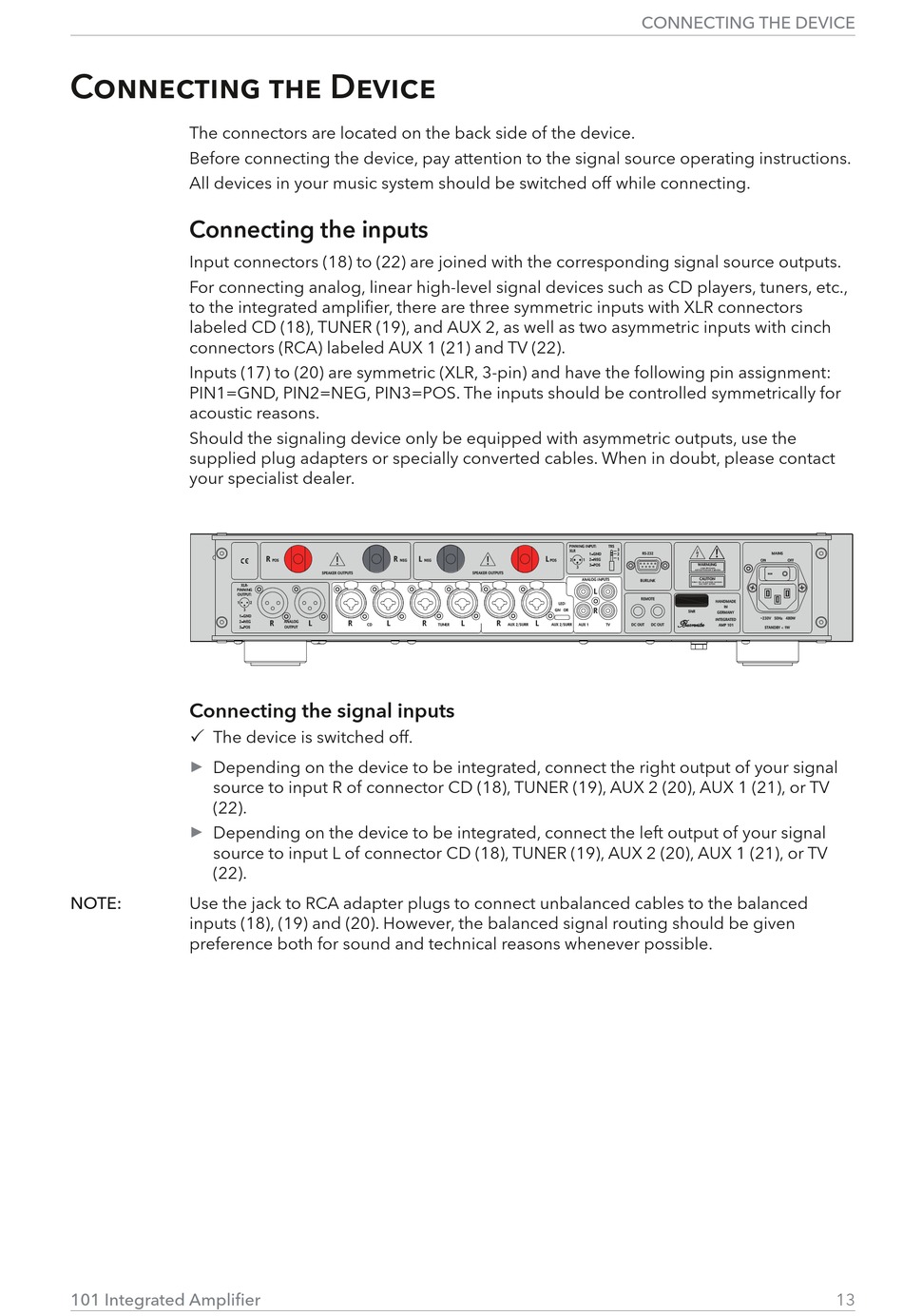

Connecting the Device
The connectors are located on the back side of the device .
Before connecting the device, pay attention to the signal source operating instructions .
All devices in your music system should be switched off while connecting .
Connecting the inputs
Input connectors (18) to (22) are joined with the corresponding signal source outputs .
For connecting analog, linear high-level signal devices such as CD players, tuners, etc .,
to the integrated amplifier, there are three symmetric inputs with XLR connectors
labeled CD (18), TUNER (19), and AUX 2, as well as two asymmetric inputs with cinch
connectors (RCA) labeled AUX 1 (21) and TV (22) .
Inputs (17) to (20) are symmetric (XLR, 3-pin) and have the following pin assignment:
PIN1=GND, PIN2=NEG, PIN3=POS . The inputs should be controlled symmetrically for
acoustic reasons .
Should the signaling device only be equipped with asymmetric outputs, use the
supplied plug adapters or specially converted cables . When in doubt, please contact
your specialist dealer .
Connecting the signal inputs
The device is switched off .
►
Depending on the device to be integrated, connect the right output of your signal
source to input R of connector CD (18), TUNER (19), AUX 2 (20), AUX 1 (21), or TV
(22) .
►
Depending on the device to be integrated, connect the left output of your signal
source to input L of connector CD (18), TUNER (19), AUX 2 (20), AUX 1 (21), or TV
(22) .
note:
Use the jack to RCA adapter plugs to connect unbalanced cables to the balanced
inputs (18), (19) and (20) . However, the balanced signal routing should be given
preference both for sound and technical reasons whenever possible .
101 Integrated Amplifier
connectIng the DevIce
13
