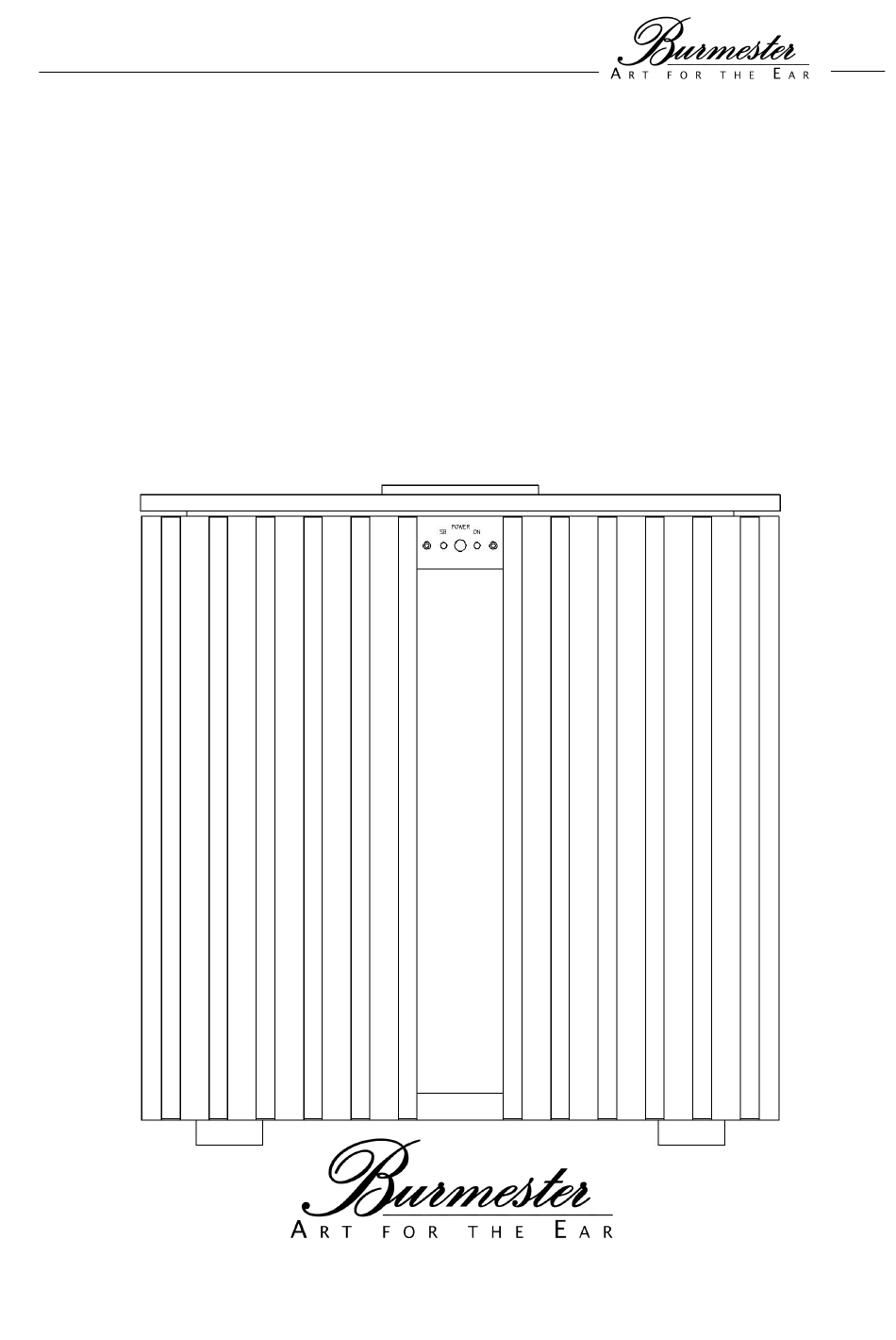

- Page 1 REFERENCE LINE POWER AMP 909 MK5 HIGH END MADE IN GERMANY BURMESTER AUDIOSYSTEME GMBH • WILHELM-KABUS-STRAßE 47 • 10829 BERLIN • GERMANY FON +49/(0)30/78 79 68 – 0 • FAX +49/(0)30/78 79 68 – 68 • E-MAIL: mail@burmester.de • www.burmester.de...
- Page 2 VERSION 1.2 FROM March 24 , 2011...
- Page 3 Dear Audiophile, Thank you for choosing this Burmester audio component. We sincerely appreciate your trust in us. You have purchased a unit which excels in musical fidelity and combines uncompromising manufacturing quality with technical innovation and the highest degree of operating flexibility.
-
Page 4: Table Of Contents
C O N T E N T S UNPACKING and SET-UP POSITION VIEWS OF UNIT CONNECTING OPERATING CONTROLS PROTECTIVE CIRCUITS WIRING DIAGRAMS STEREO operation MONO operation BI-AMPING operation GENERAL INSTRUCTIONS 9-10 TECHNICAL DATA... - Page 5 UNPACKING and SETTING UP CAUTION: The power amp 909 is very heavy. To avoid injuries while unpacking it is suggested that only personnel with experiences in heavy weights unpack the units. CAUTION: The unit is shipped inside a plastic protective cover. Make sure that children do not play with it to avoid the danger of suffocation.
-
Page 6: Views Of Unit
VIEWS OF UNIT FRONT VIEW (1) STAND BY LED (3) POWER LED (2) POWER button (4) ERROR display... - Page 7 REAR VIEW (5) Input, right channel (11) AC mains input (6) REMOTE output (12) Loudspeaker output, left channel, negative (7) Loudspeaker output, right channel, positive (13) Loudspeaker output, left channel, positive (8) Loudspeaker output, right channel, negative (14) REMOTE input (9) AC mains switch (15) Input, left channel (10) Fuse carrier...
-
Page 8: Connecting
Remote Connecting REMOTE OUT (6) to the corresponding REMOTE IN-jack of another BURMESTER-unit offers to switch on or off this other unit simultaneous by the 909. In this case, the 909 has the master function. Connecting REMOTE IN (14) to the corresponding REMOTE OUT-jack of another BURMESTER-unit offers to switch on or off the 909 simultaneous by the other unit. -
Page 9: Operating Controls
OPERATING CONTROLS The operating controls are located on the front panel except for the AC mains switch. AC mains switch The AC mains switch (9) is located on the rear panel and connects the 909 from the AC supply when it is switched to ON. When it is set to OFF the unit is completely disconnected and the LEDs on the front panel remains dark. -
Page 10: Wiring Diagrams
WIRING DIAGRAMS STEREO operation In STEREO mode each channel will be connected with the corresponding channel of the stereo signal. To use the 909 in STEREO mode make the following connections: input, right channel positive loudspeaker binding post, right channel negative loudspeaker binding post, right channel (15) input, left channel... -
Page 11: Mono Operation
MONO operation In MONO mode a MONO adapter is required which is available on request at your local dealer. To use the 909 in MONO mode make the following connections: MONO adapter, red side positive loudspeaker binding post not connected (15) MONO adapter, blue side (13) -
Page 12: Bi-Amping Operation
BI-AMPING operation In BI-AMPING mode a BI-AMPING adapter is required which is available on request at your local dealer. To use the 909 in BI-AMPING mode make the following connections: BI-AMPING adapter, red side positive loudspeaker binding post, high/mid negative loudspeaker binding post, high/mid (15) BI-AMPING adapter, blue side (13) -
Page 13: General Instructions
We supply custom-made balanced as well as unbalanced interconnect cables and speaker cables of any length to ensure highest-quality signal paths for our components. The impedance of our cables is ideally matched to all BURMESTER components. For the cleanest power supply we recommend our triple-shielded power cord BURMESTER- POWER. Heat development Be careful when touching the housing –... - Page 14 Lightening strikes During the summer months, malfunctions often occur due to voltage spikes in the power lines after lightning strikes. Completely unplugging the power cord offers the only effective protection. Merely switching the unit off does not suffice since voltage spikes are able to arc over separated contacts.
-
Page 15: Technical Data
TECHNICAL DATA Dimensions Width x Height x Depth 482 x 500 x 485mm (19.0 x 19.7 x 19.1 inches) Weight app. 80kg (app. 176 lbs) Mains voltage and fuses for 200V – 254V 50/60Hz F1, F3: slow 2.5A E F2, F4: slow 1.0A E Unit fuse 2x slow 16A E...
