Burmester 082 Owner's Manual

Classic line
Hide thumbs

Advertisement

Table of Contents

OWNER´S MANUAL
CLASSIC LINE

INTEGRATED AMPLIFIER

082
HIGH END MADE IN GERMANY
BURMESTER AUDIOSYSTEME GMBH • WILHELM-KABUS-STRAßE 47• 10829 BERLIN • GERMANY
TEL ++49/(0)30/78 79 68 – 0 • FAX ++49/(0)30/78 79 68 – 68 • E-MAIL: mail@burmester.de • www.burmester.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 082 and is the answer not in the manual?

Questions and answers

Related Manuals for Burmester 082

Summary of Contents for Burmester 082

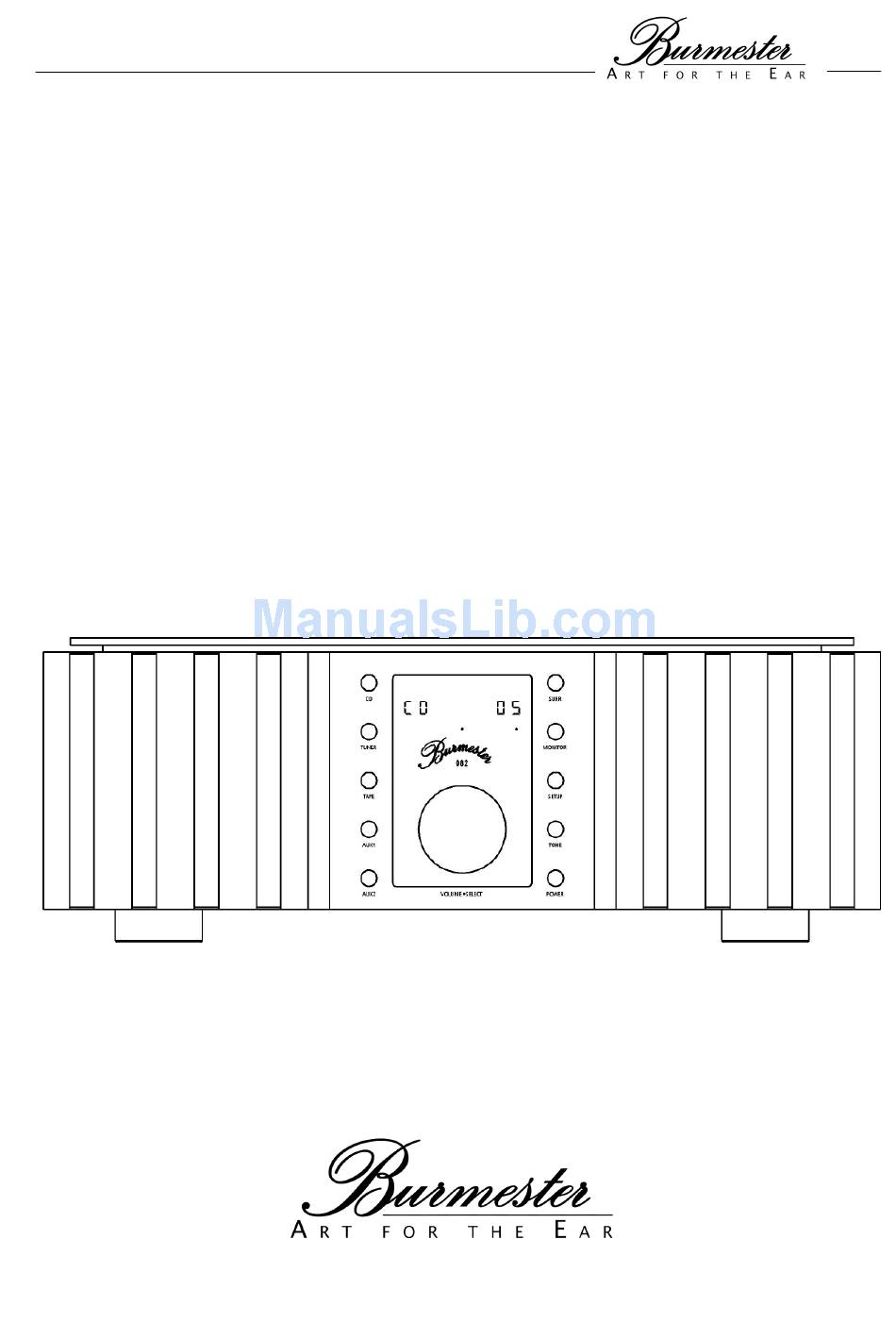

  • Page 1: Integrated Amplifier

    OWNER´S MANUAL CLASSIC LINE INTEGRATED AMPLIFIER HIGH END MADE IN GERMANY BURMESTER AUDIOSYSTEME GMBH • WILHELM-KABUS-STRAßE 47• 10829 BERLIN • GERMANY TEL ++49/(0)30/78 79 68 – 0 • FAX ++49/(0)30/78 79 68 – 68 • E-MAIL: mail@burmester.de • www.burmester.de...
  • Page 2 VERSION: 1.1 from OCTOBER 1 2010...
  • Page 3 Dear Audiophile, Thank you for choosing this Burmester audio component. We sincerely appreciate your trust in us. You have purchased a unit which excels in musical fidelity and combines uncompromising manufacturing quality with technical innovation and the highest degree of operating flexibility.

  • Page 4: Table Of Contents

    C O N T E N T UNPACKING AND SETTING UP FUNCTIONAL OVERWIEW OF FRONT AND REAR PANEL CONNECTIONS OPERATING CONTROLS REMOTE CONTROL THE SETUP MENU ERROR PROTECTION BURLINK GENERAL INSTRUCTIONS 10 - 11 TECHNICAL SPECIFICATIONS...

  • Page 5: Unpacking And Setting Up

    CAUTION: The integrated amplifier 082 is very heavy. To avoid injury during unpacking and set-up, this should only be done by persons who are accustomed to handling such weights. The integrated amplifier 082 is shipped inside a plastic protective cover. Make sure that children do not play with it to avoid the danger of suffocation.

  • Page 6: Functional Overwiew Of Front And Rear Panel

    (10) TONE button for activating/deactivating the (5) INPUT button for SURROUND input tone control or the tone control setup (6) MONITOR button for tape monitoring (11) SETUP button for configuring the 082 REAR PANEL (12) SURROUND input balanced (21) Loudspeaker terminal right, positive...

  • Page 7: Connections

    CAUTION: Before connecting the unit, please check if the input voltage of the 082 is equal to the local voltage of your wall outlet. Make sure the ground lead in your power outlet is working correctly. A missing or faulty ground is extremely dangerous! In case of doubt contact a licensed electrician.

  • Page 8: Connections

    REMOTE Connecting DC OUT (25) to the corresponding DC IN-jack of another BURMESTER-unit offers to switch on or off this other unit simultaneously by the 082. In this case, 082 has the master function. Connecting DC IN (27) to the corresponding DC OUT-jack of another BURMESTER-unit offers to switch on or off the 082 simultaneously by the other unit.

  • Page 9: Operating Controls

    In standby mode only the standby LED (2) lights up. After switching on the 082, the safety monitoring system takes a few seconds to check all functions. The speaker terminals and preamp outputs are enabled only, if no errors are detected.

  • Page 10: Remote Control

    (4) will go out. REMOTE CONTROL The 067 remote control is delivered with the 082. By definition the buttons POWER, TUNER, TAPE, SURR, AUX, have the same functions as the corresponding control buttons on the front panel of the amplifier 082.

  • Page 11: The Setup Menu

    Volume This menu item allows you to preset the volume level, when the 082 is switched on. The setting L represents LAST, which means that when you switch on the 082, it starts at the same volume level it was last playing before it was switched off.

  • Page 12: Error Protection

    ERROR PROTECTION The integrated amplifier 082 offers a sophisticated error mounting system, which protects the unit as well as the connected loudspeakers from damage, should certain errors occur. If any of the following errors occurs, the loudspeaker relays are automatically switched off and the type of error is indicated in the display (3).

  • Page 13: Burlink

    WINDOWS 2000 or WINDOWS XP operating system. COMMANDS Following the possible commands to control the integrated amplifier 082 are listed. All commands needs to be sent in capital letters finished with a “carriage return“ \r . POWON\r...

  • Page 14: General Instructions

    For the cleanest power supply we recommend our triple-shielded power cord BURMESTER- POWER. IR receiver The IR receiver receives signals from the BURMESTER remote control and must not be covered up by objects. Heat development Be careful when touching the housing – it may get quite warm during operation.
  • Page 15 Lightening strike During the summer months, malfunctions often occur due to voltage spikes in the power lines after lightning strikes. Completely unplugging the power cord offers the only effective protection. Merely switching the unit off does not suffice since voltage spikes are able to arc over separated contacts.

  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS Dimensions 482 x 177 x 482 mm Width x Height x Depth (19.0 x 7.0 x 19.0 inches) Weight 23.5 kg (51.7 lbs) Mains voltage and fuses 230V 50/60Hz 2 x slow 250mA E, 2 x slow A E 2 x slow 500mA E, 2 x slow A E 115V 50/60Hz Power consumption...
