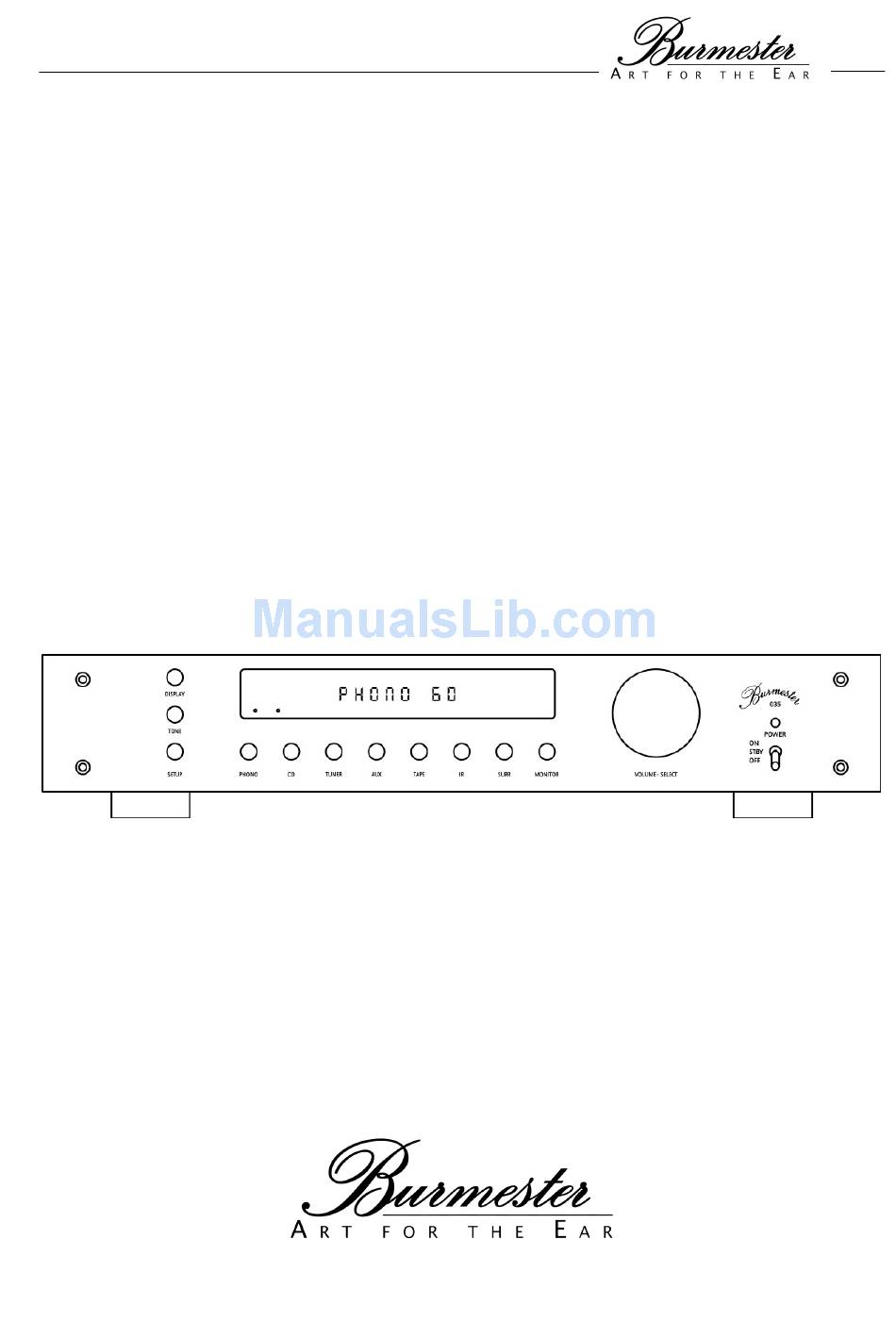

- Page 1 OWNER´S MANUAL PRE AMPLIFIER HIGH END MADE IN GERMANY BURMESTER AUDIOSYSTEME GMBH • WILHELM-KABUS-STRAßE 47 • 10829 BERLIN • GERMANY FON +49/30/78 79 68 – 0 • FAX +49/30/78 79 68 – 68 • E-MAIL: mail@burmester.de • www.burmester.de...
- Page 2 VERSION: 1.2 from September 29 2010...
- Page 3 Dear Audiophile, Thank you for choosing this Burmester audio component. We sincerely appreciate your trust in us. You have purchased a unit which excels in musical fidelity and combines uncompromising manufacturing quality with technical innovation and the highest degree of operating flexibility.
-
Page 4: Table Of Contents
C ON T E N T S UNPACKING AND SETTING UP FUNCTIONAL OVERWIEW OF FRONT AND REAR PANEL CONNECTIONS OPERATING CONTROLS SETUP MENU TONE CONTROLS REMOTE CONTROL BURLINK GENERAL INSTRUCTIONS TECHNICAL SPECIFICATIONS... -
Page 5: Unpacking And Setting Up
UNPACKING AND SETTING UP CAUTION: The pre amplifier 035 is shipped inside a plastic protective cover. Make sure that children do not play with it to avoid the danger of suffocation. Unpacking To avoid damaging the housing please do not use pointed or sharp tools to open the box. -
Page 6: Functional Overwiew Of Front And Rear Panel

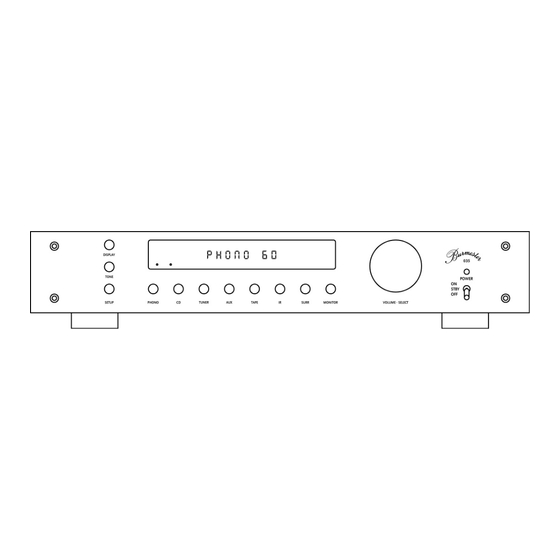

FUNCTIONAL OVERVIEW FRONT PANEL (1) DISPLAY button for dimming of display (9) Input select button CD (2) TONE button for activating, deactivating and (10) Input select button TUNER (11) Input select button AUX adjusting the tone control (3) TONE LED lights up, when tone control is activated (12) Input select button TAPE (4) STANDBY LED illuminates in standby mode (13) IR receiver for remote control... -
Page 7: Connections
CAUTION: Before connecting the unit please check if the input voltage of the 035 is equal to the local voltage of your wall outlet. Make sure the ground lead in your power outlet is working correctly. A missing or faulty ground is extremely dangerous! In case of doubt contact a licensed electrician. - Page 8 The pinning of the SURROUND input is: PIN1=GND, PIN2=NEG, PIN3=POS. PREAMP outputs For the connection of power amps or active loudspeakers the pre amplifier 035 provides two pairs of output jacks: OUTPUT BALANCED (27) and OUTPUT UNBAL(anced) (28). These outputs provides the signal of the selected input PHONO, CD, TUNER, AUX, TAPE or SURROUND.
- Page 9 REMOTE Connecting DC OUT (23) to the corresponding DC IN-jack of another BURMESTER-unit offers to switch on or off this other unit simultaneous by the 035. In this case, 035 has the master function. Connecting DC IN (24) to the corresponding DC OUT-jack of another BURMESTER-unit offers to switch on or off the 035 simultaneous by the other unit.
-
Page 10: Operating Controls
In operating mode (ON) the POWER LED (17) lights up and all functions of the pre amplifier are activated. PLEASE NOTE: Always switch off the 035 with the POWER switch first before bringing the AC mains switch into OFF position. -
Page 11: Setup Menu
SETUP MENU The SETUP menu of the pre amplifier 035 allows the easy programming of certain basic settings as well as a host of special functions. NOTICE: While the SETUP menu is active the VOLUME knob (6) on the front panel of the 035 serve to change the settings of the various menu items. - Page 12 Loading of factory settings DEFAULT ok! Volume This menu item allows you to preset the volume level when the 035 is switched on. Input level The input level adjustment feature serves to avoid big jumps in volume when switching between signal sources with different output levels.
-
Page 13: Tone Controls
LED (3) will go out. REMOTE CONTROL The 067 remote control is delivered with the 035. By definition the keys on the remote control labeled POWER, TUNER, PHONO, TAPE, AUX, SURR have the same functions as the corresponding control buttons on the front panel of the pre amplifier 035. -
Page 14: Burlink
System requirements for using the USB software are either WINDOWS 2000 or WINDOWS XP operating system. COMMANDS Following are listed the possible commands to control the preamplifier 035. All commands needs to be sent in capital letters finished with a “carriage return“ \r . -
Page 15: General Instructions
The fuses are located inside the unit and should be changed only by a qualified technician. Voltage Check before operating the 035 to see if the voltage setting shown on the back panel below the AC mains input conforms to voltage of your household power supply. Any change should only be done by an expert. -
Page 16: Technical Data
TECHNICAL DATA Dimensions 482 x 95 x 340mm Width x Height x Depth (19.0 x 3.7 x 13.4 inches) Weight 6.7kg (14.7 lbs) Mains voltage and fuses for 200V – 254V 50Hz/60Hz 2 x 250mA E/slow for 100V – 127V 50Hz/60Hz 2 x 500mA E/slow Power consumption STBY...
