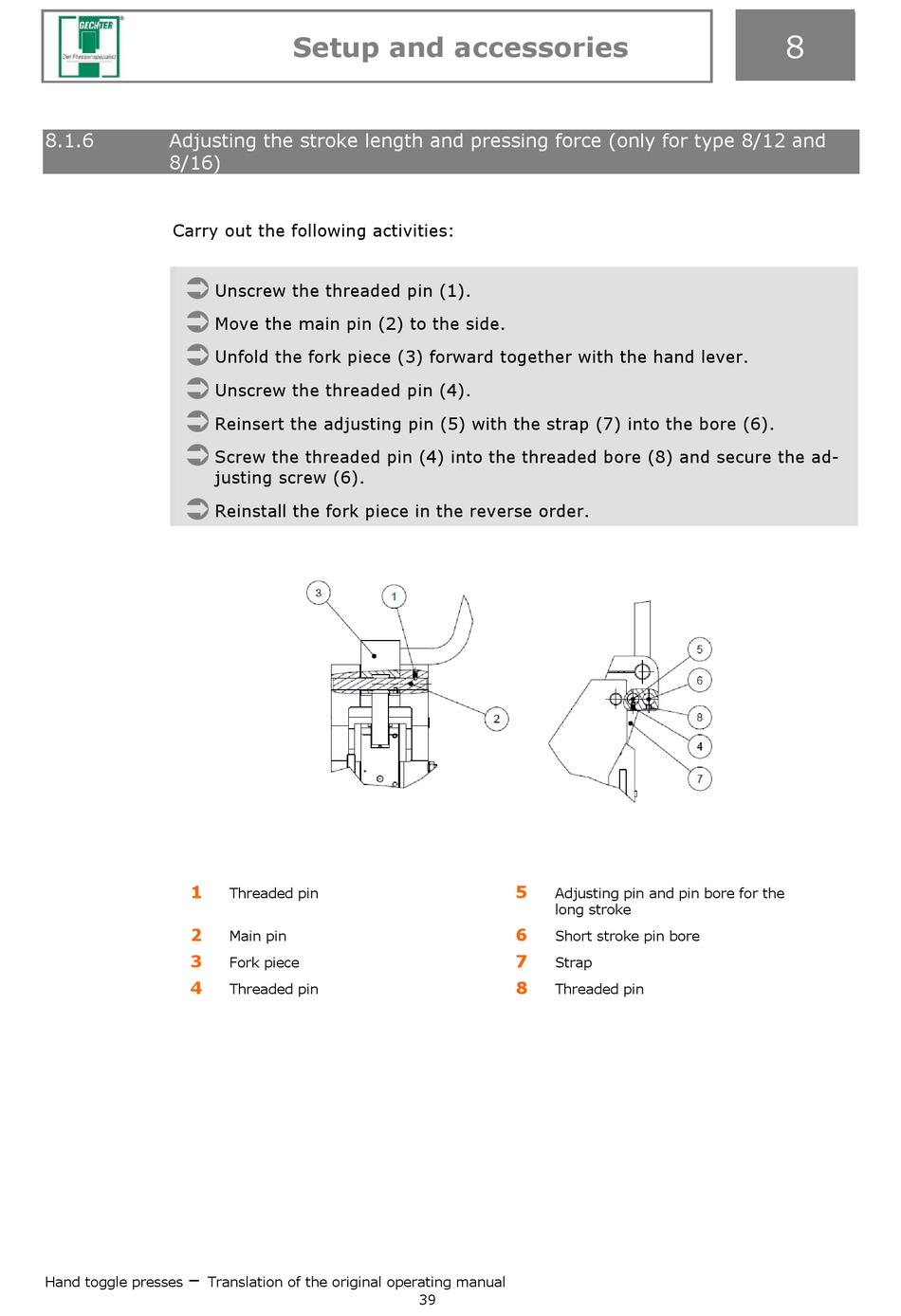

Adjusting The Stroke Length And Pressing Force (Only For Type 8/12 And 8/16) - Gechter HKPE Series Translation Of The Original Operating Manual

8.1.6 Adjusting the stroke length and pressing force (only for type 8/12 and
8/16)
Carry out the following activities:

Unscrew the threaded pin (1).

Move the main pin (2) to the side.

Unfold the fork piece (3) forward together with the hand lever.

Unscrew the threaded pin (4).

Reinsert the adjusting pin (5) with the strap (7) into the bore (6).

Screw the threaded pin (4) into the threaded bore (8) and secure the ad-
justing screw (6).

Reinstall the fork piece in the reverse order.
1
2
3
4
–
Hand toggle presses Translation of the original operating manual
Setup and accessories
Threaded pin
Main pin
Fork piece
Threaded pin
5
Adjusting pin and pin bore for the
long stroke
6
Short stroke pin bore
7
Strap
8
Threaded pin
