8.1.5

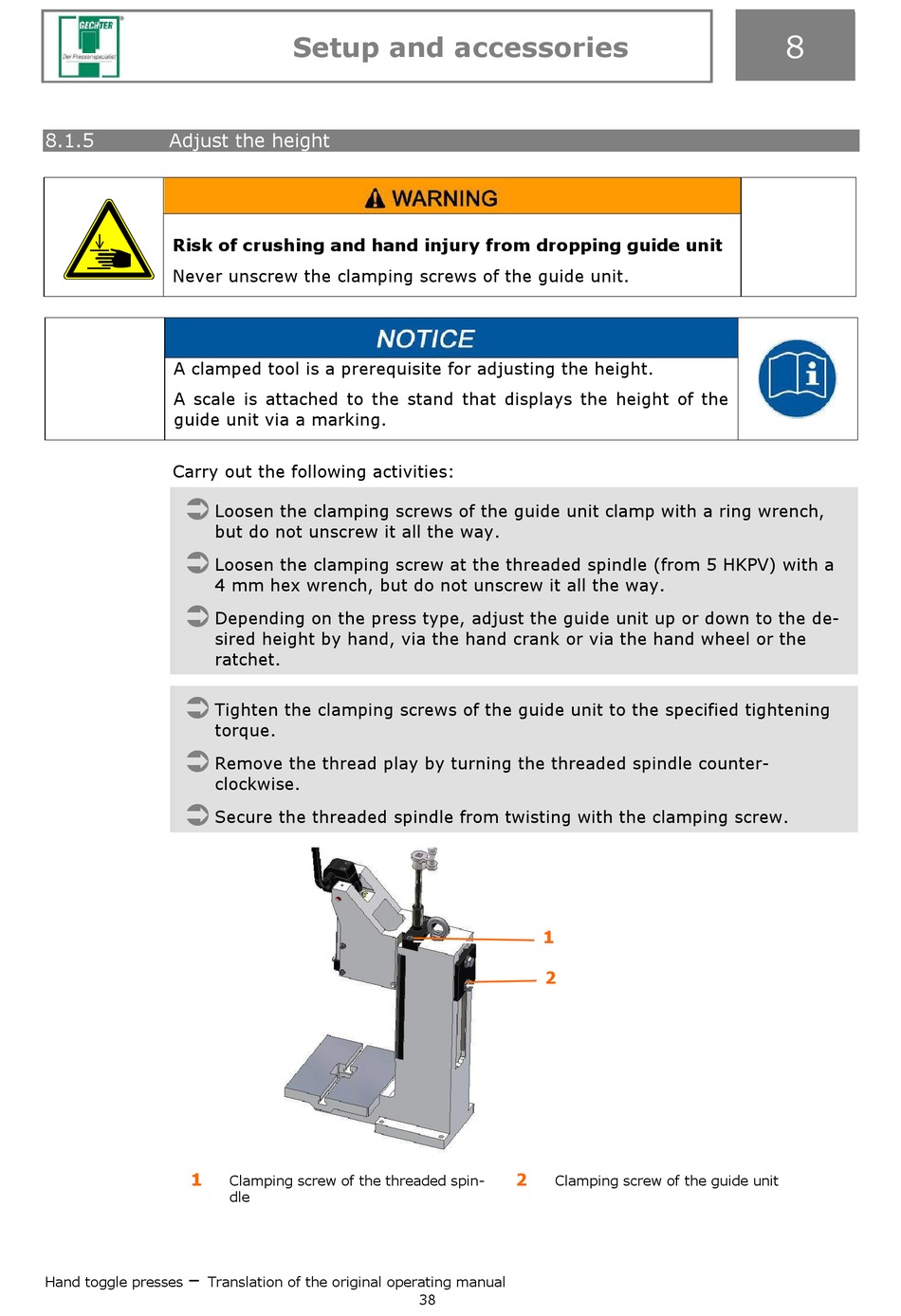

Adjust the height

Risk of crushing and hand injury from dropping guide unit
Never unscrew the clamping screws of the guide unit.
A clamped tool is a prerequisite for adjusting the height.
A scale is attached to the stand that displays the height of the
guide unit via a marking.
Carry out the following activities:

Loosen the clamping screws of the guide unit clamp with a ring wrench,
but do not unscrew it all the way.

Loosen the clamping screw at the threaded spindle (from 5 HKPV) with a
4 mm hex wrench, but do not unscrew it all the way.

Depending on the press type, adjust the guide unit up or down to the de-
sired height by hand, via the hand crank or via the hand wheel or the
ratchet.

Tighten the clamping screws of the guide unit to the specified tightening
torque.

Remove the thread play by turning the threaded spindle counter-
clockwise.

Secure the threaded spindle from twisting with the clamping screw.
1
–
Hand toggle presses Translation of the original operating manual
Setup and accessories
Clamping screw of the threaded spin-
dle
1
2
2
Clamping screw of the guide unit
