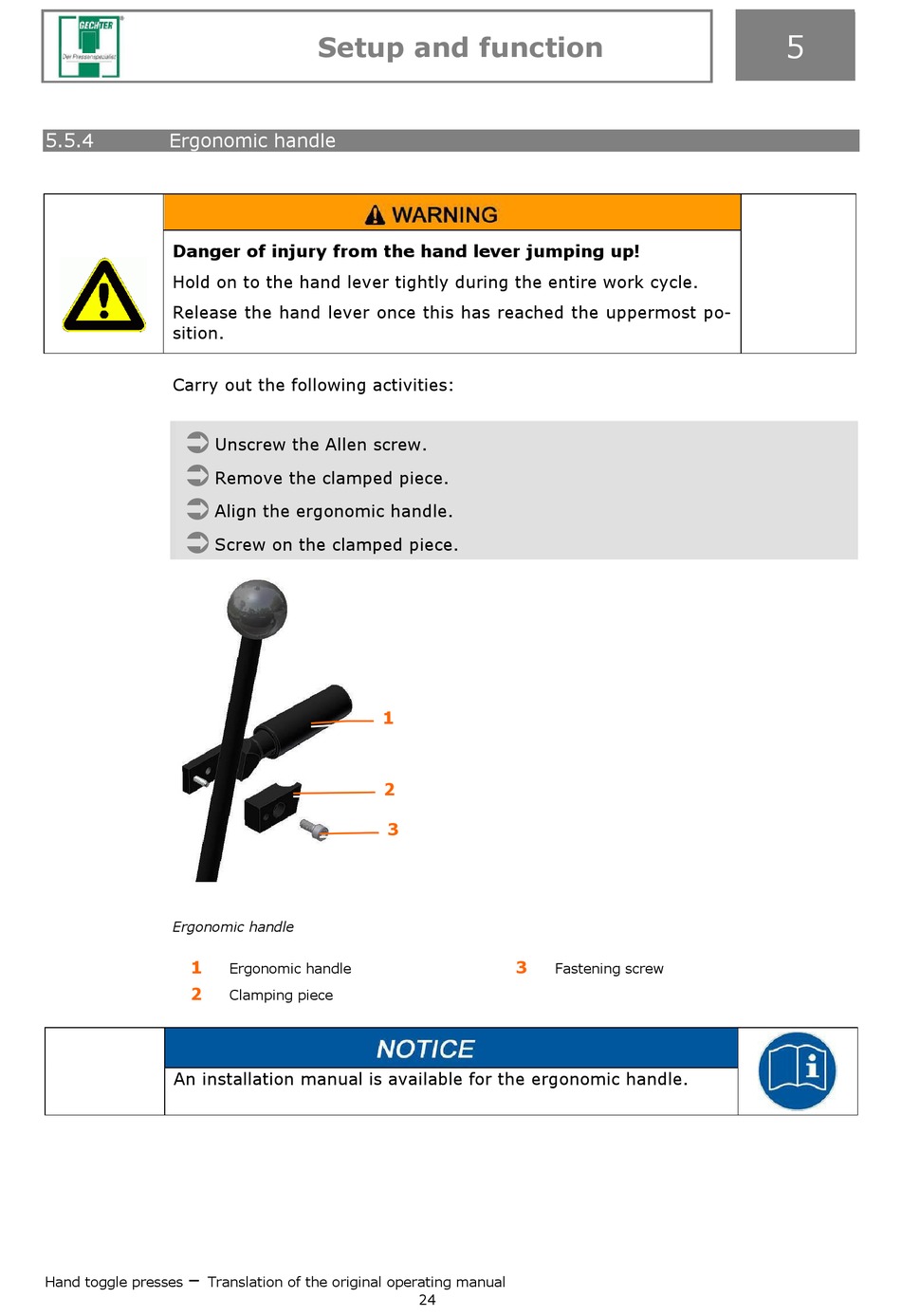

Ergonomic Handle - Gechter HKPE Series Translation Of The Original Operating Manual

5.5.4

Ergonomic handle

Danger of injury from the hand lever jumping up!
Hold on to the hand lever tightly during the entire work cycle.
Release the hand lever once this has reached the uppermost po-
sition.
Carry out the following activities:

Unscrew the Allen screw.

Remove the clamped piece.

Align the ergonomic handle.

Screw on the clamped piece.
Ergonomic handle
1
2
An installation manual is available for the ergonomic handle.
–
Hand toggle presses Translation of the original operating manual
Setup and function
1
2
3
Ergonomic handle
Clamping piece
3
Fastening screw
24
5
