Tightening Torques For Screws - Gechter HKPE Series Translation Of The Original Operating Manual

8.1.1

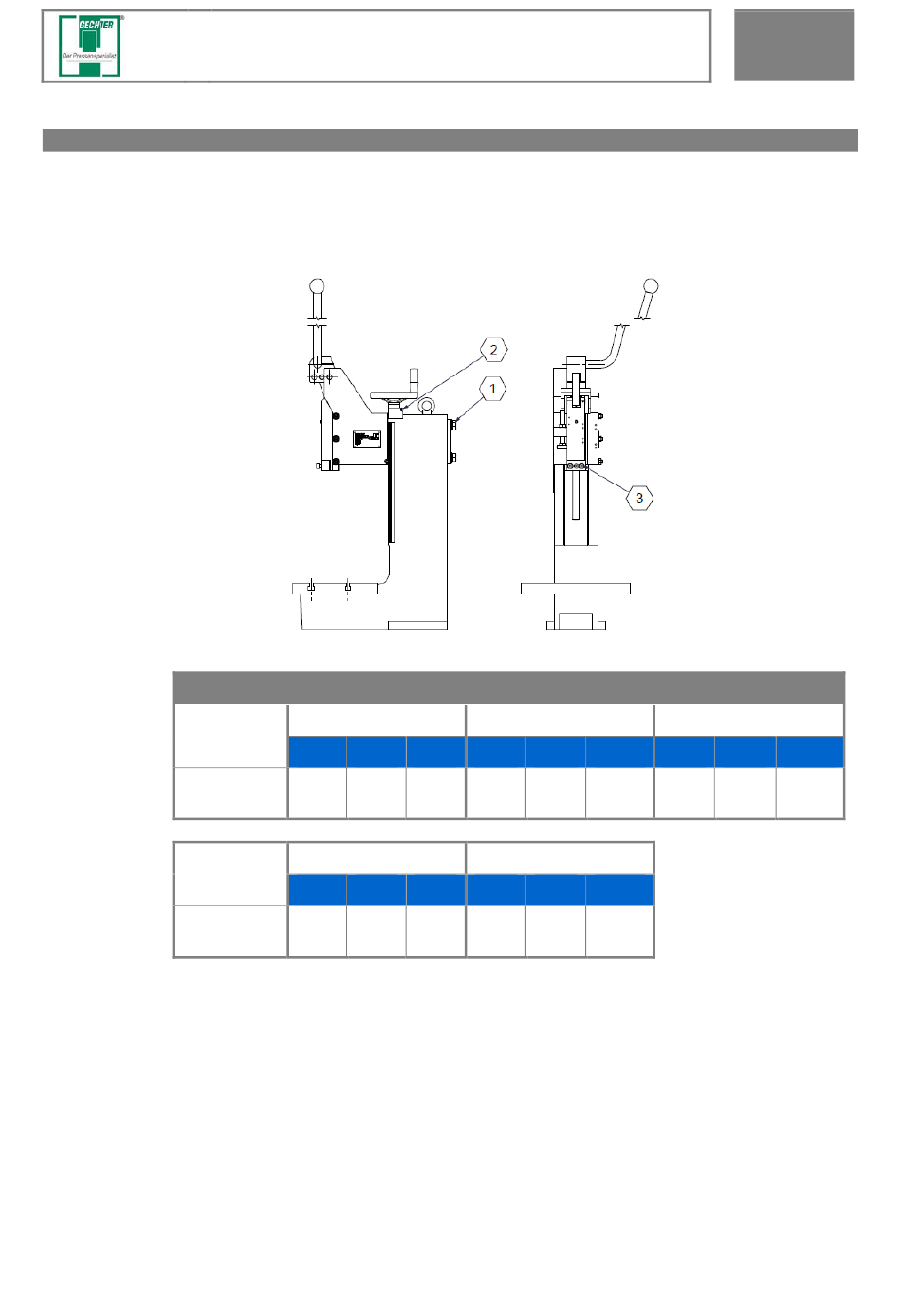

Tightening torques for screws

The screw connections are to be tightened with the corresponding tightening
torque to ensure a secure hold of the assemblies.
Torque (Nm)
Torque (Nm)
–
Hand toggle presses Translation of the original operating manual
Setup and accessories
Tightening torques
HKPE / HKPV 2.5
1 2 3
70 6.5 11
HKPV 8/16
1 2 3
120 6.5 25
33
HKPE / HKPV 5
1 2 3
70 6.5 11
HKP 50
1 2 3
170 6.5 25
8
HKPV 8/12
1 2 3
90 6.5 11
