8.1.4

Setup

Observe the installation position (marking) so that the clamping
piece can be reinstalled without contorting it.
The following activities are carried out:

Insert the clamping pins of the tool or stamp/upper die by pressing the
bottom side of the slide into the half shell of the clamping bore.

Insert the clamping piece and retighten both tensioning screws.

Screw the pin retaining screw all the way into the clamping piece with an
Allen key. The pin retaining screw now presses on the cone and pulls the
upper die all the way up against the half shell of the clamping bore.

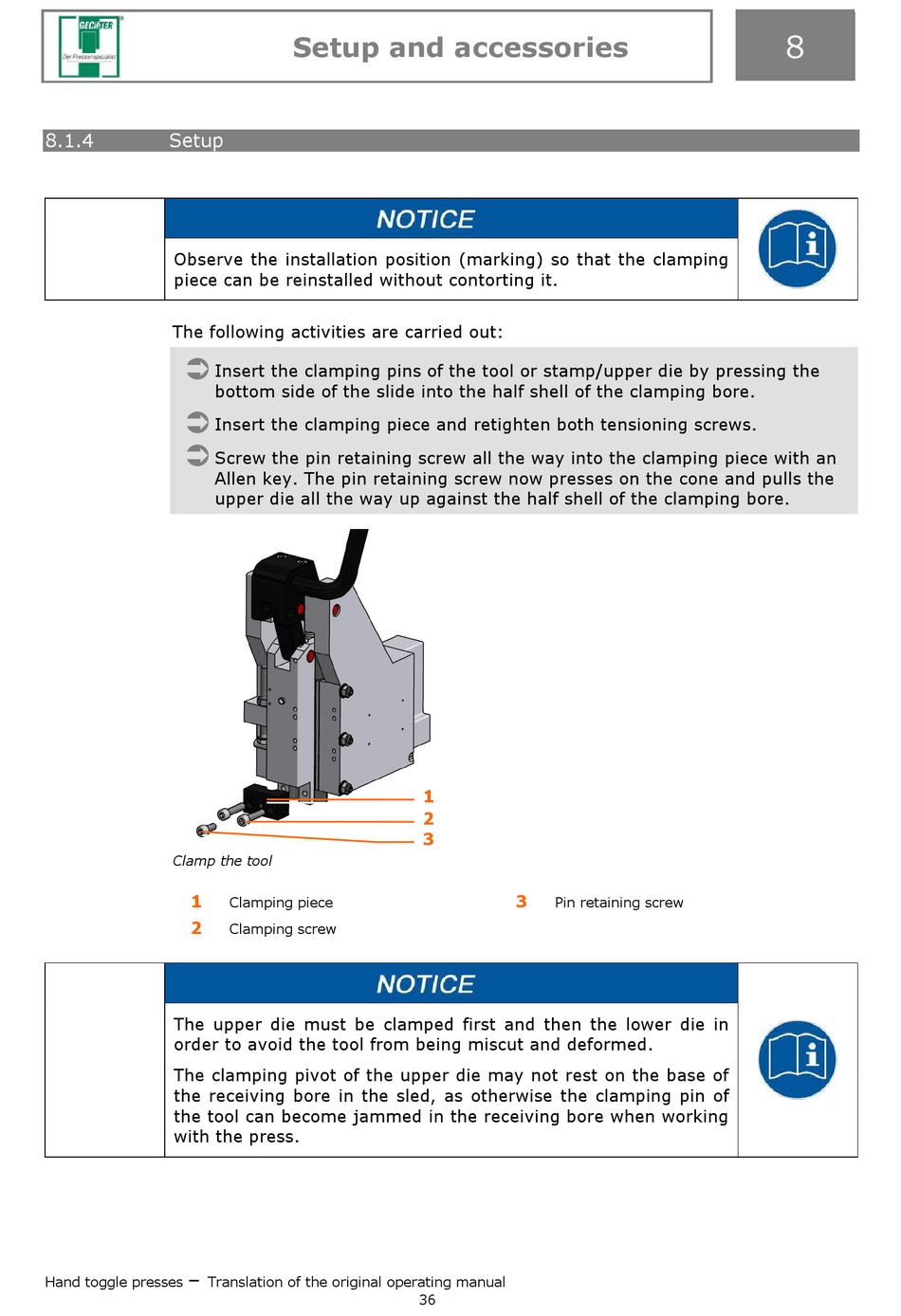

Clamp the tool
1
2
The upper die must be clamped first and then the lower die in
order to avoid the tool from being miscut and deformed.
The clamping pivot of the upper die may not rest on the base of
the receiving bore in the sled, as otherwise the clamping pin of
the tool can become jammed in the receiving bore when working
with the press.
–
Hand toggle presses Translation of the original operating manual
Setup and accessories
Clamping piece
Clamping screw
1
2
3
3
Pin retaining screw
