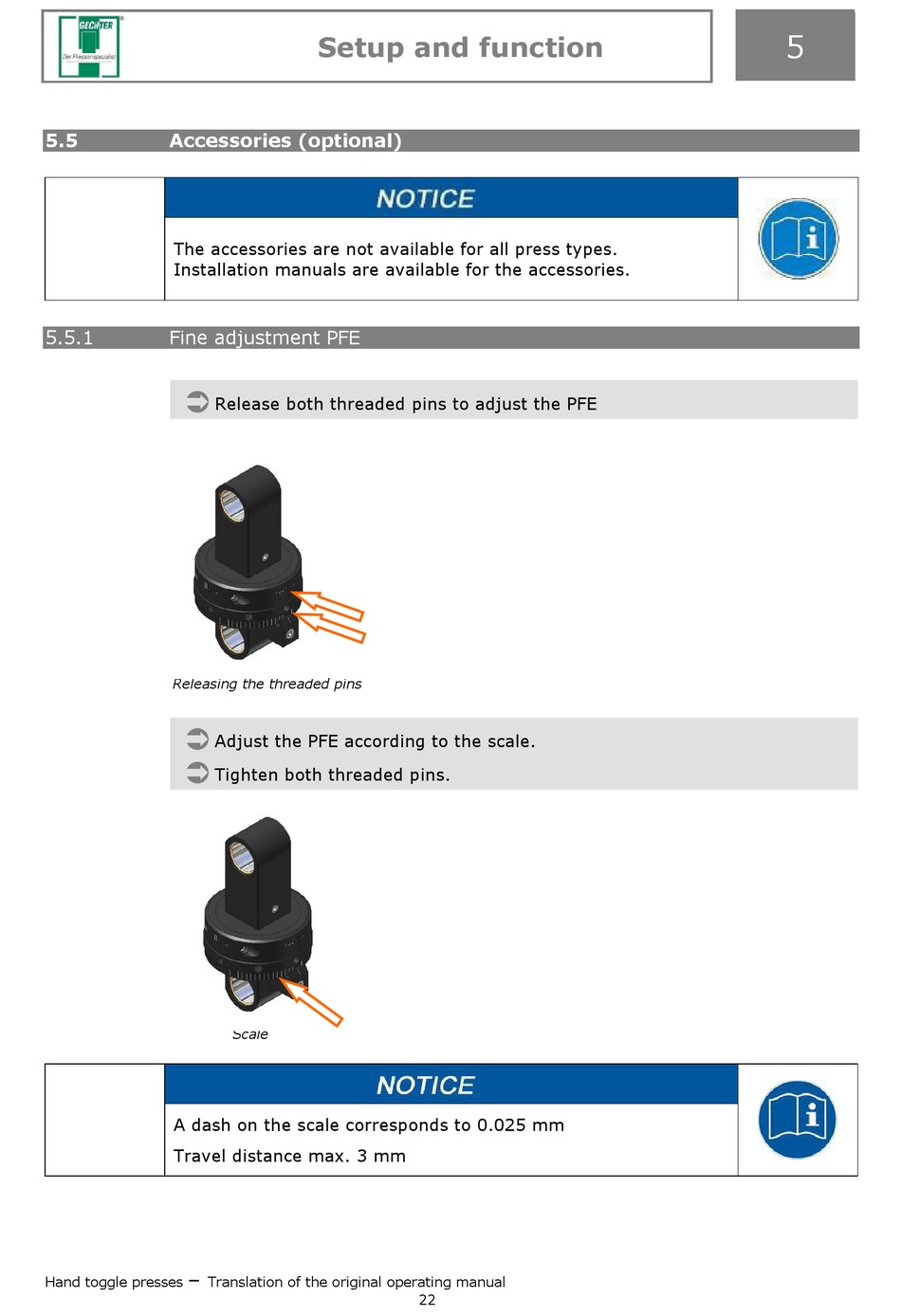

5.5
Accessories (optional)
The accessories are not available for all press types.
Installation manuals are available for the accessories.
5.5.1
Fine adjustment PFE
Release both threaded pins to adjust the PFE
Releasing the threaded pins
Adjust the PFE according to the scale.
Tighten both threaded pins.
A dash on the scale corresponds to 0.025 mm
Travel distance max. 3 mm
–
Hand toggle presses
Translation of the original operating manual
Setup and function
Scale
22
5
