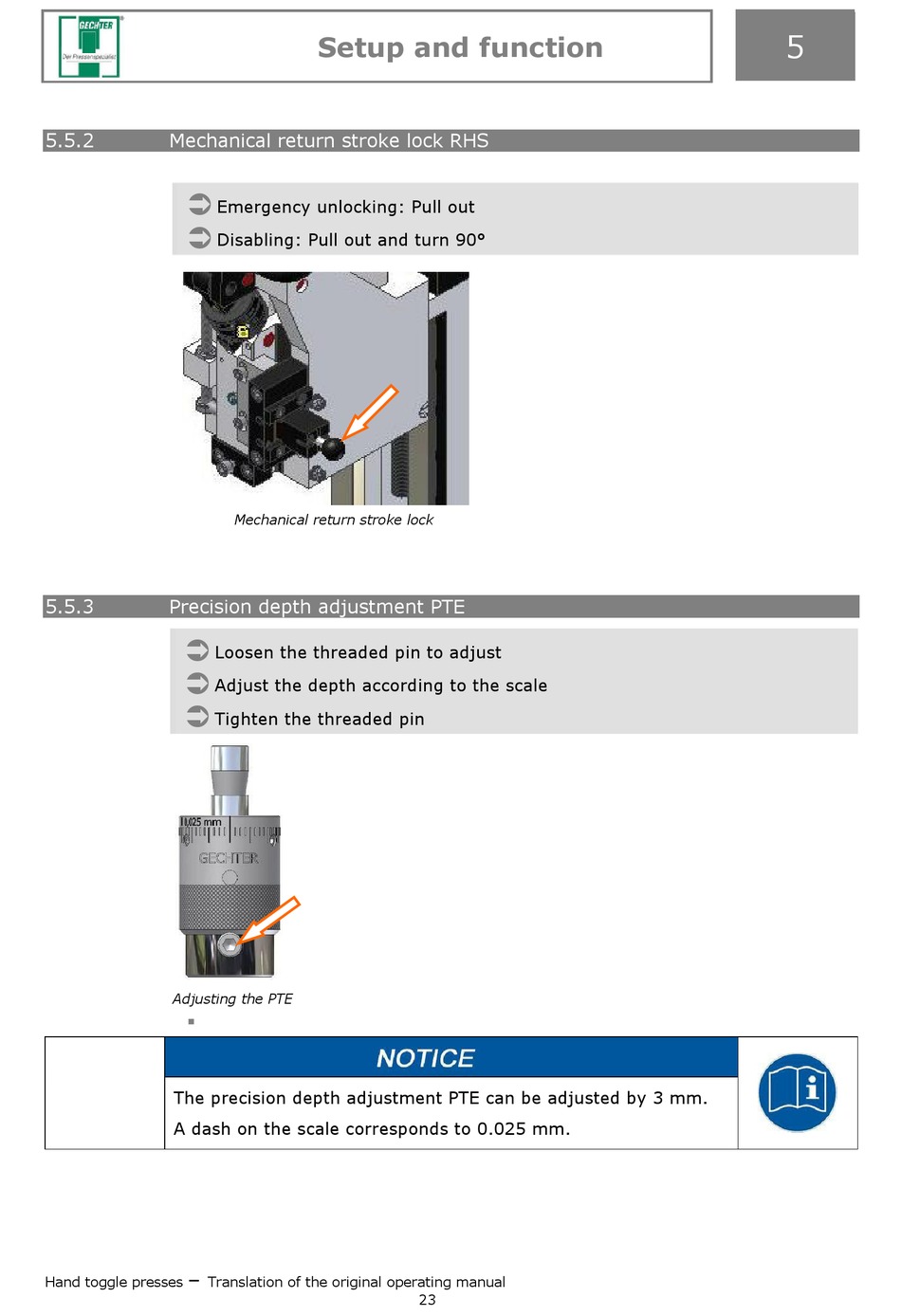

Mechanical return stroke lock RHS



5.5.3

Precision depth adjustment PTE


Loosen the threaded pin to adjust

Adjust the depth according to the scale

Tighten the threaded pin
Adjusting the PTE

The precision depth adjustment PTE can be adjusted by 3 mm.
A dash on the scale corresponds to 0.025 mm.
–
Hand toggle presses Translation of the original operating manual
Setup and function
Emergency unlocking: Pull out
Disabling: Pull out and turn 90°
Mechanical return stroke lock
