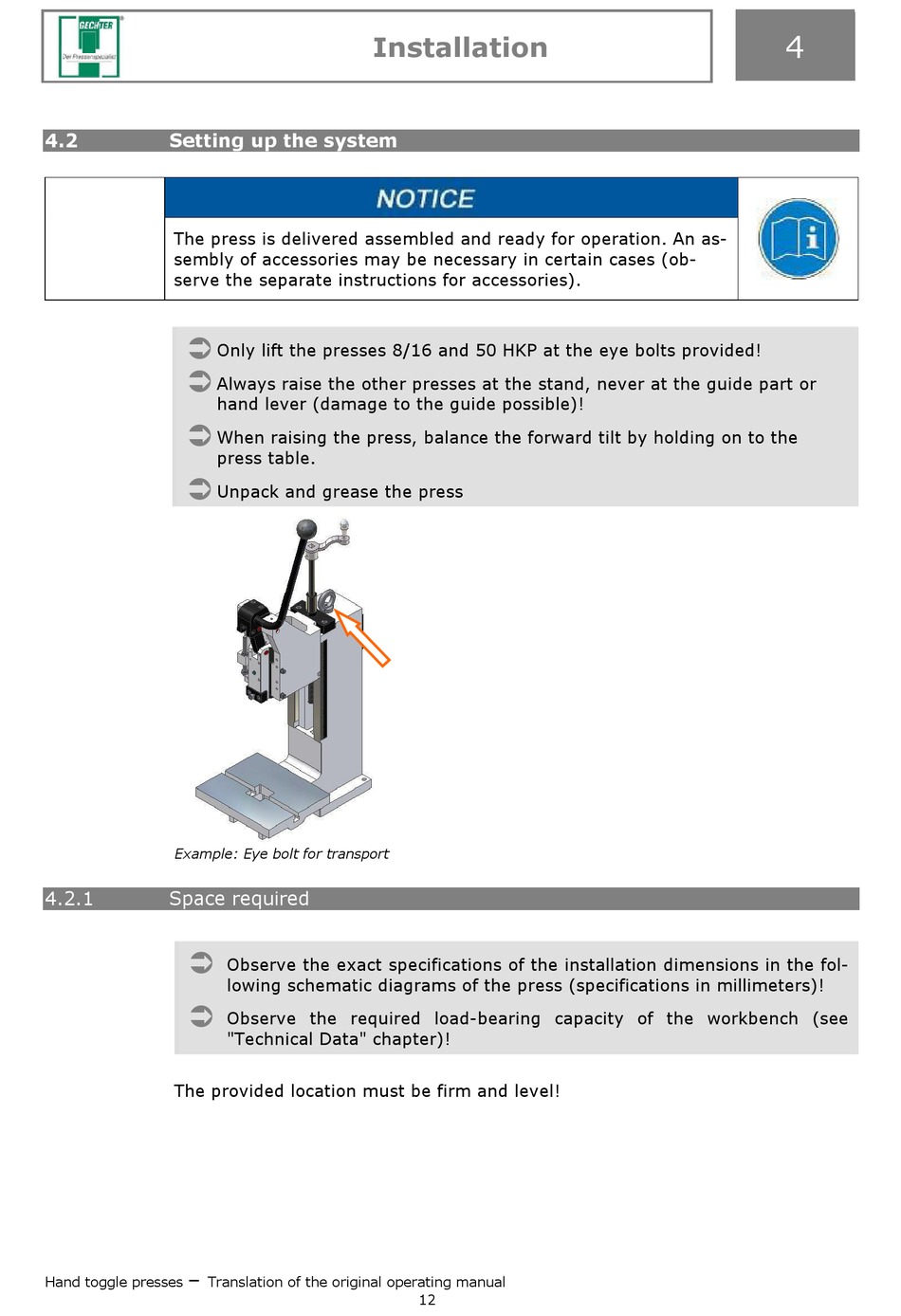

Setting Up The System; Space Required - Gechter HKPE Series Translation Of The Original Operating Manual

4.2

Setting up the system

The press is delivered assembled and ready for operation. An as-
sembly of accessories may be necessary in certain cases (ob-
serve the separate instructions for accessories).




Example: Eye bolt for transport
4.2.1

Space required



The provided location must be firm and level!
–
Hand toggle presses Translation of the original operating manual
Installation
Only lift the presses 8/16 and 50 HKP at the eye bolts provided!
Always raise the other presses at the stand, never at the guide part or
hand lever (damage to the guide possible)!
When raising the press, balance the forward tilt by holding on to the
press table.
Unpack and grease the press
Observe the exact specifications of the installation dimensions in the fol-
lowing schematic diagrams of the press (specifications in millimeters)!
Observe the required load-bearing capacity of the workbench (see
"Technical Data" chapter)!
