1.9.3

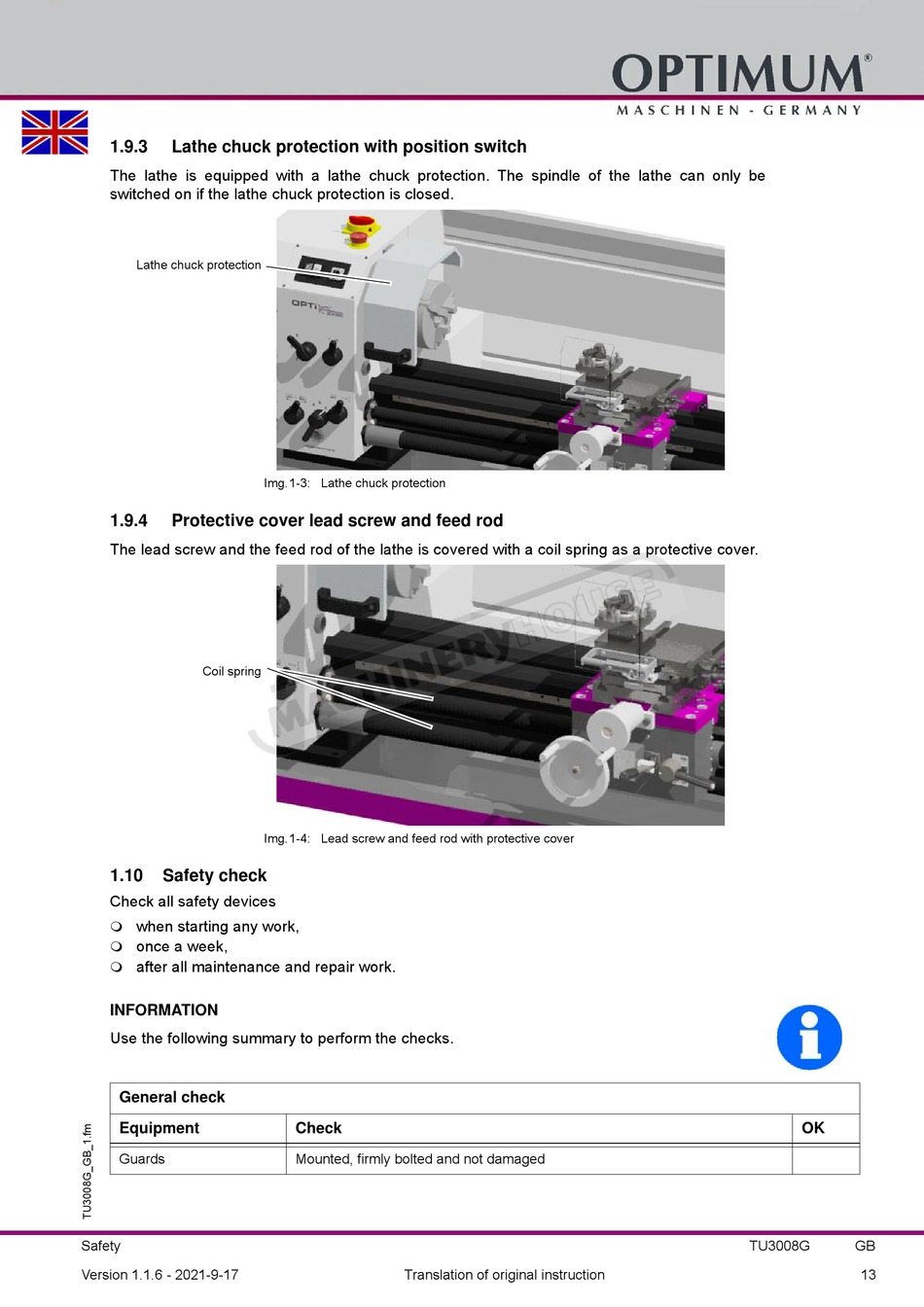

Lathe chuck protection with position switch

The lathe is equipped with a lathe chuck protection. The spindle of the lathe can only be
switched on if the lathe chuck protection is closed.
Lathe chuck protection
1.9.4

Protective cover lead screw and feed rod

The lead screw and the feed rod of the lathe is covered with a coil spring as a protective cover.
Coil spring
1.10

Safety check

Check all safety devices
when starting any work,

once a week,

after all maintenance and repair work.

INFORMATION
Use the following summary to perform the checks.
General check
Equipment
Guards
Safety
Version 1.1.6 - 2021-9-17
Img.1-3: Lathe chuck protection
Img.1-4: Lead screw and feed rod with protective cover
Check
Mounted, firmly bolted and not damaged
Translation of original instruction
OK
