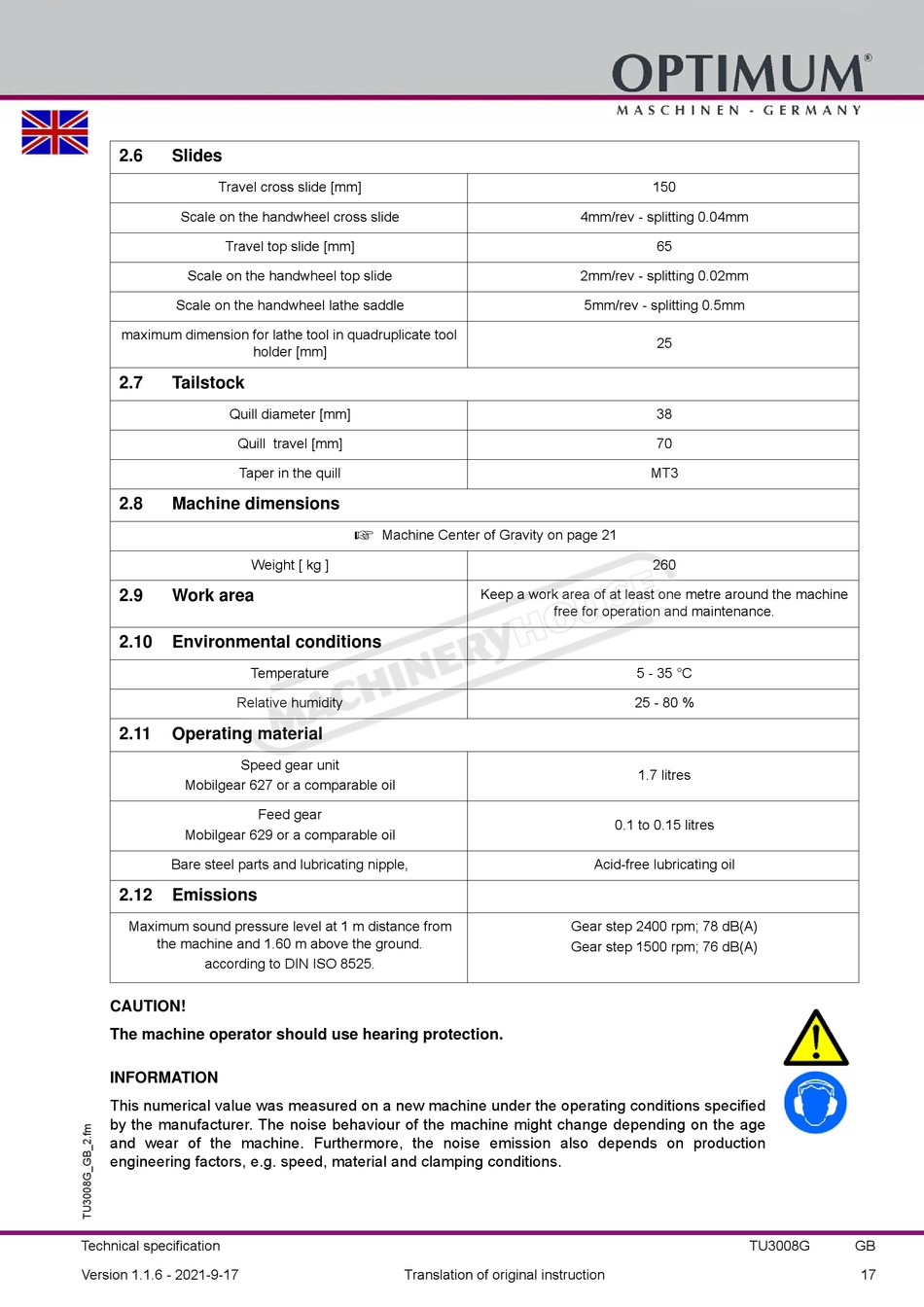

2.6

Slides

Travel cross slide [mm]
Scale on the handwheel cross slide
Travel top slide [mm]
Scale on the handwheel top slide
Scale on the handwheel lathe saddle
maximum dimension for lathe tool in quadruplicate tool
holder [mm]
2.7

Tailstock

Quill diameter [mm]
Quill travel [mm]
Taper in the quill
2.8

Machine dimensions

Weight [ kg ]
2.9

Work area

2.10

Environmental conditions

Temperature
Relative humidity
2.11

Operating material

Speed gear unit
Mobilgear 627 or a comparable oil
Mobilgear 629 or a comparable oil
Bare steel parts and lubricating nipple,
2.12

Emissions

Maximum sound pressure level at 1 m distance from
the machine and 1.60 m above the ground.
according to DIN ISO 8525.
CAUTION!
The machine operator should use hearing protection.
INFORMATION
This numerical value was measured on a new machine under the operating conditions specified
by the manufacturer. The noise behaviour of the machine might change depending on the age
and wear of the machine. Furthermore, the noise emission also depends on production
engineering factors, e.g. speed, material and clamping conditions.
Technical specification
Version 1.1.6 - 2021-9-17

Machine Center of Gravity on page 21
Feed gear
Translation of original instruction
150
4mm/rev - splitting 0.04mm
2mm/rev - splitting 0.02mm
5mm/rev - splitting 0.5mm
MT3
260
Keep a work area of at least one metre around the machine
free for operation and maintenance.
5 - 35 °C
25 - 80 %
1.7 litres
0.1 to 0.15 litres
Acid-free lubricating oil
Gear step 2400 rpm; 78 dB(A)
Gear step 1500 rpm; 76 dB(A)
65
25
38
70
