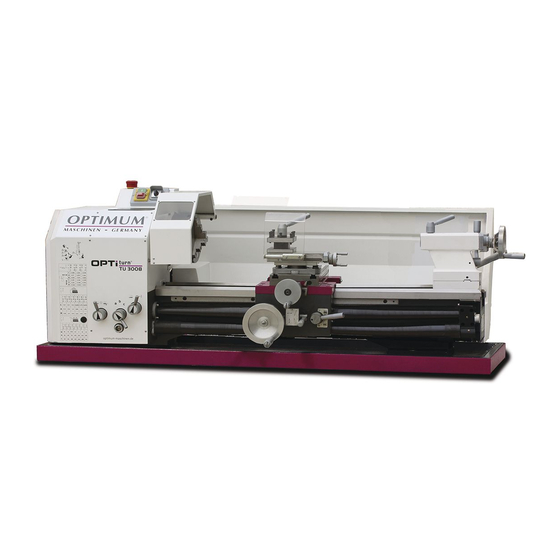

Optimum OPTIturn TU 3008 Operating Manual
  1. Manuals
  2. Brands
  3. Optimum Manuals
  4. Lathe
  5. OPTIturn TU 3008
  6. Operating manual

Optimum OPTIturn TU 3008 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

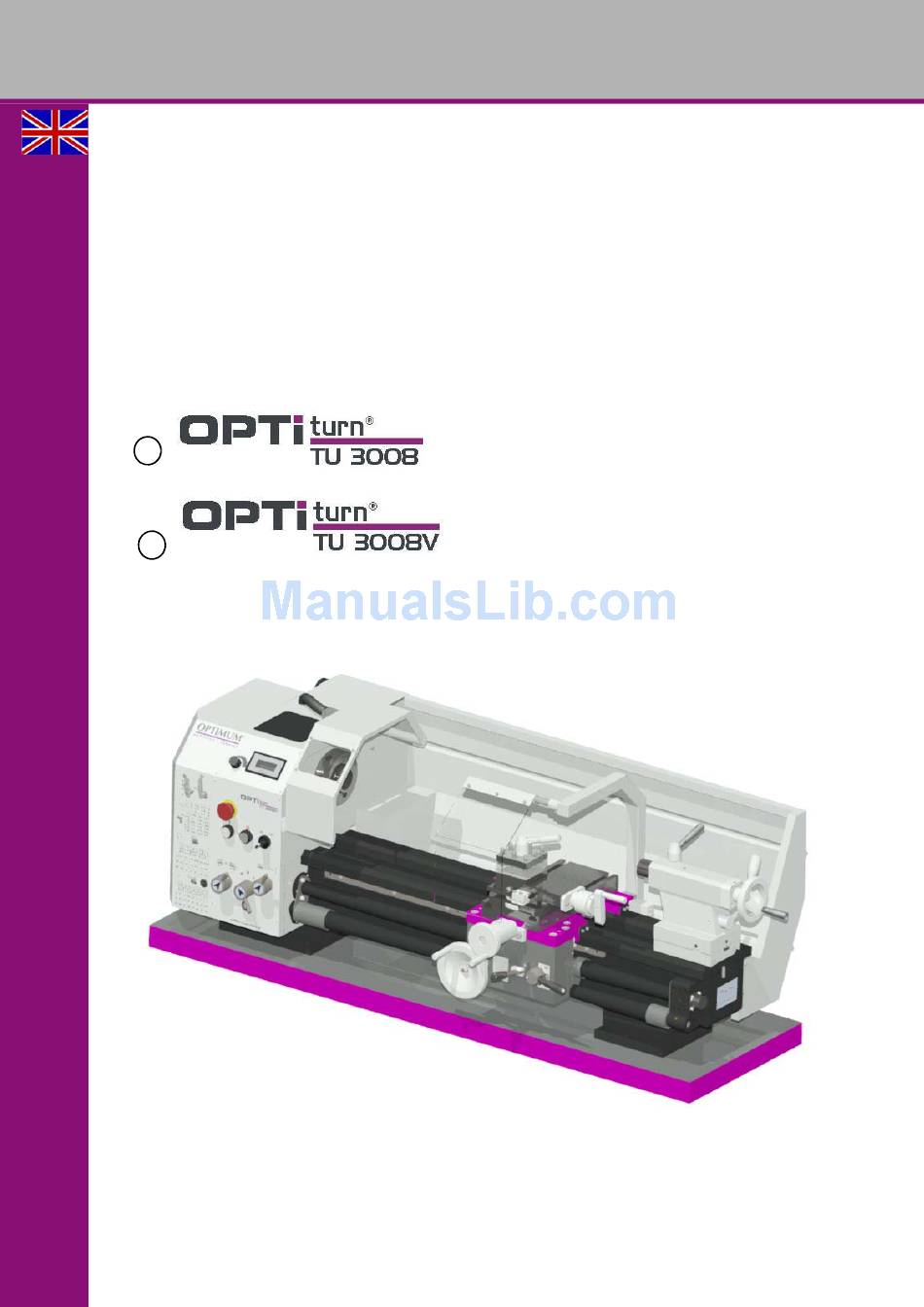

OPTIMUM
M A S C H I N E N - G E R M A N Y
Operating manual
Version 1.0.1
Lathe
Item no. 342 7200
Item no. 342 7205
TU3008V
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIturn TU 3008 and is the answer not in the manual?

Questions and answers

Related Manuals for Optimum OPTIturn TU 3008

Summary of Contents for Optimum OPTIturn TU 3008

  • Page 1 OPTIMUM M A S C H I N E N - G E R M A N Y Operating manual Version 1.0.1 Lathe Item no. 342 7200 Item no. 342 7205 TU3008V...

  • Page 2: Table Of Contents

    OPTIMUM M A S C H I N E N - G E R M A N Y Table of contents Safety Type plates ...............................7 Safety instructions (warning notes)......................7 1.2.1 Classification of hazards...........................7 1.2.2 Pictograms..............................8 Intended use .............................9 Reasonably foreseeable misuses......................9 1.4.1 Avoiding Misuse............................10...
  • Page 3 OPTIMUM M A S C H I N E N - G E R M A N Y 3.6.1 Lubrication .............................. 25 First commissioning..........................26 Electrical connection ..........................26 Warming up the machine ........................27 Operation Control and indicating elements ......................28 Safety ..............................
  • Page 4 OPTIMUM M A S C H I N E N - G E R M A N Y 4.22.1 Longitudinal turning ..........................63 4.22.2 Face turning and recessing ........................63 4.22.3 Turning short tapers with the top slide....................63 4.22.4 Thread cutting............................64 4.23 Cooling lubricant .............................65...
  • Page 5 Dear customer, Thank you very much for purchasing a product made by OPTIMUM. OPTIMUM metal working machines offer a maximum of quality, technically optimum solutions and convince by an outstanding price performance ratio. Continuous enhancements and product innovations guarantee state-of-the-art products and safety at any time.

  • Page 6: Safety

    OPTIMUM M A S C H I N E N - G E R M A N Y Safety Glossary of symbols  provides further instructions  calls on you to act  enumerations This part of the operating instructions ...

  • Page 7: Type Plates

    M A S C H I N E N - G E R M A N Y Type plates INFORMATION If you are unable to rectify an issue using these operating instructions, please contact us for advice: Optimum Maschinen Germany GmbH Dr. Robert-Pfleger-Str. 26 D- 96103 Hallstadt Email: info@optimum-maschinen.de Safety instructions (warning notes) 1.2.1 Classification of hazards...

  • Page 8: Pictograms

    OPTIMUM M A S C H I N E N - G E R M A N Y Symbol Signal word Definition / consequence Practical tips and other important or useful information and notes. No dangerous or harmful consequences for people or objects.

  • Page 9: Intended Use

     "Technical data“ on page 18 In order to achieve optimum cutting performance, it is essential to choose the right turning tool, feed, tool pressure, cutting speed and coolant. WARNING! Severe injuries due to non-intended use.

  • Page 10: Avoiding Misuse

    OPTIMUM M A S C H I N E N - G E R M A N Y 1.4.1 Avoiding Misuse  Use of suitable cutting tools.  Adapting the speed adjustment and feed to the material and workpiece. ...

  • Page 11: Qualification

    OPTIMUM M A S C H I N E N - G E R M A N Y WARNING! The lathe may only be used with the safety devices activated. Disconnect the lathe immediately whenever you detect a failure in the safety devices or when they are not ...

  • Page 12: Safety Measures During Operation

    OPTIMUM M A S C H I N E N - G E R M A N Y Safety Measures During Operation CAUTION! Risk due to inhaling dusts and mist hazardous to health. Dependent on the material which need to be processed and the used auxiliaries dusts and mist may be caused which might impair you health.

  • Page 13: Emergency-Stop Mushroom Switch

    OPTIMUM M A S C H I N E N - G E R M A N Y WARNING! The protective equipment for material separaton that is made available and delivered together with the machine is designed to reduce the risk of workpieces or fractions of them being expelled from the machine, but not to remove them entirely.

  • Page 14: Lathe Chuck Protection With Position Switch

    OPTIMUM M A S C H I N E N - G E R M A N Y 1.9.3 Lathe chuck protection with position switch The lathe is equipped with a lathe chuck protection. The spindle of the lathe can only be switched on if the lathe chuck protection is closed.

  • Page 15: Safety Check

    OPTIMUM M A S C H I N E N - G E R M A N Y 1.10 Safety check Check all safety devices  when starting any work,  once a week,  after all maintenance and repair work.

  • Page 16: Safety During Operation

    OPTIMUM M A S C H I N E N - G E R M A N Y 1.12 Safety during operation We provide information about the specific dangers when working with and on the lathe in the descriptions for these types of work.

  • Page 17: Mechanical Maintenance Work

    OPTIMUM M A S C H I N E N - G E R M A N Y 1.12.3 Mechanical maintenance work Remove or install protection safety devices before starting or after completing any mainte- nance work; this include: ...

  • Page 18: Technical Data

    OPTIMUM M A S C H I N E N - G E R M A N Y Technical data The following information represents the dimensions and indications of weight and the manu- facturer‘s approved machine data. TU3008 TU3008V Electrical connection...

  • Page 19: Sliding Carriage

    OPTIMUM M A S C H I N E N - G E R M A N Y TU3008 TU3008V Sliding carriage Travel cross slide [mm] 4mm per revolution Scale on the handwheel cross slide Pitch 0.04 mm Travel top slide [mm]...
  • Page 20 OPTIMUM M A S C H I N E N - G E R M A N Y TU3008 | TU3008V Technical data Page 20 Original operating instructions Version 1.0.1 dated 2015-05-27...

  • Page 21: Assembly

    OPTIMUM M A S C H I N E N - G E R M A N Y Assembly Unpacking the machine Transport the lathe in its packing crate to a place near its final installation location with a forklift before unpacking it.

  • Page 22: Load Suspension Point

    OPTIMUM M A S C H I N E N - G E R M A N Y 3.3.1 Load suspension point DANGER! Danger of crushing and overturning. The lathe must be installed by several persons. Weight [kg] 260 ...

  • Page 23: Machine Center Of Gravity

    OPTIMUM M A S C H I N E N - G E R M A N Y Machine Center of Gravity 3.4.1 without a machine base 1525 A-A ( 0,1 ) 1420 Schwerpunkt / Centre of gravity Assembly TU3008 | TU3008V Version 1.0.1 dated 2015-05-27...

  • Page 24: With An Optional Machine Base

    OPTIMUM M A S C H I N E N - G E R M A N Y 3.4.2 with an optional machine base CAUTION! In order to provide for the necessary stability of the machine with an optional machine base, it is necessary to firmly fasten the machines to the base.

  • Page 25: Cleaning The Machine

    OPTIMUM M A S C H I N E N - G E R M A N Y  The ground must be suitable for the lathe. Make sure that the floor has sufficient load-bear- ing capacity and is level.

  • Page 26: First Commissioning

    Risk from using improper workpiece clamping materials or operating the machine at an inadmissible speed. Only use the tool clamping devices (e.g. lathe chuck) that were delivered with the machine or those offered by OPTIMUM as optional equipment. Only use tool clamping devices in the intended admissible speed range. Electrical connection...

  • Page 27: Warming Up The Machine

    OPTIMUM M A S C H I N E N - G E R M A N Y Warming up the machine CAUTION! If the lathe and in particular the lathe spindle are immediately operated at maximum load when cold, this may result in damages.

  • Page 28: Operation

    OPTIMUM M A S C H I N E N - G E R M A N Y Operation Control and indicating elements Img.4-1: TU3008V Pos. Designation Pos. Designation Rotation direction switch EMERGENCY-STOP button Infinitely variable speed adjustment (only ON/ OFF switch...

  • Page 29: Safety

    OPTIMUM M A S C H I N E N - G E R M A N Y Safety Commission the lathe only under the following conditions:  The lathe is in proper working order.  The lathe is used as prescribed.

  • Page 30: Overview Of Indicator Elements

    OPTIMUM M A S C H I N E N - G E R M A N Y Attachment screw lathe saddle 4.2.2 Overview of indicator elements Scale cross offset tailstock Oil sight glass feed gear TU3008 | TU3008V Operation...

  • Page 31: Control Elements

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.2.3 Control elements Turning direction Spindle rotation On / Off Inch thread [ threads / inch ] Longitudinal feed / cross feed...

  • Page 32: Switching The Machine Off

    OPTIMUM M A S C H I N E N - G E R M A N Y Switching the machine off  Set the rotation direction switch to the neutral central position.  If the lathe has been shut off for a longer period of time, switch it off using the main switch and secure it against being unintentionally switched on again or pull the power plug from ...

  • Page 33: Changing The Speed Or The Speed Range

    OPTIMUM M A S C H I N E N - G E R M A N Y In order to change the speed or the speed range, you must first remove the protective cover. Fastening screws  Pull the power plug.

  • Page 34: Fixing The Lathe Saddle

    OPTIMUM M A S C H I N E N - G E R M A N Y  Depending on the selected speed, the V-belt will have to be positioned directly onto the mo- tor pulley or onto the pulley of the primary transmission.

  • Page 35: Changing The Feed Rate

    OPTIMUM M A S C H I N E N - G E R M A N Y Changing the feed rate 4.9.1 Selector switch Use the selector rotary switches to select the feed direction and feed speed. ATTENTION! Wait until the machine has come to a complete stop before making any change to the selector levers.
  • Page 36 OPTIMUM M A S C H I N E N - G E R M A N Y  Swing the quadrant to the right.  Remove the lock washers of the clamping screws at the quadrant.  Remove the screw from the shaft of the feed gear.

  • Page 37: Feed Table, Table For Thread Cutting

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.9.3 Feed table, table for thread cutting 4.9.4 Transmission ratio The gear transmission ratio is the ratio of the driving toothed wheels to the driven toothed wheels.

  • Page 38: Tool Holder

    OPTIMUM M A S C H I N E N - G E R M A N Y Cross feed and longitudinal feed engage- ment lever Threading engaging lever Img.4-9: Apron INFORMATION Move the hand wheel of the lathe saddle a little in order to facilitate the locking of the engaging lever.
  • Page 39 OPTIMUM M A S C H I N E N - G E R M A N Y The spindle is designed as Camlock DIN ISO 702-2 no.4 holding fixture. Fasten workpiece holder Img.4-11: Fasten workpiece holder  Turn clamp bolts (1) into the open position.

  • Page 40: Adjusting The Camlock Bolts To The Workpiece Holder

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.12.1 Adjusting the Camlock bolts to the workpiece holder Insert all of the bolts in the screwed flange of the chuck, until the reference mark, the circular reference line (F) is in line with the wall of the chuck flange surface and the semicircular grooves are in line with the holes of the safety screw (E).

  • Page 41: Speed Information, Maintenance Recommendations, Reference Speed In Accordance With Din 6386

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.12.3 Speed information, maintenance recommendations, reference speed in accordance with DIN 6386 The reference speed is the number of rotations, at which the mathematical centrifugal force with the corresponding jaw design correlates with the greatest tensioning force when the machine is at a standstill.

  • Page 42: Replacing The Clamping Jaws On The Lathe Chuck

    OPTIMUM M A S C H I N E N - G E R M A N Y The recommended rotational speed applies to the clamping jaws tiered on the inside that are delivered with the lathe chuck which finish flush with the external chuck diameter.

  • Page 43: Clamping A Workpiece Into The Three Jaw Chuck

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.12.6 Clamping a workpiece into the three jaw chuck When the workpiece is being clamped unprofessionally, there is a risk of injury as the work- piece may fly off or the jaws may break.

  • Page 44: Turning Tapers

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.13 Turning tapers 4.13.1 Turning short tapers with the top slide With the top slide short cone can be rotated. The scaling is performed up to 60° degree of angle.
  • Page 45 OPTIMUM M A S C H I N E N - G E R M A N Y Calculation of the offset of the top slide relating to the stop measure with a length of 100 mm. Step by step...
  • Page 46 OPTIMUM M A S C H I N E N - G E R M A N Y the cone surface (fix the bedslide). Now the top slide is twisted in a way that the gauge does not indicate any travel of the pointer over the whole length of the cone (offset over the handwheel of the top slide).

  • Page 47: Standard Values For Cutting Data When Turning

    OPTIMUM M A S C H I N E N - G E R M A N Y  -------------- - -------- - 1 875mm Vr max  Img.4-19: Workpiece between points: Tailstock offset Vr 4.14 Standard values for cutting data when turning The better the cutting data are selected, the better the turning result.
  • Page 48 OPTIMUM M A S C H I N E N - G E R M A N Y M15/ non-alloyed steel; steel casting; 35 - 100 - 80 - 50 - 70 - 150 - 90 - 30 - C45; St37...

  • Page 49: Terms For The Rotating Tool

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.16 Terms for the rotating tool Cutting direction Chip thickness Chip surface    Tool Clearance surface Img.4-20: Geometrically Img.4-21: Cut and chip size...

  • Page 50: Cutting Edge Geometry For Turning Tools

    +6° to +24° +5° to +11° +5° to +24° 4.16.2 Types of cutting form levels They are needed to influence the chip drain and the chip shape in order to achieve optimum chipping conditions. Examples of types of cutting form levels ...
  • Page 51 OPTIMUM M A S C H I N E N - G E R M A N Y Img.4-28: Negative apex angle for rough- The ready-ground major cutting edge must be slightly ground with a grindstone for the plan- ing.

  • Page 52: Tapping Of External And Internal Threads

    OPTIMUM M A S C H I N E N - G E R M A N Y Polished section for threading The point angle or the shape for chasing tools is depend- ing on the type of thread. See also: ...

  • Page 53: Thread Types

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.18 Thread types Designation Profile Code letter Short term (e. g.) Application ISO-thread M4x12 1/4" - 20UNC - UNEF 0.250 - UNC - 2A Bolt 1/4"...

  • Page 54: Metric Threads (60° Flank Angle)

    OPTIMUM M A S C H I N E N - G E R M A N Y 1“ – 11 ½“ NPT Cone Bolt 4.18.1 Metric threads (60° flank angle) pitch P depth of thread of the bolt h2=0.6134 x P depth of thread of the nut H1 = 0.5413 x P...
  • Page 55 OPTIMUM M A S C H I N E N - G E R M A N Y 12.701 11.546 11.835 1.227 1.083 0.289 M 16 14.701 13.546 13.835 1.227 1.083 0.289 16.376 14.933 15.294 1.534 1.353 0.361 15.5 M 20 18.376...

  • Page 56: British Thread (55° Flank Angle)

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.18.2 British thread (55° flank angle) BSW (Ww.): British Standard Withworth Coarse Thread Series is the most common coarse thread in Great Britain and corresponds in its usage category to the metric coarse-pitch thread.

  • Page 57: Indexable Inserts

    OPTIMUM M A S C H I N E N - G E R M A N Y 22.226 30.20 15/16 23.813 1" 25.401 33.25 1 1/8 28.576 1 1/4 31.751 41.91 1 3/8 34.926 1 1/2 38.101 47.80 1 5/8 41.277...

  • Page 58: Examples For Thread Cutting

    OPTIMUM M A S C H I N E N - G E R M A N Y As for thread cutting there are other conditions as for longitudinal turning, the forward cutter must show a larger clearance as the pitch angle of the thread.
  • Page 59 OPTIMUM M A S C H I N E N - G E R M A N Y For larger pitches the alternate flank infeed is selected. The top slide is from the 2nd passage in each case 0.05 - 0.10 mm adjusted alternately to the left and right.

  • Page 60: General Operating Instructions

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.19 General operating instructions 4.19.1 Clamping long workpieces  through the hollow shaft of the spindle CAUTION! Long rotating parts that protrude from the hollow shaft of the spindle must be secured by the operator using suitable covers.

  • Page 61: Mounting Of Rests

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.20 Mounting of rests Follow and steady rests Use steady rest or follow rest to support longer parts and prevent the workpiece from flapping around and flying away.

  • Page 62: Tailstock

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.21 Tailstock The tailstock sleeve is used to hold the tools (bits, centring points, etc.)  Clamp the required tool in the tailstock sleeve.

  • Page 63: General Operating Instructions

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.22 General operating instructions 4.22.1 Longitudinal turning In the straight turning operation, the tool feeds parallel to the axis of rotation of the workpiece.

  • Page 64: Thread Cutting

    OPTIMUM M A S C H I N E N - G E R M A N Y 4.22.4 Thread cutting The thread cutting process requires that the operator has a good knowledge of turning and suf- ficient experience. INFORMATION Due to a safety mechanism, it is not possible to use the ...

  • Page 65: Cooling Lubricant

    Consider this fact when selecting your cool- ing lubricant. The company Optimum Maschinen Germany GmbH does not assume any guarantee for sub- sequent damages due to unsuitable cooling lubricants. The flashpoint of the emulsion must be higher than 140°C.

  • Page 66: Maintenance

    OPTIMUM M A S C H I N E N - G E R M A N Y Maintenance In this chapter you will find important information about  Inspection  Maintenance  Repair of the lathe. ATTENTION! Properly performed regular maintenance is an essential prerequisite for ...

  • Page 67: Cleaning

    OPTIMUM M A S C H I N E N - G E R M A N Y 5.1.3 Cleaning CAUTION! Use a chip hook for removal of chips and wear suitable protective gloves. Checks, inspection and maintenance The type and level of wear depends to a large extent on the individual usage and operating conditions.
  • Page 68 OPTIMUM M A S C H I N E N - G E R M A N Y Interval Where? What? How? Excessive play in the guides can be reduced by readjusting them.  Turn the take-up screw clockwise. The gib is thus moved toward the back and reduces the play in the correspond- ing guide.
  • Page 69 OPTIMUM M A S C H I N E N - G E R M A N Y Interval Where? What? How?  When changing oil, use an appropriate collection con- tainer with sufficient capacity.  Unscrew the screw from the drain hole.
  • Page 70 OPTIMUM M A S C H I N E N - G E R M A N Y Interval Where? What? How? Function control Clutch feed rod Img.5-4: Clutch feed rod  Lubricate or fill all oilers with machine oil; do not use a grease gun or similar equipment.
  • Page 71 OPTIMUM M A S C H I N E N - G E R M A N Y Interval Where? What? How?  If the initial tension of the tapered roller bearings decreases, retighten it with the adjusting nut. tighten Img.5-7: Re-lubricate spindle...

  • Page 72: Lubricate And Clean The Lathe Chuck

    OPTIMUM M A S C H I N E N - G E R M A N Y Interval Where? What? How?  "Electrical system“ on page 17 Electrical inspection Lubricate and clean the lathe chuck CAUTION! Do not use compressed air to remove dust and foreign substances from the lathe chuck.
  • Page 73 M A S C H I N E N - G E R M A N Y Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage and operating malfunctions resulting from failure to observe these operating instructions.
  • Page 74 OPTIMUM M A S C H I N E N - G E R M A N Y TU3008 | TU3008V Maintenance Page 74 Original operating instructions Version 1.0.1 dated 2015-05-27...
  • Page 75 Viskosität Schmierstoffe Kennzeich- Viskosity Lubricant nung nach Viscosité ISO VG DIN 51502 Lubrifiant DIN 51519 mm²/s (cSt) Aral Degol BP Energol SPARTAN Klüberoil Mobilgear Shell Omala VG 680 CLP 680 Meropa 680 BG 680 GR-XP 680 EP 680 GEM 1-680 Aral Degol BP Energol SPARTAN...
  • Page 76 OPTIMUM M A S C H I N E N - G E R M A N Y 1.0.1 2015-05-27...

  • Page 77: Ersatzteile - Spare Parts

    OPTIMUM M A S C H I N E N - G E R M A N Y Ersatzteile - Spare parts Spindelstock - Headstock Abb.6-1: Spindelstock - Headstock Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27...

  • Page 78: Spindelstock - Headstock

    OPTIMUM M A S C H I N E N - G E R M A N Y Spindelstock - Headstock Abb.6-2: Spindelstock - Headstock DE | GB TU3008 | TU3008V Ersatzteile - Spare parts Originalbetriebsanleitung Version 1.0.1 2015-05-27...
  • Page 79 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Spindelstock - Parts list headstock Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Spindelstock Headstock 03427205 1 01 Drehspindel Turn spindle...

  • Page 80: Wechselradgetriebe - Change Gear

    OPTIMUM M A S C H I N E N - G E R M A N Y Wechselradgetriebe - Change gear Abb.6-3: Wechselradgetriebe - Change gear Wechselradgetriebe - Change gear Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no.

  • Page 81: Vorschubgetriebe - Feed Gear

    OPTIMUM M A S C H I N E N - G E R M A N Y Vorschubgetriebe - Feed gear Abb.6-4: Vorschubgetriebe - Feed gear Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27...

  • Page 82: Vorschubgetriebe - Feed Gear

    OPTIMUM M A S C H I N E N - G E R M A N Y Vorschubgetriebe - Feed gear Abb.6-5: Vorschubgetriebe - Feed gear DE | GB TU3008 | TU3008V Ersatzteile - Spare parts Originalbetriebsanleitung Version 1.0.1 2015-05-27...
  • Page 83 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Vorschubgetriebe - Parts list feed gear Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Gehäuse Housing 03427205 3 01 Welle...
  • Page 84 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Vorschubgetriebe - Parts list feed gear Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Dichting Seal 03427205 3 72 Sicherungsring...

  • Page 85: Schlosskasten - Apron

    OPTIMUM M A S C H I N E N - G E R M A N Y Schlosskasten - Apron Abb.6-6: Schlosskasten - Apron Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27 Originalbetriebsanleitung...

  • Page 86: Schlosskasten - Apron

    OPTIMUM M A S C H I N E N - G E R M A N Y Schlosskasten - Apron Abb.6-7: Schlosskasten - Apron DE | GB TU3008 | TU3008V Ersatzteile - Spare parts Originalbetriebsanleitung Version 1.0.1 2015-05-27...
  • Page 87 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Schlosskasten - Parts list apron Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Gehäuse Housing 03427205 4 01 Welle Shaft...

  • Page 88: Planschlitten - Cross Slide

    OPTIMUM M A S C H I N E N - G E R M A N Y Planschlitten - Cross slide Abb.6-8: Planschlitten - Cross slide DE | GB TU3008 | TU3008V Ersatzteile - Spare parts Originalbetriebsanleitung Version 1.0.1 2015-05-27...
  • Page 89 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Planschlitten - Parts list cross slide Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Führung Guide 03427205 6 01 Spindel...

  • Page 90: Oberschlitten - Top Slide

    OPTIMUM M A S C H I N E N - G E R M A N Y Oberschlitten - Top slide Abb.6-9: Oberschlitten - Top slide DE | GB TU3008 | TU3008V Ersatzteile - Spare parts Originalbetriebsanleitung Version 1.0.1 2015-05-27...
  • Page 91 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Oberschlitten - Parts list top slide Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Hülse Sleeve 03427205 7 01 Welle...

  • Page 92: Maschinenbett - Machine Bed

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.10 Maschinenbett - Machine bed Abb.6-10: Maschinenbett - Machine bed DE | GB TU3008 | TU3008V Ersatzteile - Spare parts Originalbetriebsanleitung Version 1.0.1 2015-05-27...

  • Page 93: Maschinenbett - Machine Bed - Tu3008V

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.11 Maschinenbett - Machine bed - TU3008V Abb.6-11: TU3008V - Maschinenbett - Machine bed Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27...
  • Page 94 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Maschinenbett - Parts list machine bed - TU3008V Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Maschinenbett Machine bed 03427205 8 01...

  • Page 95: Reitstock - Tailstock

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.12 Reitstock - Tailstock Abb.6-12: Reitstock - Tailstock Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27 Originalbetriebsanleitung...
  • Page 96 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste Reitstock - Parts list tailstock Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Platte Plaze 03427205 9 01 Gehäuse Housing...

  • Page 97: Mitlaufende Lünette - Follow Rest

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.13 Mitlaufende Lünette - Follow rest Abb.6-13: Mitlaufende Lünette - Follow rest 6.14 Feststehende Lünette - Steady rest Abb.6-14: Feststehende Lünette - Follow rest...
  • Page 98 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste mitlaufende Lünette - Parts list follow rest Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Mitlaufende Lünette Follow rest 03427205 20 01...

  • Page 99: Drehfutterschutz - Lathe Chuck Cover

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.15 Drehfutterschutz - Lathe chuck cover Abb.6-15: Drehfutterschutz - Lathe chuck cover Teileliste Drehfutterschutz - Parts list lathe chuck cover Menge Grösse...

  • Page 100: Späneschutz - Chip Protection

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.16 Späneschutz - Chip protection Abb.6-16: Späneschutz - Chip protection Teileliste Späneschutz - Parts list chip protection Menge Grösse Artikelnummer Bezeichnung Description Qty.

  • Page 101: Schaltplan - Wiring Diagram - Tu3008

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.17 Schaltplan - Wiring diagram - TU3008 Abb.6-17: Schaltplan - Wiring diagram Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27...
  • Page 102 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste elektrische Bauteile - Parts list electrical parts - TU3008 Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. 1B2.1 Schalter Riemenabdeckung...

  • Page 103: Schaltplan - Wiring Diagram - Tu3008V

    OPTIMUM M A S C H I N E N - G E R M A N Y 6.18 Schaltplan - Wiring diagram - TU3008V Abb.6-18: Schaltplan - Wiring diagram Ersatzteile - Spare parts TU3008 | TU3008V DE | GB Version 1.0.1 2015-05-27...
  • Page 104 OPTIMUM M A S C H I N E N - G E R M A N Y Teileliste elektrische Bauteile - Parts list electrical parts - TU3008V Menge Grösse Artikelnummer Bezeichnung Description Qty. Size Item no. Brushlesscontroller Brushlesscontroller 034272051A0...

  • Page 105: Malfunctions

    OPTIMUM M A S C H I N E N - G E R M A N Y Malfunctions Cause/ Malfunction Solution possible effects Machine does not turn on • Position switch lathe chuck protec- • Check position switch lathe chuck...

  • Page 106: 7 Malfunctions

    OPTIMUM M A S C H I N E N - G E R M A N Y Cause/ Malfunction Solution possible effects Turned threaded is wrong • Lathe tool is clamped incorrectly or • Set the lathe tool to the centre, grind...

  • Page 107: Appendix 8.1 Copyright

    OPTIMUM M A S C H I N E N - G E R M A N Y Appendix Copyright This document is protected by copyright. All derived rights are reserved, especially those of translation, re-printing, use of figures, broadcast, reproduction by photo-mechanical or similar means and recording in data processing systems, either partial or total.

  • Page 108: Liability Claims For Defects / Warranty

    - Non reproducible software errors  Any services, which OPTIMUM GmbH or one of its agents performs in order to fulfil any additional warranty are neither an acceptance of the defects nor an acceptance of its obli- gation to compensate. Such services do neither delay nor interrupt the warranty period.

  • Page 109: Storage

    Example:not stackable - do not stack further packing case on top of the first one. Consult Optimum Maschinen Germany GmbH if the machine and accessories are stored for more than three months or are stored under different environmental conditions than those spec- ified here .

  • Page 110: Decommissioning

    OPTIMUM M A S C H I N E N - G E R M A N Y 8.5.1 Decommissioning CAUTION! Used machines need to be decommissioned in a professional manner in order to avoid later misuse and endangerment of the environment or persons.

  • Page 111: Disposal Via Municipal Collection

     Modified settings  Any experiences with the lathe which might be important for other users  Recurring failures Optimum Maschinen Germany GmbH Dr.-Robert-Pfleger-Str. 26 D-96103 Hallstadt Fax +49 (0) 951 - 96 555 - 888 email: info@optimum-maschinen.de Appendix TU3008 | TU3008V Version 1.0.1 dated 2015-05-27...
  • Page 112 M A S C H I N E N - G E R M A N Y EC Declaration of Conformity in accordance with the Machinery Directive 2006/42/EC Annex II 1.A The manufacturer / Optimum Maschinen Germany GmbH distributor: Dr.-Robert-Pfleger-Str. 26 D - 96103 Hallstadt...
  • Page 113 M A S C H I N E N - G E R M A N Y EC Declaration of Conformity in accordance with the Machinery Directive 2006/42/EC Annex II 1.A The manufacturer / Optimum Maschinen Germany GmbH distributor: Dr.-Robert-Pfleger-Str. 26 D - 96103 Hallstadt...
  • Page 114 OPTIMUM M A S C H I N E N - G E R M A N Y Index Protective equipment ............15 Adjusting the infeed speed ........35 Protective cover feed rod ............12 Center of gravity ........... 23 lathe chuck ............14 Change gears ............

This manual is also suitable for:

Optiturn tu 3008v

Table of Contents

Save PDF
