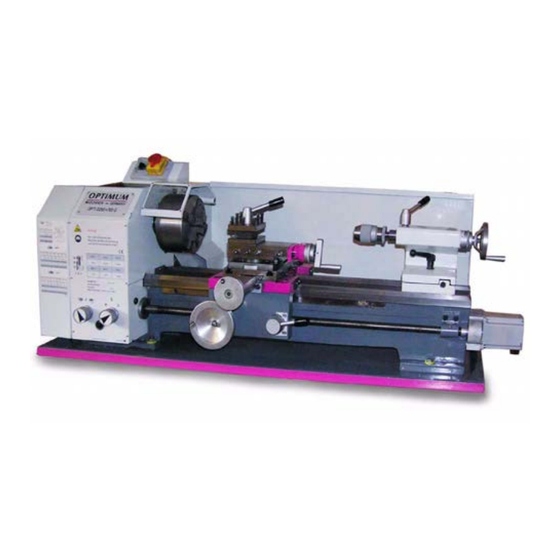

Rebuilding instruction
Version 1.3.3
Add-on kit CNC lathe
D240/D280
Keep for future reference!
30 / 11 / 2007
Add-on kit D240/D280 ; Version 1.3.3
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optimum D240

Summary of Contents for Optimum D240

  • Page 1 M A S C H I N E N - G E R M A N Y Rebuilding instruction Version 1.3.3 Add-on kit CNC lathe D240/D280 Keep for future reference! 30 / 11 / 2007 Add-on kit D240/D280 ; Version 1.3.3 Page 1...

  • Page 2: Table Of Contents

    OPTIMUM M A S C H I N E N - G E R M A N Y Inhaltsverzeichnis Packing list D240/ D280; D240 Vario/ D280 Vario Packing list CNC special rebuilding kit, Z-axis D240/D280 Safety warnings (warning notes) Classification of hazards ......................7 3.1.1 Glossary of symbols ....................
  • Page 3 0 357 0240 08 CNC-08 3M-15 Zahnriemen für Z-Achse 3590210 CNC-09 225 Zähne Gear belt for Z axis (225 teeths) 30 / 11 / 2007 Packing list D240/ D280; D240 Vario/ D280 Vario Add-on kit D240/D280 ; Version 1.3.3 Page 3...
  • Page 4 CNC-12 Step motor X axis 40 V Spindelverlängerung 2 X-Achse 0 357 0210 13 CNC-13 Spindle extension 2, X-axis Page 4 Packing list D240/ D280; D240 Vario/ D280 Vario Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 5 M8 x 1 Hex. Nut 4-conductor x Kabel geschirmt 359 0212 Cable wire protected 0,75mm Datum: Prüfer: Verified by: Date: 30 / 11 / 2007 Packing list D240/ D280; D240 Vario/ D280 Vario Add-on kit D240/D280 ; Version 1.3.3 Page 5...

  • Page 6: Packing List Cnc Special Rebuilding Kit, Z-Axis D240/D280

    Spindelverlängerung für Z-Achse 035702412 CNC-15 Spindel extension, Z-Axis Mutter DIN EN M8 x 1 28675 Datum: Prüfer: Verified by: Date: Page 6 Packing list CNC special rebuilding kit, Z-axis D240/D280 Anbausatz D240/D280 ; Version 1.3.3 30 / 11 / 2007...

  • Page 7: Safety Warnings (Warning Notes)

    3.1.1 Glossary of symbols gives additional indications calls on you to act enumerations 30 / 11 / 2007 Safety warnings (warning notes) Add-on kit D240/D280 ; Version 1.3.3 Page 7...

  • Page 8: Proper Use

    The handwheels need to be disassembled. If the adapter kit is used in any way other than described above, modified without the authorisa- tion of Optimum Maschinen Germany GmbH or operated with different process data, then it is being used improperly.

  • Page 9: Assembly 4.1 Assembly X-Axis

    Illustr.: 4-2: Unscrew lathe chuck protection Draw the lathe chuck protection off the fixture. Safety screw Fixture lathe chuck protection Illustr.: 4-3: Fixture lathe chuck protection 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 9...
  • Page 10 Crank the compound slide with the handwheel to the back. Draw the compound slide backward out of the guiding device. Compound slide Illustr.: 4-6: Remove compound slide Page 10 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 11 Illustr.: 4-8: Remove the screw of the handwheel Remove the handwheel of the com- pound slide to the back off the spin- dle. Pull off the hand- wheel Illustr.: 4-9: Remove handwheel 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 11...
  • Page 12 Unscrew the 3 fastening screws of the graduated collar. Pull off the graduated collar from the spindle. Fastening screw Graduated collar of the X axis Illustr.: 4-12: Pillow block X axis Page 12 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 13 Illustr.: 4-14: Spindle X axis Remount the fixture of the lathe Fixture of lathe chuck chuck protection on the machine. protection Fastening screws Illustr.: 4-15: Fixture lathe chuck protection 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 13...
  • Page 14 Illustr.: 4-17: Spindle in lathe chuck CAUTION! For the following works the machine may be connected to the power supply. Page 14 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 15 (part 11) fits into the reamed hole 6 H7. Spindle X axis Shaft elongation Illustr.: 4-20: Check shaft relief CAUTION! Disconnect the machine in order that there is zero potential. 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 15...
  • Page 16 6 H7 of the spindle. CAUTION! Spindle X axis Only reassemble the spindle when the gluing agent has dried out. Shaft elongation Illustr.: 4-23: Elongate the shaft Page 16 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 17 2nd bearing of the spindle Illustr.: 4-25: 2nd bearing of the spindle Fasten the 3 fastening screws of the graduated collar. Fastening screws Graduated collar Illustr.: 4-26: Graduated collar 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 17...
  • Page 18 Tighten the handwheel on the spin- dle with the fastening screws. Handwheel com- pound slide Fastening screw Illustr.: 4-29: Handwheel compound slide Page 18 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 19 Aline at a rectangle to the engine Angle bed. Mark out the holes for the fixture of the housing with a pen. Housing for X axis Illustr.: 4-32: Apply housing 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 19...
  • Page 20 When threading check the correct 90° angle cut of the thread with a 90° angle. Cut thread M6 into the lathe slide. Screw tap M6 Illustr.: 4-35: Lathe slide Page 20 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 21 Calliper gauge Have the measured distance firmly set on the calliper gauge. Pulley Lathe slide Illustr.: 4-38: Measure distance 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 21...
  • Page 22 Screw the step motor (part 15) with the 4 screws (part 19) (M5x12) on the housing (part 9). Step motor Fastening screws Illustr.: 4-41: Fasten step motor Page 22 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 23 When fastening slightly turn the handwheel of the compound slide. The turning guarantees that the housing will be fastened without off- setting the pinion. Fastening screw Illustr.: 4-44: Tighten housing 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 23...

  • Page 24: Assembly Z Axis

    Spindle nut By clamping the apron you can clamp the spindle of the Z axis. This facilitates the assembly. Hook wrench Illustr.: 4-47: Unscrew spindle nut Page 24 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 25 SW 19 the housing. Mark out the holes with a pen on the lathe back. Z axis spindle Illustr.: 4-50: Assembly on the spindle 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 25...
  • Page 26 Grease the spindle of the Z axis and then apply the retention agent "join the shaft". Spindle Z axis Retention agent "join the shaft" Illustr.: 4-53: Prepare spindle Page 26 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 27 Spacer Illustr.: 4-56: Align the housing 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 27...
  • Page 28 Outside edge pulley Illustr.: 4-58: Pulley on the motor Tighten the pulley (part 2) with the hexagon socket screw (part 16). Fastening screw Pulley Illustr.: 4-59: Tighten pulley Page 28 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 29 When tightening the screws make sure that the PVC cover is not too Cover plate firmly fastened. The PVC cover might get damaged. Fastening screw Illustr.: 4-62: Mount cover plate 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 29...
  • Page 30 Illustr.: 4-64: Holes in the terminal block Remove the old angle brackets on the splash board and produce new New angle bracket angle brackets. Splash board Illustr.: 4-65: New angle bracket Page 30 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 31 Illustr.: 4-67: Assembly splash protection Screw the support for the lathe chuck protection to the spindle head again. Support lathe chuck protection Fastening screw Illustr.: 4-68: Support lathe chuck protection 30 / 11 / 2007 Assembly Add-on kit D240/D280 ; Version 1.3.3 Page 31...
  • Page 32 Disassemble the handle of the hand- wheel of the lathe slide. Handle handwheel lathe slide CAUTION! Danger due to rotating parts. Screw driver Illustr.: 4-70: Disassembly handle Page 32 Assembly Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...

  • Page 33: Wiring Of Step Motors On The Machine

    Illustration: 5-3: Twist screening INFORMATION! The shielding will be connected to the terminal block of the engine on one side. 30 / 11 / 2007 Wiring of step motors on the machine Add-on kit D240/D280 ; Version 1.3.3 Page 33...
  • Page 34 Illustration: 5-6: Terminal block CNC Controller INFORMATION! Neither a shielding not an earth cable will be connected to the CNC Controller. Page 34 Wiring of step motors on the machine Add-on kit D240/D280 ; Version 1.3.3 30 / 11 / 2007...
  • Page 35 CNC controller. Example: Motor Controller 30 / 11 / 2007 Wiring of step motors on the machine Add-on kit D240/D280 ; Version 1.3.3 Page 35...

  • Page 36: Mounting Examples Reference Switch D240 And D280

    OPTIMUM Mounting examples reference switch D240 and D280 M A S C H I N E N - G E R M A N Y Mounting examples reference switch D240 and D280 X-Achse Z-Achse Page 36 Universal mounting kit ; Version 1.3.3...

  • Page 37: Appendix 7.1 Copyright

    Disassembly Remove, relieve Toothed belt disc Disc with gearing to receive the toothed belt. 30 / 11 / 2007 Appendix Add-on kit D240/D280 ; Version 1.3.3 Page 38...

  • Page 38: Warranty

    M A S C H I N E N - G E R M A N Y Warranty Within the term of warranty, the company Optimum warrants for a perfect quality of its products and will reimburse any cost for overhaul or exchange of defective parts in case of construction error, fault in material and/or defect of fabrication.

  • Page 39: Product Follow-Up

    Optimum Maschinen Germany GmbH Dr.-Robert-Pfleger-Str. 26 D-96103 Hallstadt Phone +49 (0) 951 - 96 822 - 0 Fax +49 (0) 951 - 96 822 - 22 E-Mail: info@optimum-maschinen.de 30 / 11 / 2007 Appendix Add-on kit D240/D280 ; Version 1.3.3 Page 40...
