Device Management
3.2 Configuring the Device
The management port is a 10/100Base-TX copper Ethernet port with an RJ45
connector. The following is the pin-out for the management port:
8

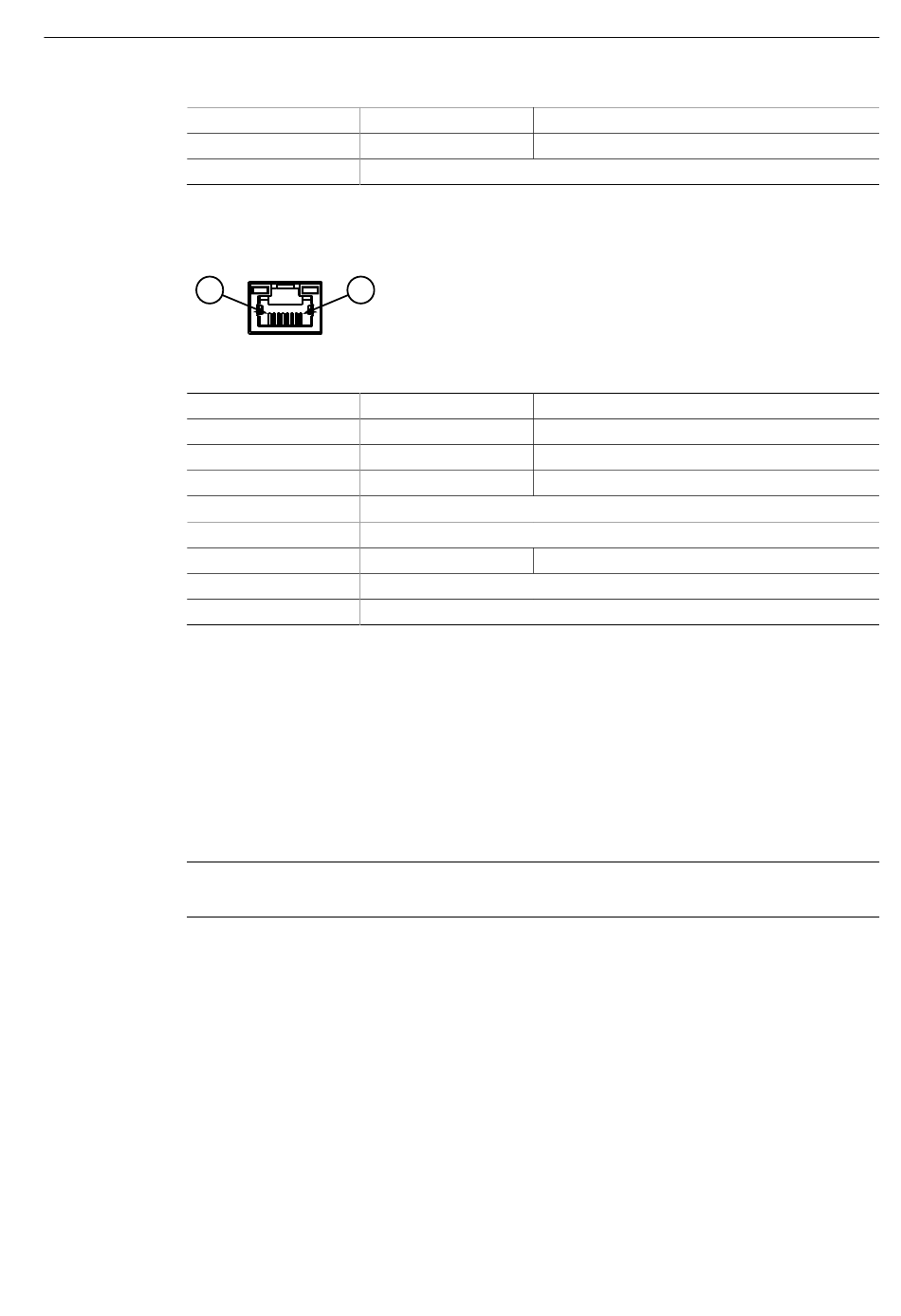

Figure 3.2
Communication Ports
Connect any of the available Ethernet ports on the device to a management
switch and access the RUGGEDCOM RSG2488F console and Web interfaces via the
device's IP address. The factory default IP address for the RUGGEDCOM RSG2488F is
https://192.168.0.1.
If connecting to the management port, use the address https://10.0.0.1.
For more information about available ports, refer to
Note
Single-mode fiber ports only support Ultra Physical Contact (UPC) cable connectors.
3.2

Configuring the Device

Once the device is installed and connected to the network, it must be configured.
All configuration management is done via the RUGGEDCOM RSG2488F interface.
For more information about configuring the device, refer to the RUGGEDCOM ROS-F
Configuration Manual associated with the installed software release.
22
Pin Name
8
9
1
RJ45 Management Port
Pin Name
1
2
3
4
5
6
7
8
CTS
Reserved (Do Not Connect)
TX+
TX-
RX+
Reserved (Do Not Connect)
Reserved (Do Not Connect)
RX-
Reserved (Do Not Connect)
Reserved (Do Not Connect)
Description
Clear To Send
Description
Transmit Data+
Transmit Data-
Receive Data+
Receive Data-
"Modules (Page 25)".
RUGGEDCOM RSG2488F
Installation Manual, 07/2021, C79000-G8976-1351-07
