Installation Manual
SIMATIC NET
Industrial Ethernet Switches
RUGGEDCOM RSG2488F
Edition
11/2019
https://www.siemens.com

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC NET RUGGEDCOM RSG2488F

Summary of Contents for Siemens SIMATIC NET RUGGEDCOM RSG2488F

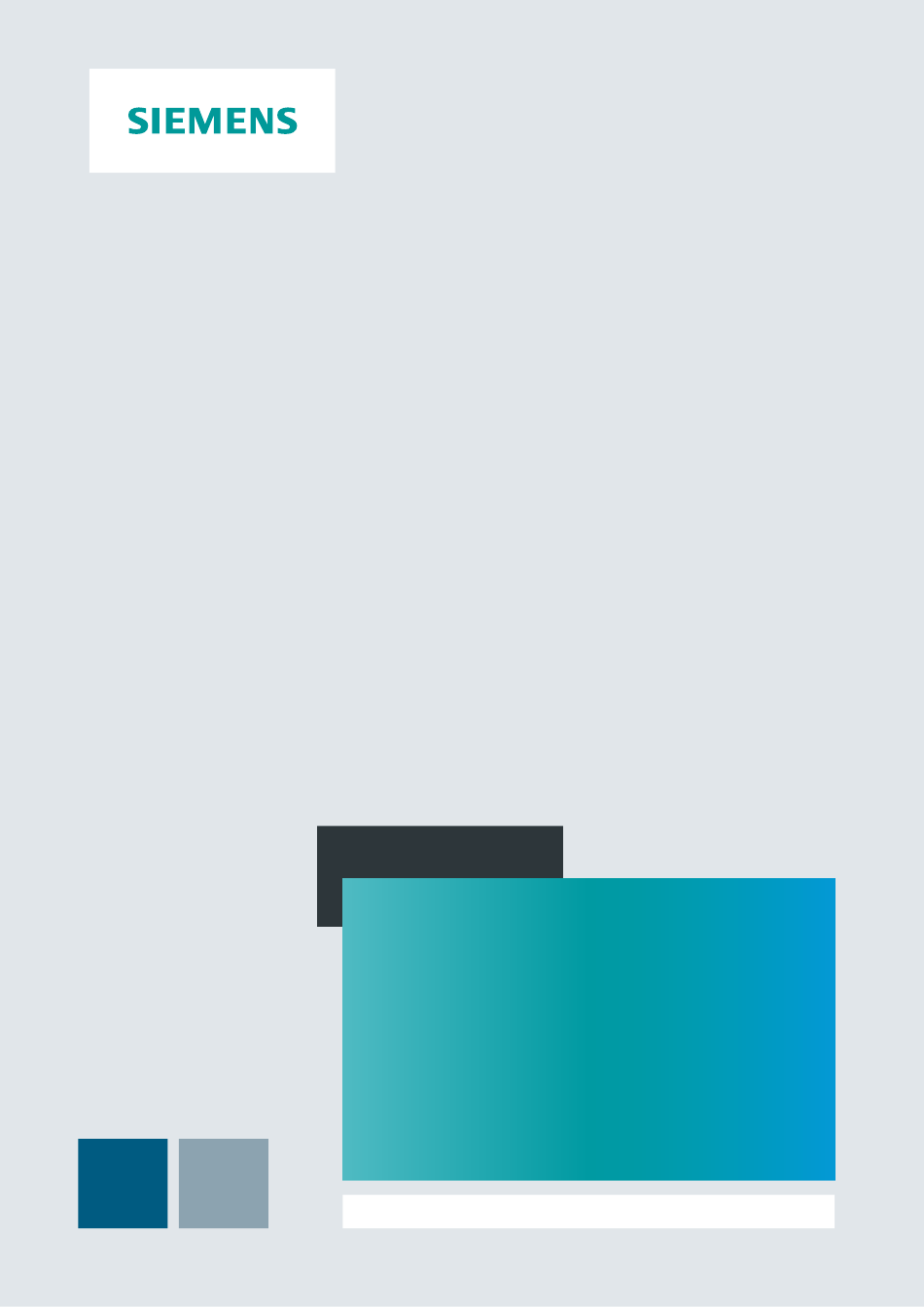

  • Page 1 Installation Manual SIMATIC NET Industrial Ethernet Switches RUGGEDCOM RSG2488F Edition 11/2019 https://www.siemens.com...
  • Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Industrial Ethernet Switches RUGGEDCOM RSG2488F Modules Technical Specifications Installation Manual Certification 11/2019 C79000-G8976-1351-05...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommend- ed or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    Preface ............................v Related Documents ......................... v Accessing Documentation ....................... v Training ........................... v Customer Support ........................vi Contacting Siemens ........................ vi Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 3 Tamper-Evident Security Seals ................3 Cabling Recommendations ..................
  • Page 5 Table of Contents Installing/Removing Power Modules ..............33 Technical Specifications ...................... 37 Power Supply Specifications ................37 Failsafe Alarm Relay Specifications ..............37 Supported Networking Standards ................ 38 Operating Environment ..................38 Mechanical Specifications ..................38 Dimension Drawings ................... 38 Certification .........................

  • Page 6: Preface

    To request or inquire about a user document, contact Siemens Customer Support. Training Siemens offers a wide range of educational services ranging from in-house training of standard courses on networking, Ethernet switches and routers, to on-site cus- tomized courses tailored to the customer's needs, experience and application.

  • Page 7: Customer Support

    Preface Customer Support Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request to submit a Support Request (SR) or check on the status of an existing SR.

  • Page 8: Introduction

    Reliability in Harsh Environments • Immunity to EMI and heavy electrical surges • Zero-Packet-Loss Technology • Supports Siemens FastConnect RJ-45 Cabling System • -40 to 85 °C (-40 to 185 °F) operating temperature (fan-less) RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...

  • Page 9: Description

    Introduction 1.2 Description • Conformal coated printed circuit boards (optional) Description The RUGGEDCOM RSG2488F features various ports, controls and indicator LEDs on the front panel for connecting, configuring and troubleshooting the device. Front Rear Power Modules Power Status LEDs RS-232 Serial Console Port (DB9) Management Port Alarm Indicator LED Access Plate...

  • Page 10: Required Tools And Materials

    Introduction 1.3 Required Tools and Materials Access Plate The removable access plate provides access to the microSD slot. Use a microSD card to load/store the firmware and configuration for the device. For information about using a microSD card, refer to "Insert- ing/Removing the MicroSD Card (Page 20)".

  • Page 11: Cabling Recommendations

    Siemens also does not recommend using copper Ethernet ports to interface with de- vices in the field across distances that could produce high levels of ground potential rise (i.e.

  • Page 12: Supported Fiber Optic Cables

    Introduction 1.5.3 Supported Fiber Optic Cables The following table summarizes the relevant cabling standards: Cabling 1000Base- Required Action Category TX Compliant < 5 New wiring infrastructure required. Verify TIA/EIA-568-A compliance. No action required. New installations should be designed with Cate- gory 5e or higher. No action required.
  • Page 13 Introduction 1.6 Decommissioning and Disposal Decommissioning This device may include sensitive, proprietary data. Before taking the device out of service, either permanently or for maintenance by a third-party, make sure it has been fully decommissioned. For more information, refer to the associated User Guide. Recycling and Disposal For environmentally friendly recycling and disposal of this device and related acces- sories, contact a facility certified to dispose of waste electrical and electronic equip-...

  • Page 14: Installing The Device

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens AG could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.

  • Page 15: Unpacking The Device

    Visually inspect each item in the package for any physical damage. Verify all items are included. NOTICE If any item is missing or damaged, contact Siemens for assistance. Mounting the Device The RUGGEDCOM RSG2488F is designed for maximum mounting and display flexibili- ty.

  • Page 16: Mounting The Device To A Rack

    Installing the Device 2.3.1 Mounting the Device to a Rack Note For detailed dimensions of the device with either rack, DIN rail or panel hardware in- stalled, refer to "Dimension Drawings (Page 38)". 2.3.1 Mounting the Device to a Rack For rack mount installations, the RUGGEDCOM RSG2488F can be ordered with rack mount adapters pre-installed at the front and rear of the chassis.

  • Page 17: Mounting The Device To A Panel

    Installing the Device 2.3.3 Mounting the Device to a Panel To mount the device to a DIN rail, do the following: Align the adapters with the DIN rails and slide the device into place. DIN Rail Panel/DIN Rail Adaptor Screw Figure 2.2 DIN Rail Mounting Install one of the supplied screws on either side of the device to secure the adapters to the DIN rails.

  • Page 18: Connecting The Failsafe Alarm Relay

    Installing the Device 2.4 Connecting the Failsafe Alarm Relay To mount the device to a panel, do the following: Place the device against the panel and align the adapters with the mounting holes. Screw Panel/DIN Rail Adaptor Figure 2.3 Panel Mounting Install the supplied screws to secure the adapters to the panel. Connecting the Failsafe Alarm Relay The failsafe relay can be configured to latch based on alarm conditions.

  • Page 19: Connecting Power

    Installing the Device 2.5 Connecting Power Pluggable Terminal Block for HI Power Supplies Screw-Type Terminal Block for HIP Power Supplies Normally Open Terminal Common Terminal Normally Closed Terminal Figure 2.4 Failsafe Alarm Relay Wiring Connecting Power The RUGGEDCOM RSG2488F supports dual redundant AC and/or DC power supplies that can be installed in any combination.

  • Page 20: Connecting High Ac/Dc Power

    Installing the Device 2.5.1 Connecting High AC/DC Power PS1 terminals. High voltage wiring is always made to the upper Hi terminal block and low voltage (24/48 V) wiring is always made to the lower Lo terminal block. • Use minimum #16 gage wiring when connecting terminal blocks. •...

  • Page 21: Connecting Low Dc Power

    Installing the Device 2.5.2 Connecting Low DC Power Connect the positive wire from the power source to the positive/live (+/L) termi- nal on the terminal block. Screw-Type Terminal Block for HIP Power Supplies Pluggable Terminal Block for HI Power Supplies Positive/Live (+/L) Terminal for PS1 Neutral/Negative (-/N) Terminal for PS1 Positive/Live (+/L) Terminal for PS2 Neutral/Negative (-/N) Terminal for PS2...

  • Page 22: Grounding The Device

    Installing the Device 2.5.3 Grounding the Device Connect the positive wire from the power source to the positive terminal on the terminal block. Screw-Type Terminal Block for 24 and 48 Power Supply Pluggable Terminal Block for 24P and 48P Power Supply Positive Terminal for PS1 Negative Terminal for PS1 Positive Terminal for PS2...

  • Page 23: Wiring Examples

    Installing the Device 2.5.4 Wiring Examples Figure 2.7 Chassis Ground Connection 2.5.4 Wiring Examples The following illustrate how to connect power to single and dual power supplies. Figure 2.8 Single High AC/DC Power Supply Figure 2.9 Single Low DC Power Supply RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...
  • Page 24 Installing the Device 2.5.4 Wiring Examples Figure 2.10 Dual High AC/DC Power Supply Figure 2.11 Dual Low DC Power Supply RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...
  • Page 25 Installing the Device 2.5.4 Wiring Examples Figure 2.12 High AC/DC Power Supply and Low DC Power Supply RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...

  • Page 26: Device Management

    Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RSG2488F console and Web interfaces on the device. For more detailed instructions, refer to the RUGGEDCOM RSG2488F User Guide for the RUGGEDCOM RSG2488F. Serial Console and Management Ports Connect a workstation directly to the serial console or management ports to access the boot-time control and RUGGEDCOM RSG2488F interfaces.

  • Page 27: Configuring The Device

    Device Management 3.2 Configuring the Device The management port is a 10/100Base-TX copper Ethernet port with an RJ45 connec- tor. The following is the pin-out for the management port:   Name Description Transmit Data+ Transmit Data- Receive Data+ Reserved (Do Not Connect) Figure 3.2 RJ45 Management Port Reserved (Do Not Connect)
  • Page 28 Device Management 3.3 Inserting/Removing the MicroSD Card • Do not expose the microSD card to large magnetic or static electric fields • Do not bend or drop the microSD card CAUTION Security hazard – risk of unauthorized access and/or exploitation Make sure to remove the microSD card before decommissioning the device or send- ing the device to a third-party.
  • Page 29 Device Management 3.3 Inserting/Removing the MicroSD Card RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...

  • Page 30: Modules

    Modules The RUGGEDCOM RSG2488F features slots for up to eight field-replaceable line mod- ules, which can be used to expand and customize the capabilities of the device to suit specific applications. A variety of modules are available, each featuring a specif- ic type of communication port: copper Ethernet, fiber optic Ethernet and Small Form- factor Pluggable (SFP).

  • Page 31: Available Modules

    2-Port Copper Ethernet, Fiber Optic Ethernet or SFP Transceiver Available Modules The following modules are available for use with the RUGGEDCOM RSG2488F. For more information about individual modules, refer to the RUGGEDCOM RSG2488 Series Modules Catalog [https://support.industry.siemens.com/cs/ca/en/view/- 109757282]. Power Supply Modules RUGGEDCOM RPM2410 Specifications...
  • Page 32 Modules 4.1 Available Modules Distance: 100 m (328 ft) RUGGEDCOM RMM2473-2RJ45 Specifications Article Numbers Ports: 2 6GK6000-8CG01-2EA0 (Standard) Port Type: RJ45 6GK6000-8CG01-2EA1 Speed: 1000 Mbps (Conformal Coated) Interface: TX Distance: 100 m (328 ft) RUGGEDCOM RMM2473-2M12A Specifications Article Numbers Ports: 2 6GK6000-8CG03-2EA0 (Standard) Port Type: M12 (8-Pin,...
  • Page 33 Modules 4.1 Available Modules Distance: 100 m (328 ft) RUGGEDCOM RMM2473-4M12A Specifications Article Numbers Ports: 4 6GK6000-8CG03-4EA0 (Standard) Port Type: M12 (8-Pin, A-Coded) 6GK6000-8CG03-4EA1 (Conformal Coated) Speed: 1000 Mbps Interface: TX Distance: 100 m (328 ft) RUGGEDCOM RMM2473-4M12X Specifications Article Numbers Ports: 4 6GK6000-8CG04-4EA0 (Standard)
  • Page 34 Modules 4.1 Available Modules Distance: 2 km (1.2 mi) RUGGEDCOM RMM2475-4LC10 Specifications Article Numbers Ports: 4 6GK6000-8FG03-4EA0 (Standard) Port Type: LC 6GK6000-8FG03-4EA1 Mode: SM (Sin- (Conformal Coated) gle-Mode) Speed: 100 Mbps Interface: LX Wavelength: 1310 nm Distance: 10 km (12.4 RUGGEDCOM RMM2465-4LC20 Specifications Article Numbers Ports: 4...
  • Page 35 Modules 4.1 Available Modules Mode: SM (Sin- gle-Mode) Speed: 100 Mbps Interface: FX Wavelength: 1310 nm Distance: 90 km (55.9 RUGGEDCOM RMM2464-4SC2 Specifications Article Numbers Ports: 4 6GK6000-8FX02-4EA0 (Standard) Port Type: SC 6GK6000-8FX02-4EA1 Mode: MM (Mul- (Conformal Coated) ti-Mode) Speed: 100 Mbps Interface: FX Wavelength: 1300 nm Distance: 2 km (1.2 mi)
  • Page 36 Modules 4.1 Available Modules Distance: 50 km (31.1 RUGGEDCOM RMM2465-4SC90 Specifications Article Numbers Ports: 4 6GK6000-8FX03-4EA0 (Standard) Port Type: SC 6GK6000-8FX03-4EA1 Mode: SM (Sin- (Conformal Coated) gle-Mode) Speed: 100 Mbps Interface: FX Wavelength: 1310 nm Distance: 90 km (55.9 RUGGEDCOM RMM2472-2SFP Specifications Article Numbers Sockets: 2...
  • Page 37 Modules 4.1 Available Modules RUGGEDCOM RMM2475-2SFP25 Specifications Article Numbers Ports: 2 6GK6000-8FG53-2EA0 (Standard) Speed: 1000 Mbps 6GK6000-8FG53-2EA1 Interface: LX (Conformal Coated) SFP Included: RUGGED- COM SFP1132-1LX25 RUGGEDCOM RMM2475-2SFP70 Specifications Article Numbers Ports: 2 6GK6000-8FG54-2EA0 (Standard) Speed: 1000 Mbps 6GK6000-8FG54-2EA1 Interface: LX (Conformal Coated) SFP Included: RUGGED- COM SFP1132-1LX70...

  • Page 38: Installing/Removing Line Modules

    Modules 4.2 Installing/Removing Line Modules Interface: LX 6GK6000-8FG53-4EA1 (Conformal Coated) SFP Included: RUGGED- COM SFP1132-1LX25 RUGGEDCOM RMM2475-4SFP70 Specifications Article Numbers Ports: 4 6GK6000-8FG54-4EA0 (Standard) Speed: 1000 Mbps 6GK6000-8FG54-4EA1 Interface: LX (Conformal Coated) SFP Included: RUGGED- COM SFP1132-1LX70 Refer to details for a list of compatible SFPs. Precision Time Protocol (PTP) Modules RUGGEDCOM RMM2431-5PTP Specifications...
  • Page 39 Modules 4.2 Installing/Removing Line Modules Once a line module is removed, all the features associated with the module are hid- den or disabled in RUGGEDCOM RSG2488F. NOTICE Only one Precision Time Protocol (PTP) line module is supported per chassis. CAUTION Contamination hazard – risk of equipment damage Prevent the ingress of water, dirts and other debris that may lead to premature equipment failure.

  • Page 40: Installing/Removing Power Modules

    Modules 4.3 Installing/Removing Power Modules Connect power to the device. Installing a Module To install a line module, do the following: Make sure power to the device has been disconnected and wait approximately two minutes for any remaining energy to dissipate. [Optional] If the device is installed in a rack, remove it from the rack.
  • Page 41 Modules 4.3 Installing/Removing Power Modules Power Supply Module (PS1) Power Supply Module (PS2) Figure 4.4 Power Supply Modules CAUTION Contamination hazard – risk of equipment damage Prevent the ingress of water, dirts and other debris that may lead to premature equipment failure. Always make sure slots are not left empty. Note Power modules are hot swappable.
  • Page 42 Modules 4.3 Installing/Removing Power Modules Installing a Power Module To install a power module, do the following: If equipped, remove the existing module. Insert the module into the empty slot. Screws Power Supply Chassis Figure 4.6 Installing a Power Module Hand-tighten the screws to secure the power module to the chassis. Turn on power to the device and confirm the module is receiving and supplying power.
  • Page 43 Modules 4.3 Installing/Removing Power Modules RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...

  • Page 44: Technical Specifications

    Technical Specifications This section provides important technical specifications related to the device. Power Supply Specifications Note Use the internal fuse rating to determine the size of the external circuit breaker/fuse. Note When determining cable lengths, make sure the minimum input voltage for the pow- er supply is provided at the power source.

  • Page 45: Supported Networking Standards

    Technical Specifications 5.3 Supported Networking Standards Supported Networking Standards 1000 Standard 10 Mbps 100 Mbps Notes Mbps IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1D MAC bridges IEEE 802.1Q VLAN (Virtual LAN) IEEE 802.1p Priority levels IEEE 802.1x Port-based network access control IEEE 802.3 10Base-T IEEE 802.3u...
  • Page 46 Technical Specifications 5.6 Dimension Drawings 442.4 Figure 5.1 Overall Dimensions RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...
  • Page 47 Technical Specifications 5.6 Dimension Drawings 483.5 465.2 21.1 Figure 5.2 Rack Mount Dimensions RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...
  • Page 48 Technical Specifications 5.6 Dimension Drawings 480.5 490.6 DIN Rail Centerline Figure 5.3 Panel and Din Rail Mount Dimensions 110.0 21.8 Figure 5.4 4-Port Line Module Dimensions RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...
  • Page 49 Technical Specifications 5.6 Dimension Drawings 49.8 21.8 Figure 5.5 2-Port Line Module Dimensions 43.9 129.8 Figure 5.6 Power Module Dimensions RUGGEDCOM RSG2488F Installation Manual, 11/2019, C79000-G8976-1351-05...

  • Page 50: Certification

    CSA/EN/IEC/UL 60950-1 Information Technology Equipment – Safety – Part 1: General Requirements) 6.1.2 European Union (EU) This device is declared by Siemens AG to comply with essential requirements and other relevant provisions of the following EU directives: • EN 60950-1 Information Technology Equipment –...

  • Page 51: Fcc

    Respect to the Restriction of Hazardous Substances The device is marked with a CE marking and can be used throughout the European community. A copy of the CE Declaration of Conformity is available from Siemens AG. For contact information, refer to "Contacting Siemens (Page vi)".

  • Page 52: Other Approvals

    Certification 6.1.6 Other Approvals A copy of the Material Declaration is available online at https://support.indus- try.siemens.com/cs/ww/en/view/109738831. 6.1.6 Other Approvals This device meets the requirements of the following additional standards: IEEE 1613 • IEEE Standard Environmental and Testing Requirements for Communications Networking Devices in Electric Power Substations •...
  • Page 53 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severity Levels ± 2 kV Line-to-Line DC Power Ports ± 2 kV Line- to-Earth, ± 1 kV Line-to-Line AC Power Ports ± 4 kV Line- to-Earth ± 2 kV Line-to-Line IEC 61000-4-6 Induced (Con- Signal Ports...
  • Page 54 Description Test Levels Severity Levels AC Power Ports Siemens-specified severity levels EMC Immunity Type Tests per IEEE 1613 Note The RUGGEDCOM RSG2488F meets Class 2 requirements for an all-fiber configura- tion and Class 1 requirements for copper ports. Class 1 allows for temporary commu- nication loss, while Class 2 requires error-free and interrupted communications.
  • Page 55 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels IEC 60068-2-78 Humidity (Damp Test Cab 10 days @ 55 °C (131 °F) Heat, Steady State) and 93% Relative Humidity IEC 60255-21-1 Vibration Level 2 (2 g @ 10 to 150 Hz) IEC 60255-21-2 Shock Level 2 (30 g @ 11 mS)
  • Page 56 Further Information Siemens https://www.siemens.com Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens AG Digital Industry Process Automation Postfach 48 48 90026 NÜRNBERG GERMANY...
