Installing the Device
2.3.2 Mounting the Device on a DIN Rail
Mounting the Device
To mount the device to a DIN rail, do the following:
1.
2.
3.
10
Hook the top teeth of the adapters onto the DIN rail.
3
1
1
2
DIN Rail
1
DIN Rail Adapter
2
Screw
3

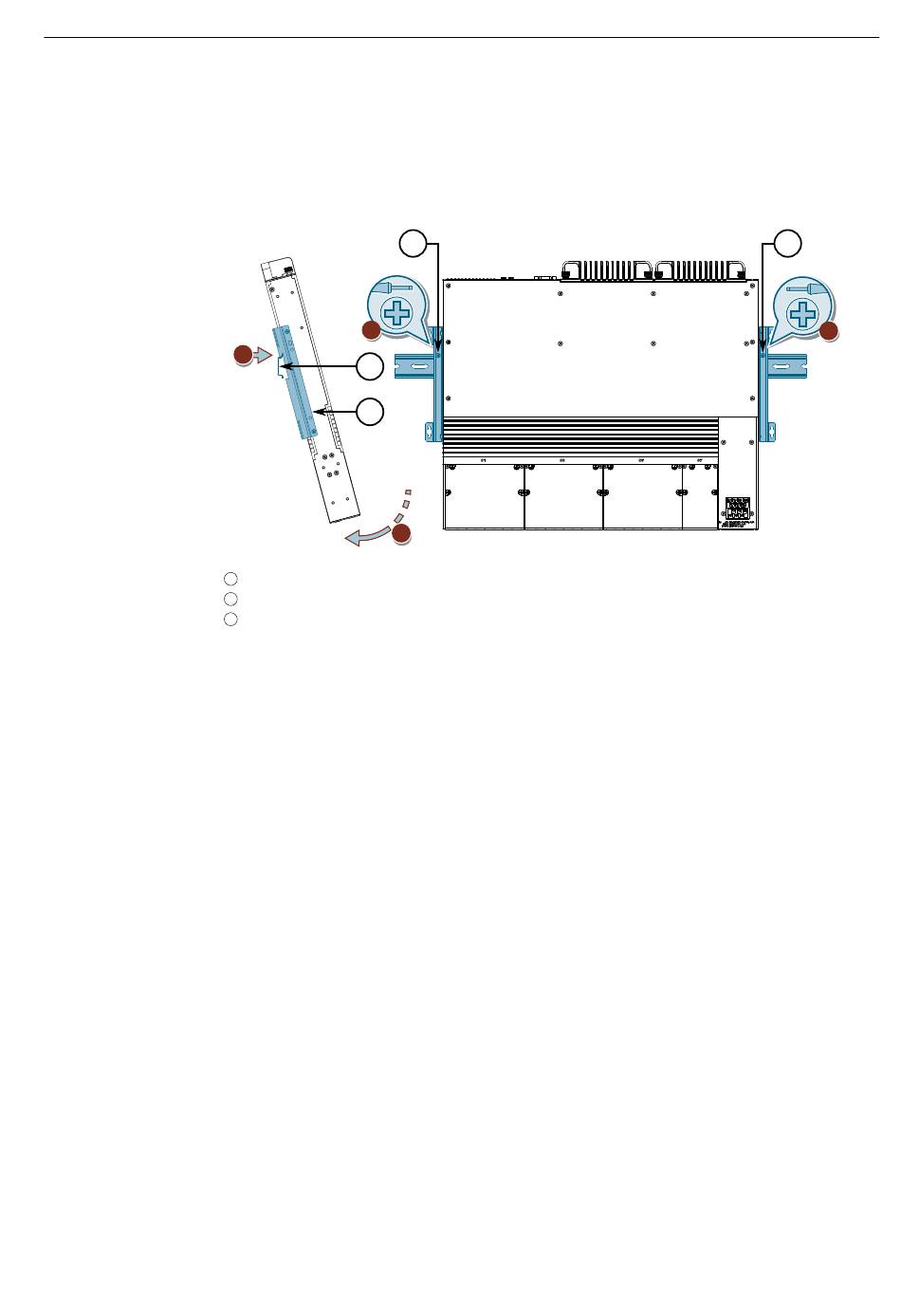

Figure 2.2 Mounting the Device to a DIN Rail
Rest the device against the bottom of the DIN rail.
Secure the device to the DIN rail with at least one screw (supplied). Apply screws
to the adapters on either side of the device.
3
2
3
