Installing Your Switch
4. Carefully slide the power supply all the way into the power supply bay (see
Internal AC Power Supply

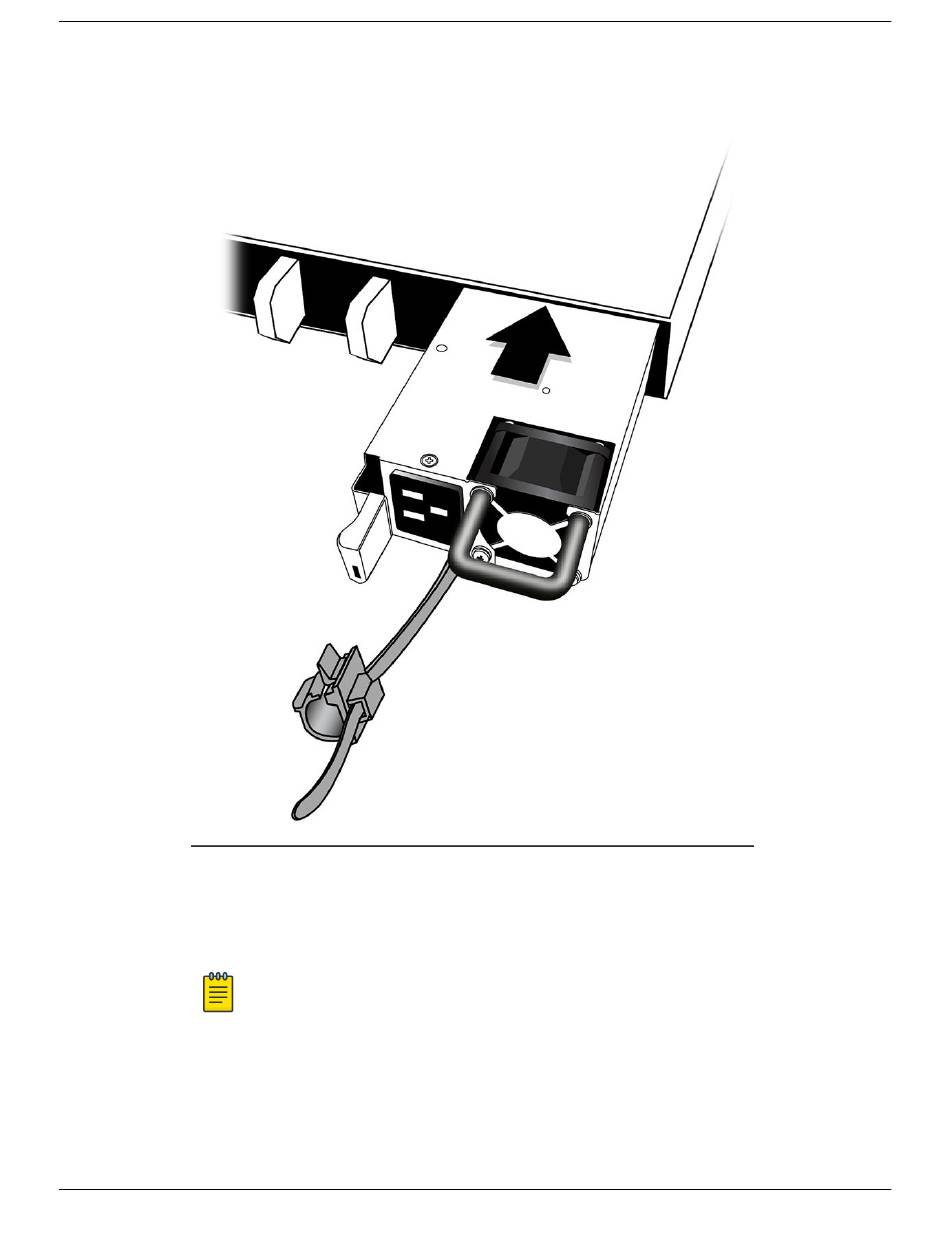

Figure 22: Installing a 750 W AC Power Supply
5. Push the power supply in until the latch snaps into place.
Do not slam the power supply into the switch.
6. Connect the AC power cord.
a. If necessary, slide the plastic cord retainer farther away from the back of the switch.
b. Connect the AC power cord to the input connector.
on page 50).
Note
If power supplies are not installed in both power supply bays, be sure to install a cover
over the unoccupied bay. Unoccupied bays must always be covered to maintain proper
system ventilation and EMI levels.
ExtremeSwitching SLX 9250 Hardware Installation Guide
Installing a 750 W Internal AC Power Supply
Installing a 750 W
