SLX 9250-32C Switch front view

Table 9: SLX 9250 (32 x 100GbE) Hardware Features (continued)
Hardware Features
Packet Buffers
Operating Conditions
The front panel of the SLX 9250 Switch includes:
•
32 100-gigabit Ethernet ports capable of supporting passive copper QSFP28/QSFP+ and active fiber
QSFP28/ QSFP+. With a few exceptions, noted below, these ports are configurable for 100 Gb, 40
Gb, 4x25 Gb, and 4x10 Gb modes. For information about QSFP28 and QSFP+ optical modules, ee
the Extreme Networks Pluggable Transceivers Installation Guide.
•
8 100-gigabit Ethernet ports capable of supporting passive copper QSFP28 and active fiber
QSFP28. These ports are configurable for 100Gb and 40 Gb modes. For information about SFP28
and QSFP28 optical modules, see the Transceivers section of the Hardware Installation Guide.
•
RJ45 serial console port used to connect a terminal and perform local management.
•
USB port for access to external storage.
•
RJ45 out-of-band 10/100/1000BASE-T management Ethernet port.
•
LEDs to indicate port status and switch operating conditions. For a description of the LEDs and their
operation, see

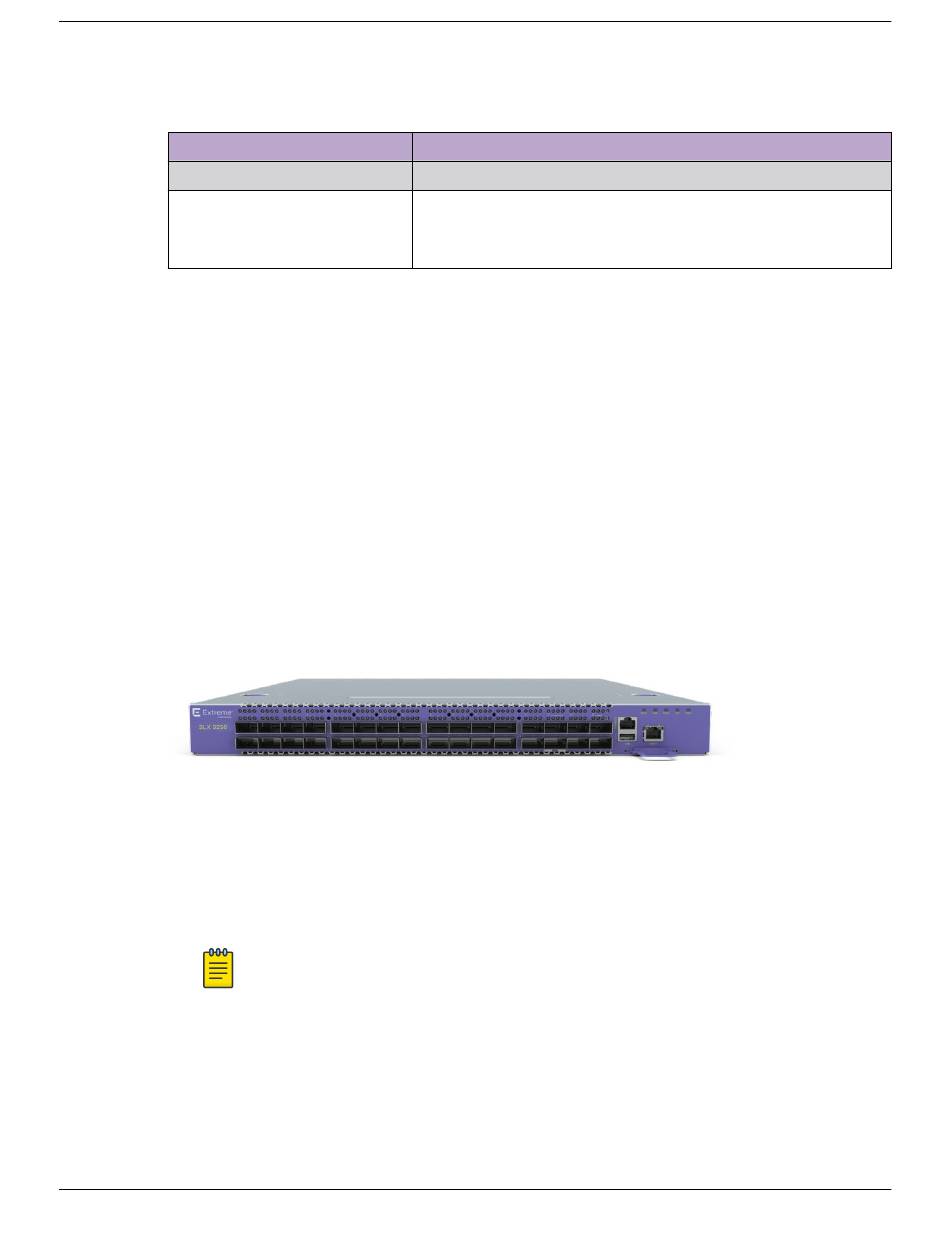

The following illustration shows the front view of the SLX 9250-32C Switch.
SLX 9250-32C Switch front view
The rear panel of the SLX 9250-32C switch includes:
•
Two power supply bays for 750 W AC or DC power supplies.
•
Six bays for replaceable fan modules.
14 ExtremeSwitching SLX 9250 Hardware Installation Guide
Description
32MB
• 0 deg - 45 deg C operation
• 10% to 95% relative humidity, non-condensing
• 0 - 3000 meters altitude
SLX 9250 Series Switch LEDs
Note
The color of the tab on the fan tray indicates the airflow direction:
◦ Red: front-to-back
◦ Blue: back-to-front
The operating-system software cannot display the airflow direction.
on page 62 section of the guide.
Device Overview
