Installing Your Switch
b. Use four small mounting screws (provided) to attach the bracket to the switch.
c. Secure the long bracket to the rack post.
(Rack-mounting screws are not provided.)
4. Repeat step 3 to attach the other long bracket on the other side of the switch.
5. Tilting the switch slightly, lift it into the rack so that the mounting brackets align with the rack posts.
If the switch cannot be tilted (because other equipment is mounted directly above and below),
remove one or both short mounting brackets from the switch. Lift the switch into position, secure
the flanges (ears) on the long brackets to the rack posts, and then reattach the short brackets.
6. Secure the flanges (ears) on both sides of the switch to the rack posts, using screws that are
appropriate for the rack.
(Rack-mounting screws are not provided.)
The completed installation is shown in the diagrams below: Two-Post Front Mount: Complete and
Two-Post Mid-Mount: Complete.

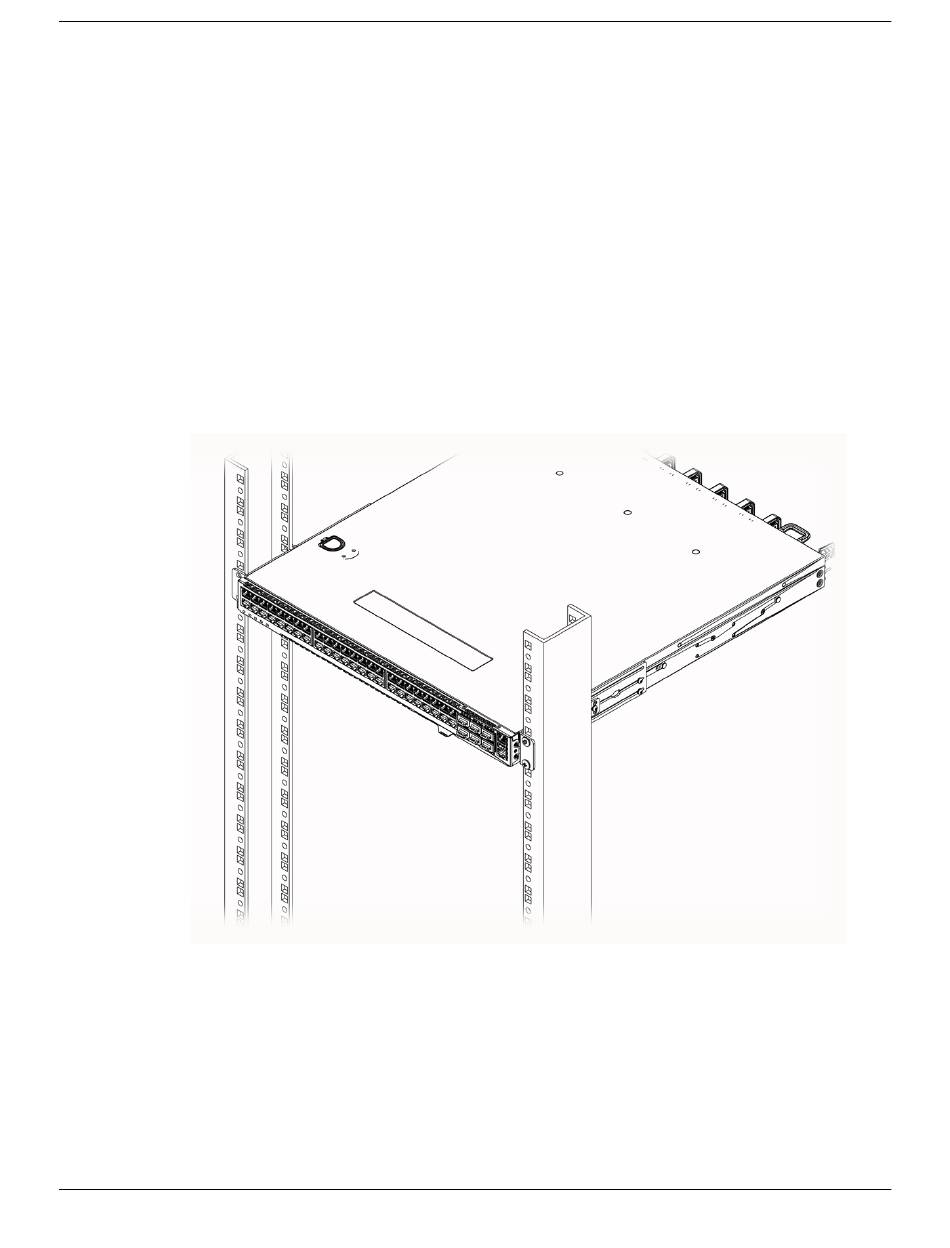

Figure 19: Two-Post Front Mount: Complete
Attaching the Switch to a Two-Post Rack
