Installing Cable
that the bend radius for fiber optic cable equal at least 5 cm (2 in) for each 90-degree turn as shown in
the diagram below - Bend Radius for Fiber Optic Cable.
Note
Kinks and sharp bends can destroy or impair the cable's ability to convey light pulses
accurately from one end of the cable to the other. Use care in dressing the optical fiber cables:
provide satisfactory strain relief to support the cable and maintain an adequate bend radius at
all cable turns, particularly where the cable connects to the I/O module.

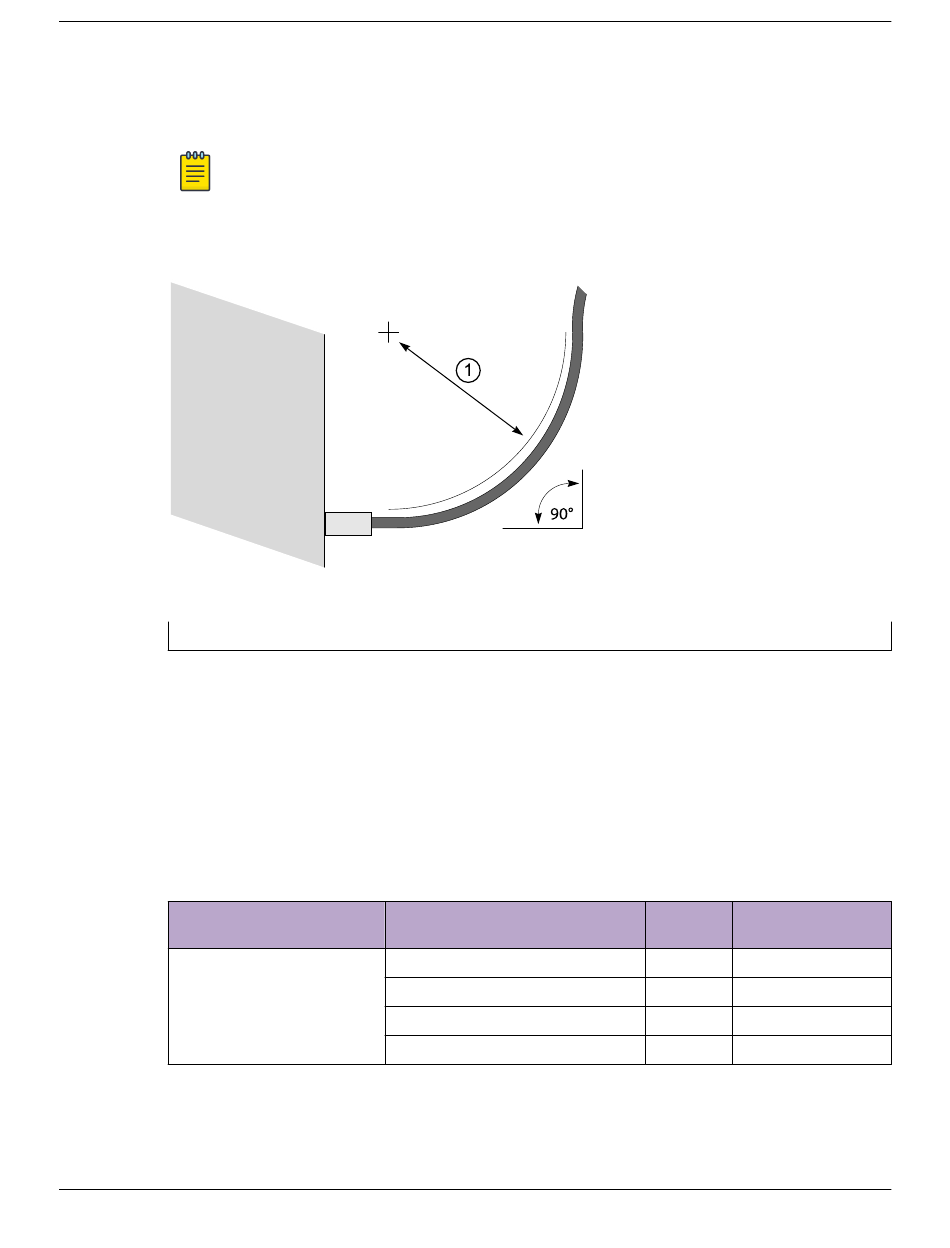

Figure 6: Bend Radius for Fiber Optic Cable
1 = Minimum 5 cm (2 in) radius in 90° bend
Cable Distances and Types
Table 13 Cable Distances and Types below shows one example of cable media types and maximum
distances that support reliable transmission in accordance with international standards (except where
noted). Refer to Extreme Networks Pluggable Transceivers Installation Guide for descriptions of optics
and cables, as well as a complete list of supported cable lengths.
Refer to the Extreme Hardware/Software Compatibility and Recommendation Matrices for a list of the
cable types that are compatible with your equipment.
Table 13: Cable Distances and Types
Standard
1000BASE-SX
(850nm optical window)
28 ExtremeSwitching SLX 9250 Hardware Installation Guide
Media Type
50/125 µm multimode fiber
50/125 µm multimode fiber
62.5/125 µm multimode fiber
62.5/125 µm multimode fiber
Preparing for the Installation
MHz•km Maximum Distance
Rating (Meters)
400 500
500 550
160 220
200 275
