Installing Your Switch
3. Extend the slider assemblies to the full extent. Locate the small white release tab on the mounting
bracket, and push it toward the blue release tab, allowing the mounting bracket to slide the rest of
the way off the slider assemblies. Repeat for the other slider assembly.
4. Attach a mounting bracket to one side of the switch housing. Snap the mounting bracket onto the
housing. Then anchor it in place using the screws provided. See figure Attaching a Mounting Bracket
to One Side of the Switch Housing

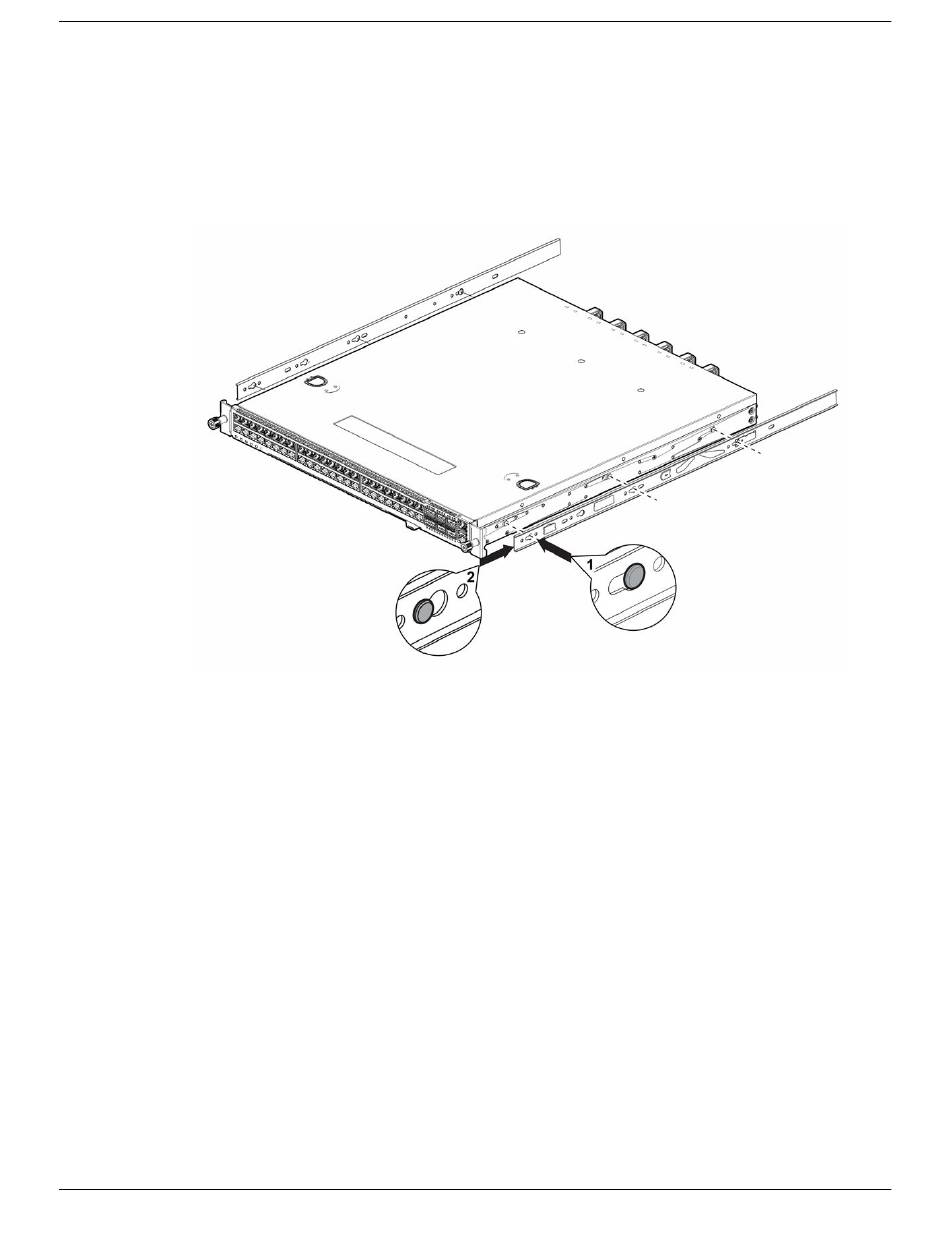

Figure 8: Attaching a Mounting Bracket to One Side of the Switch Housing
5. Repeat step 4 to attach the other mounting bracket to the other side of the housing.
Attaching the Switch to a Four-Post Rack
