The following topics help you monitor the status of the switch/appliance as it is running:
•

SLX 9250 Series Switch LEDs

•
750 W AC Power Supply LEDs
•
750 W DC Power Supply LEDs
SLX 9250 Series Switch LEDs
The following illustrations show the port-side views of the SLX 9250 Switch models showing the port
and system LEDs.
1. 40Gbps/100Gbps QSFP28/QSFP+ Ethernet ports
2. Console port: RJ45
3. USB port
4. Management port: RJ45

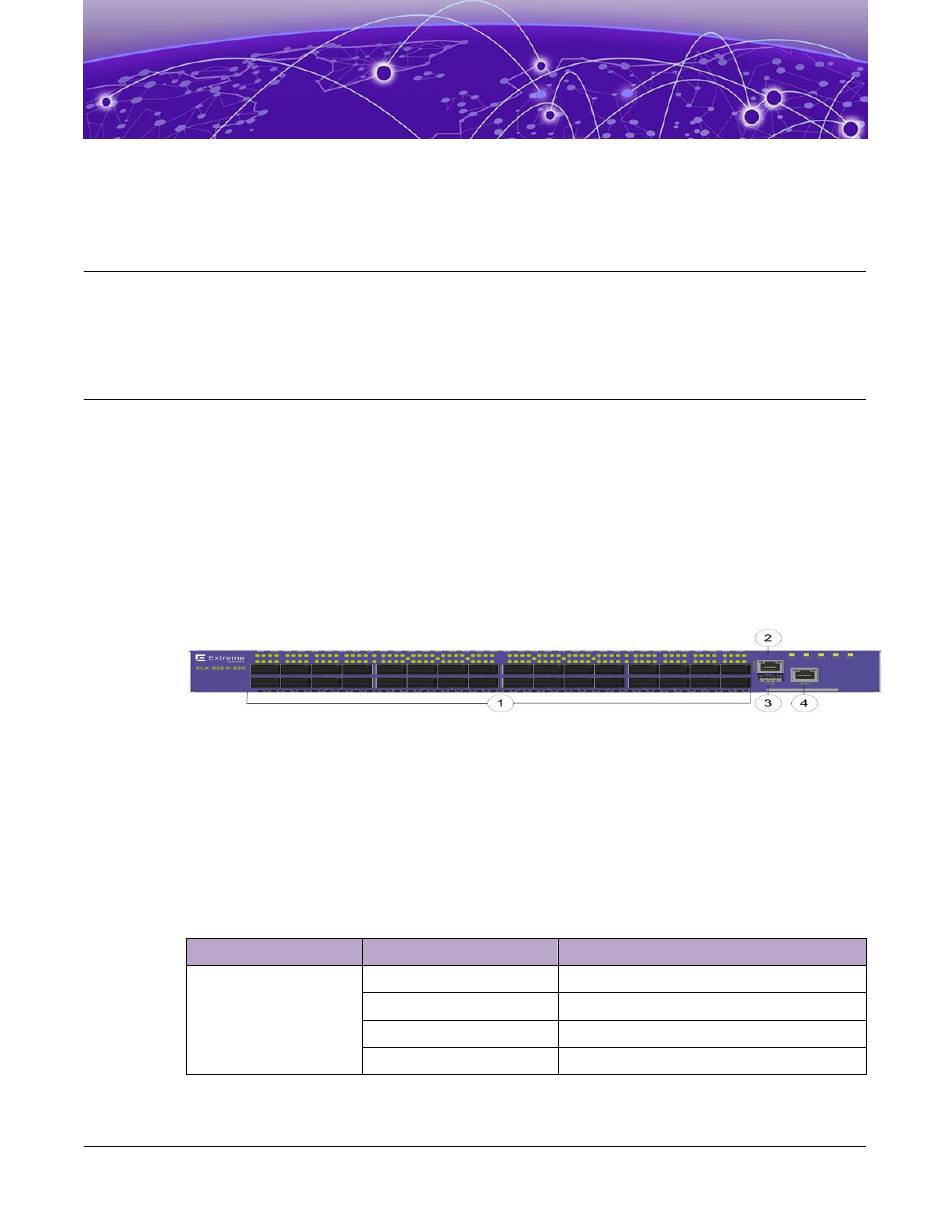

Figure 27: Port-side view of the SLX 9250-32C Switch
SLX 9250-32C LEDs for Data Ports (1-32)
Table 17: LEDs for Data Ports (1-32)
Port Configuration
100 Gb
or 4x25 Gb
62 ExtremeSwitching SLX 9250 Hardware Installation Guide
on page 62
on page 62
on page 63
on page 64
Color/State
Steady green
Blinking green
Slow blinking green
Off
Meaning
Port OK
Port transmitting or receiving
Port disabled by software
No link/Fault
