Adjustments

6 Adjustments
6.1

Adjustment of the gripping range

Before the product can be lifted and transported, the gripping range has to be adjusted to the dimensions of the
product.
Otherwise is not ensured that the clamping force for the secure gripping of the gripping good is adequate and it could
slide down!
●
The adjustment of the gripping range may never take place on both sides at the same time.
Always adjust the gripping range first to the one and then on the other side.
●
Release bolt with half ring (1), through pulling out of the safety clips(2).
●
Pull the bolt with half ring (1) out at the opening range adjustment.
Slide the rectangular tubes apart, until the opening range is about 5 cm greater than the product.
●
Insert the bolt with half ring (1) again and safe it with the safety clip (2).
●
The adjustment of the gripping range has to follow general symmetrical.
That means, it must be used in each case the same adjustable hole with both rectangular tubes.
●
Caution while adjusting of the gripping range. There is a danger of injuring the hands!
●
Check all existing safety elements (such as linchpins) for perfect function and replace defective safety
elements.

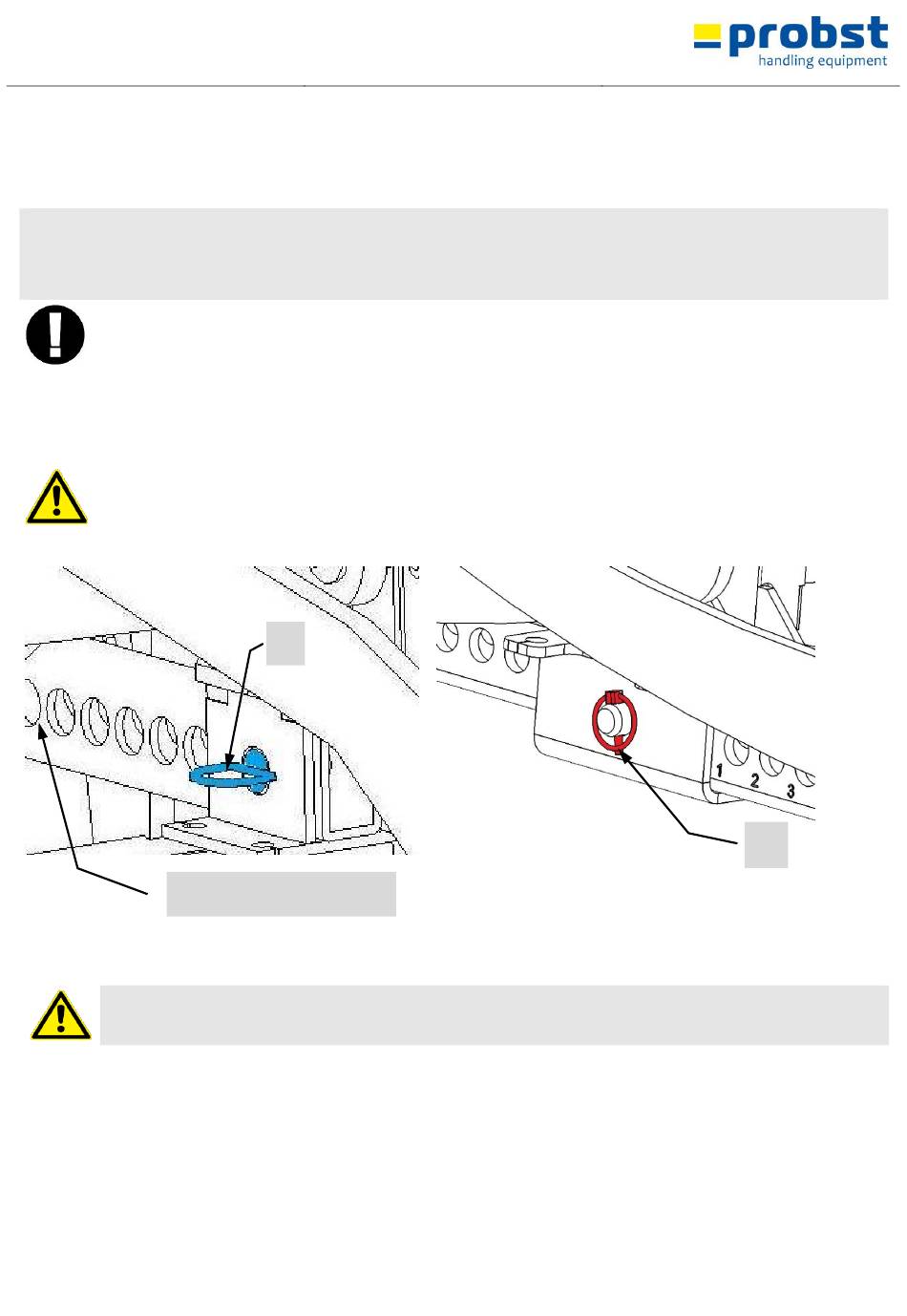

Gripping range adjustment
6.2

Gripping range

The adjustment of the gripping range has to follow general symmetrical.
That means, it must be used in each case the same adjustable hole with both rectangular tubes
