Adjustment of the height adjustable support (accessories)

When using the device (FTZ-multi 15-D) in batch operation, for gripping of single stone slabs (batched one upon
the other), we advise to use the accessories "height adjustable support" (43100867)! – see figure).
Therefore, the inside height must not always adjusted again for gripping goods with the same dimensions When
picking up in batch operation the top stone slab may only be lifted!
Caution while adjusting of the gripping range. There is danger of injuring the hands!
●

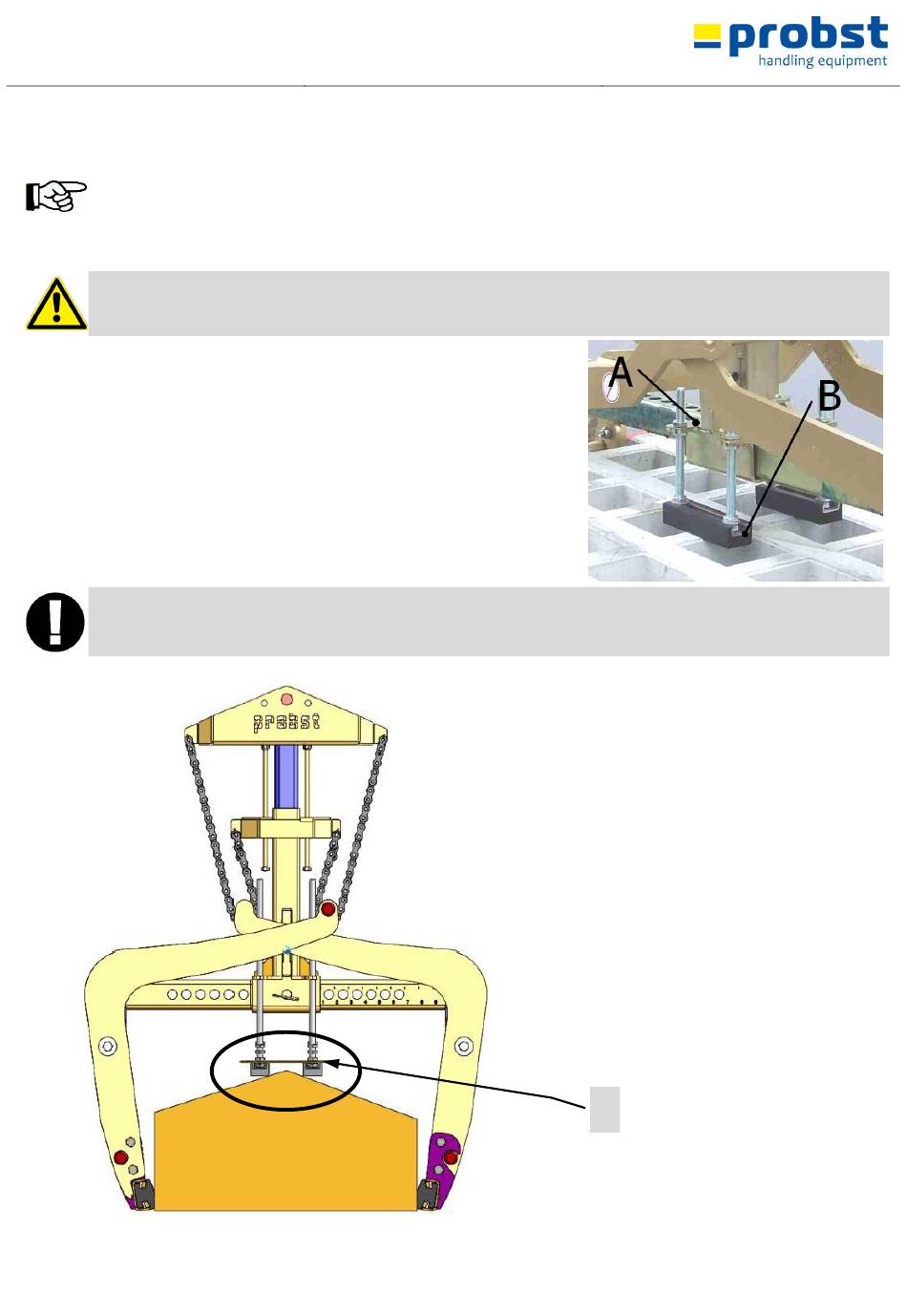

The "height adjustable support" (B) is attached to the mounting
plate of the height adjustable support" (A)
●
Adjust the "height adjustable support (B) with the adjusting
screws and regard the both "height adjustable supports (B)"
have the same height and that the rubber gripper bars are
positioned in the middle area of stone thickness.
Large-sized stone blocks, "drain kerb stones" or "coping stones " must be gripped in the lowest area.
Furthermore the use the additional "height adjustable support (B)" is necessary, to avoid a safety gripping!
16 / 25
B
Example: coping stones
