Adjustments

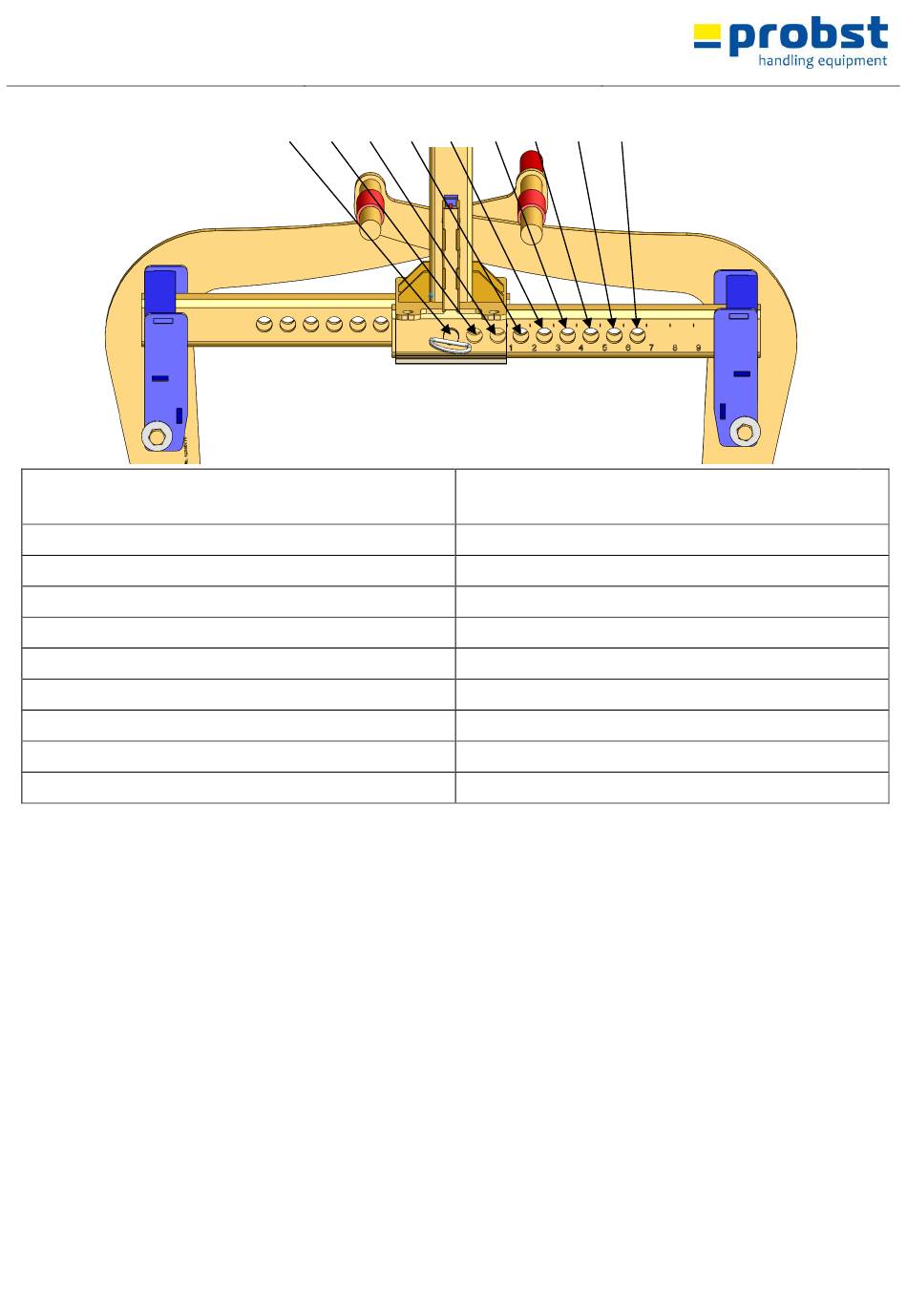

Adjustment of the gripping area through the positions
of the adjustable holes (symmetrical):
Pos.1 + Pos.1
(right) (left)
Pos.2 + Pos.2
(right) (left)
Pos.3 + Pos.3
(right) (left)
Pos.4 + Pos.4
(right) (left)
Pos.5 + Pos.5
(right) (left)
Pos.6 + Pos.6
(right) (left)
Pos.7 + Pos.7
(right) (left)
Pos.8 + Pos.8
(right) (left)
Pos.9 + Pos.9
(right) (left)
14 / 25
1 2 3 4 5
V1
6 7 8 9
Possible gripping areas for gripping goods (product
dimension):
from ~ 780 to
from ~ 730 to
from ~ 610 to
from ~ 550 to
from ~ 470 to
from ~ 380 to
from ~ 300 to
from ~ 200 to
from ~ 110 to
~ 700 mm
570 mm
~ 540 mm
~ 470 mm
~ 370 mm
~ 280 mm
~ 190 mm
~ 100 mm
~ 50 mm
