Manual

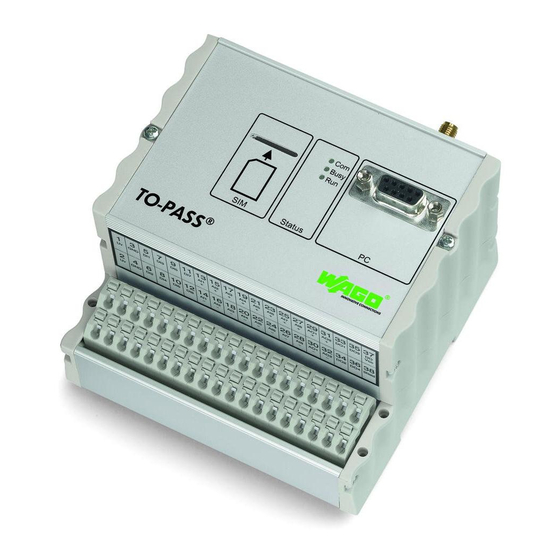

WAGO-TO-PASS® 761
TO-PASS® Mobile, 4 AI, Web, MODBUS
761-316
Telecontrol module for fault detection/indication,
position monitoring and remote control
Version 2.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAGO-TO-PASS 761 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAGO WAGO-TO-PASS 761

Summary of Contents for WAGO WAGO-TO-PASS 761

  • Page 1 Manual WAGO-TO-PASS® 761 TO-PASS® Mobile, 4 AI, Web, MODBUS 761-316 Telecontrol module for fault detection/indication, position monitoring and remote control Version 2.0.0...
  • Page 2 WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS © 2013 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...

  • Page 3: Table Of Contents

    Shielding ..................... 22 3.4.5.1 General ................... 22 3.4.5.2 Bus Lines ..................22 3.4.5.3 Signal Lines ................... 22 3.4.5.4 WAGO Shield Connecting System ..........23 3.4.6 Digital Inputs ..................24 3.4.7 Counter Inputs ..................25 3.4.8 Analog Inputs ..................26 3.4.9 Digital Outputs ...................
  • Page 4 Table of Contents WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.6.5 GSM Communication ................. 32 3.6.6 MODBUS Communication ..............32 3.6.7 Digital Inputs ..................32 3.6.8 Counter Inputs ..................33 3.6.9 Analog Inputs ..................33 3.6.10 Digital Outputs ................... 33 3.6.11...
  • Page 5 WAGO-TO-PASS® 761 Table of Contents 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.9.2 MODBUS Alarm ................75 7.9.3 MODBUS Registers ................76 7.10 Data Logger ..................... 77 7.11 GPS Settings .................... 78 7.12 Writing Parameters to the Module ............80 Operation ....................
  • Page 6 Table of Contents WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.2.3 Example for Logger Script Extension ........119 10.3.2.3 Logger Script FW 2.33 (Counter Inputs) ........121 10.3.2.3.1 Data Format of an LCDx Variable .......... 121 10.3.2.4 Time Request Script FW 2.33 ............. 123 10.4...

  • Page 7: Notes About This Documentation

    Manual by third parties that violate pertinent copyright provisions is prohibited. Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany. Non-observance will involve the right to assert damage claims. Manual...

  • Page 8: Symbols

    Notes about this Documentation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 9 WAGO-TO-PASS® 761 Notes about this Documentation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Manual Version 2.0.0...

  • Page 10: Number Notation

    Notes about this Documentation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Number Notation Table 1: Number notation Number code Example Note Decimal Normal notation Hexadecimal 0x64 C notation Binary '100' In quotation marks, nibble separated with '0110.0100' dots (.)

  • Page 11: Important Notes

    2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications that serve to increase the efficiency of technical progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents.

  • Page 12: Disclaimer

    GPL. According to Section 3b of GPL, we offer you the source code. You can obtain the source code with licensing terms of the Open Source software from WAGO Kontakttechnik GmbH & Co. KG on request. Send your request to support@wago.com with the subject "Open Source TO-PASS Mobile".

  • Page 13: Safety Advice (Precautions)

    WAGO-TO-PASS® 761 Important Notes 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on components while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work.
  • Page 14 Important Notes WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Please not the following information about FCC Part 15! FCC Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1.
  • Page 15 WAGO-TO-PASS® 761 Important Notes 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Protect the components against materials having seeping and insulating properties! The components are not resistant to materials having seeping and insulating properties such as: aerosols, silicones and triglycerides (found in some hand creams).

  • Page 16: Device Description

    Please note that one SIM card is required to operate each TO-PASS telecontrol module and may be obtained from typical service providers such as T-Mobile, VODAFONE or EPlus. WAGO Kontakttechnik GmbH & Co. K.G. is prepared to assist with the selection of the most cost-effective tariff for your application. ®...

  • Page 17: Table 3: Overview Of Functions

    WAGO-TO-PASS® 761 Device Description 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 3: Overview of functions Functionality FW 2.20 FW 2.31 FW 2.32 FW 2.33 Module name length 8 characters*) 16 characters*) 16 characters*) 16 characters*) (Identity) “Prepaid” request Always active...

  • Page 18: View

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS View Figure 1: Front view Position Description SIM Card insert Status indication GPS antenna connection GSM antenna connection PC interface Connecting terminals for the supply, inputs and outputs Manual...

  • Page 19: Connectors

    WAGO-TO-PASS® 761 Device Description 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Connectors 3.4.1 GSM Antenna The screw connector (SMA socket) for the GSM antenna is located at the right top of the housing. Figure 2: GSM Antenna connection Observe the maximum length of the antenna cable!

  • Page 20: Operating Voltage

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.4.3 Operating Voltage Use SELV/PELV power source only! ® The TO-PASS telecontrol module must only be powered from a PELV (Protective Extra Low Voltage) or SELV (Safety Extra Low Voltage) power source complying with the limited power source (LPS) requirements per DIN EN 60950-1.

  • Page 21: Grounding

    The separate grounding of the carrier rail can be easily set up with the aid of the WAGO ground wire terminals. Table 5: WAGO ground wire terminals Item No. Description 283-609 1-conductor ground (earth) terminal block make an automatic contact to the carrier rail;...

  • Page 22: Shielding

    Higher shielding performance is achieved via low-impedance connection between shield and ground. To achieve this, connect the shield over a large surface area, e.g., WAGO shield connecting system. This is especially recommended for large- scale systems where equalizing current or high impulse-type currents caused by atmospheric discharge may occur.

  • Page 23: Wago Shield Connecting System

    3.4.5.4 WAGO Shield Connecting System The WAGO shield connecting system consists of shield clamping saddles, busbars and various mounting carriers to enable a wide variety of setups. For more information on this, refer to the "Accessories" section of the main catalog.

  • Page 24: Digital Inputs

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.4.6 Digital Inputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Table 6: Terminal assignment for digital inputs Figure 6: Terminal assignment for digital inputs...

  • Page 25: Counter Inputs

    WAGO-TO-PASS® 761 Device Description 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.4.7 Counter Inputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Digital inputs D1 … D4 can be configured as counter inputs. Table 7: Counter input pin assignments...

  • Page 26: Analog Inputs

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.4.8 Analog Inputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Table 8: Terminal assignment for analog inputs Figure 8: Terminal assignment for analog inputs...
  • Page 27 WAGO-TO-PASS® 761 Device Description 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Analog inputs are single-ended! The analog inputs are single-ended and the “Aix–” connections are connected internally to the “GND” connections. Connect shielding! Shielded cables are required for analog inputs. The cable shield must be connected to the grounded DIN rail (see section "Connections"...

  • Page 28: Digital Outputs

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.4.9 Digital Outputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Table 9: Terminal assignment for digital outputs Figure 9: Terminal assignment for digital outputs...

  • Page 29: Serial Interface To The Pc And Modbus Interface

    WAGO-TO-PASS® 761 Device Description 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.4.10 Serial Interface to the PC and MODBUS Interface Table 10: Serial interface to the PC and MODBUS interface Description Not assigned Not assigned Not assigned MODBUS RX Figure 10: Serial interface to the PC...

  • Page 30: Display Elements

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Display Elements Table 13: Display Elements Busy Description Green 0.5 Hz Ready to operate blinking Communication via RS232 Green interface Green 1 Hz Firmware update blinking GSM modem is activated Initialization (takes approx.

  • Page 31: Technical Data

    -40 °C ... +85 °C Type of mounting DIN 35 rail Degree of protection IP 20 Wire connection Terminal strips (WAGO 250 Series) with push-wire connection Cross section 0,5 mm² … 1,0 mm² AWG 22 … AWG 14 „sol“ Stripped length 9 mm …...

  • Page 32: Gps Antenna Connection

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.6.4 GPS Antenna Connection Table 17: Technical Data GPS Antenna Connection Connection SMA socket Cable length (max.) 30 m Frequency range 1575.42 MHz (GPS L1) Bandwidth ±1.023 MHz Gain 1.5 dBi ...

  • Page 33: Counter Inputs

    WAGO-TO-PASS® 761 Device Description 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 3.6.8 Counter Inputs Table 21: Technical Data Counter Inputs No. of counters Max. 4, configurable Counter frequency Max. 2000 Hz Resolution 32 bits Count direction Up/Down 3.6.9 Analog Inputs...

  • Page 34: Approvals

    Device Description WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Approvals The following approvals have been granted to 761-316 telecontrol modules: Conformity Marking UL508 R&TTE Complaint with 1999/5/EG directive (per Article 3.2) RoHS Device complies with European RoHS directive.

  • Page 35: Mounting

    IP20 degree of protection ® The protection class of the TO-PASS telecontrol module is IP 20. For this reason, WAGO Kontakttechnik GmbH & Co. KG recommends mounting in a housing or in a switching cabinet. Ambient temperature -20 °C to +70 °C ®...

  • Page 36: Removing The To-Pass ® Telecontrol Module From The Din Rail

    Mounting WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS ® Removing the TO-PASS telecontrol module from the DIN rail ® Figure 13: Removing the TO-PASS telecontrol module from the DIN rail ® Press the undersurface against the lower DIN rail edge until the TO-PASS telecontrol module is no longer locked in place.

  • Page 37: Connect Devices

    If more than one conductor must be routed to one connection, these must be connected in an up-circuit wiring assembly, for example using WAGO feed- through terminals. Terminate both solid and ferruled conductors without actuation by simply pushing them in.

  • Page 38: Connection Examples

    Connect Devices WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Connection Examples Connect the shield connection to the DIN rail! ® The shield connection of the TO-PASS telecontrol module (shield, terminal 38) must be connected to the DIN rail. The DIN rail must have a low-impedance ground (see section "Connections"...

  • Page 39: Counter Inputs

    WAGO-TO-PASS® 761 Connect Devices 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 5.2.2 Counter Inputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Connect shielding! Shielded cables are recommended for the counter inputs. When using shielded cables, the shield must be routed to the grounded DIN rail (see Section "Connections"...

  • Page 40: Analog Inputs

    Connect Devices WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 5.2.3 Analog Inputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Analog inputs are single-ended! The analog inputs are single-ended and the “Aix–” connections are connected internally to the “GND”...

  • Page 41: Voltage Measurement

    ® since the internal resistance of the TO-PASS telecontrol module depends on the input current. WAGO 857 Series JUMPFLEX Isolation Amplifiers for level conversion may be ® used for voltage measurement via TO-PASS telecontrol modules. Figure 17: Connection example for voltage measurement via U/I converter at input AI1 Manual Version 2.0.0...

  • Page 42: Digital Outputs

    Connect Devices WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 5.2.4 Digital Outputs Only connect SELV/PELV voltages! Only SELV/PELV voltages shall be connected to the device terminals. Figure 18: Example of connection of relay at output DO1 Manual Version 2.0.0...

  • Page 43: Modbus Interface

    WAGO-TO-PASS® 761 Connect Devices 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 5.2.5 MODBUS Interface 5.2.5.1 Serial Interface for MODBUS and PC Figure 19: Connection example for serial interface for MODBUS and PC Manual Version 2.0.0...

  • Page 44: Modbus Rs-485 Network

    Connect Devices WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 5.2.5.2 MODBUS RS-485 Network Figure 20: Connection example for MODBUS RS-485 Network (Fullduplex) Manual Version 2.0.0...

  • Page 45: Commissioning

    Select the CD drive in which you have placed the CD with the operating software. Start the "WAGO TO-PASS_SETUP(2.17).EXE" program, or a newer version in the main directory on the CD. Follow the menu prompting to choose a default installation path.

  • Page 46: Starting The To-Pass Telecontrol Module

    Commissioning WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS ® Starting the TO-PASS Telecontrol Module Do not switch on yet! ® Do not switch on the TO-PASS telecontrol module until you are prompted to do so; do not insert the SIM card for this procedure.
  • Page 47 WAGO-TO-PASS® 761 Commissioning 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS When generating a new configuration file, select the firmware version for the device that implements the required functionality as the first version in the Function selection field. The device versions, along with the associated enabling firmware indices are displayed to make selection easier.

  • Page 48: Parameterizing

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Parameterizing General Settings Select the menu item File Settings for making general settings, such as type of > ® connection, interface or language for the TO-PASS operating interface. Figure 21: General settings...
  • Page 49 WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 25: General settings Interface COM1 ... COMx Here, select the serial interface where the communication cable is connected with a RS-232 connection. Language ® English / Select the langauge for the TO-PASS operator interface here.

  • Page 50: Reading Parameters From The Module

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Reading Parameters from the Module ® After you have set the type of connection for communicating with the TO-PASS telecontrol module, you are then able to read out the parameters of the connected module.

  • Page 51: Identity

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Identity ® Select the TO-PASS telecontrol module to be configured from the project tree; under it, select the Identity option. On the right side you will find the selection field for the function, the display field for the name, the input field for the telephone number, buttons and input fields for the PIN, roaming and prepaid and the input field for the alarm counter.

  • Page 52: Table 26: Configuring The Identity

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 26: Configuring the identity General Function selection You can redifine the firmware version in this selection field, that is to say the available scope of functions (e.g., to ensure compatibility with devices already in use).

  • Page 53: Addresses

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Addresses ® The TO-PASS telecontrol module can communicate with a maximum of four ® transmitters/receivers via GSM. Messages are sent by the TO-PASS telecontrol module as SMS; however, they can also be sent as an e-mail, fax or voice mail, as defined in configuration.

  • Page 54: Table 27: Configuring The Addresses

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 27: Configuring the addresses Phone/Fax/Mail Address 1 ... Enter the target addresses in these fields: Address 4 Transmission as SMS: Enter the mobile phone number of the recipient. Click the button [T2T] when the SMS recipient is also a TO- ®...
  • Page 55 In this field enter the port for the Web portal (e.g., "80" for most http applications) Script (value), In this field enter the script name for data transmission, for for transmitting test purposes, e.g., "wago/saveTO-PASS.php". alarms and status The "saveTO-PASS.php" script checks the version messages indications from transmitted data and forwards this information to the processing script.

  • Page 56: Configuring Inputs And Outputs

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Configuring Inputs and Outputs 7.5.1 Digital Inputs ® Select your TO-PASS telecontrol module from the left side of the project tree using the identifier. Select the input to be configured under Digital Inputs.

  • Page 57: Figure 25: Configuring Digital Inputs 5

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Figure 25: Configuring digital inputs 5 … 8 (when provided) Table 28: Configuring of digital inputs Counters (only for digital inputs 1 … 4) Counters Check this box to use the selected digital input as a counter input.
  • Page 58 Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 28: Configuring of digital inputs Alarm settings First value Check this box to have a message sent when the first limit is exceeded for upward counting or when the first lower limit is violated for downward counting.
  • Page 59 WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 28: Configuring of digital inputs Deactivation text In this field enter the text to be contained in the message transmitted when the digital input has been reset, or when the counted value has violated the second limit.

  • Page 60: Multiplex Input

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.5.2 Multiplex Input You can configure digital inputs DI1 ... DI4 as multiplex inputs. These four inputs will then additionally be read in as a combination and intepreted as a binary number.

  • Page 61: Multiplex Settings

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.5.2.1 Multiplex Settings ® Select your TO-PASS telecontrol module from the left side of the project tree using the identifier. Select the Multiplex Settings option under Multiplex Input. The buttons for enabling multiplex operation and the selection of the recipients of the analog values to be transmitted are provided on the right side.

  • Page 62: Multiplex Alarm Text

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.5.2.2 Multiplex Alarm Text ® Select your TO-PASS telecontrol module from the left side of the project tree using the identifier. Select the Multiplex Table option under the Multiplex Input entry.

  • Page 63: Analog Inputs

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.5.3 Analog Inputs ® Select your TO-PASS telecontrol module from the left side of the project tree using the identifier. Select the input to be configured under Analog Inputs. The parameters of the input are given on the right side.
  • Page 64 Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 31: Configuring the analog inputs Alarm settings First value In this field enter the first limit for which a message is to be sent when this limit is violated (upper/lower limit) (see below).

  • Page 65: Digital Outputs

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.5.4 Digital Outputs ® Select your TO-PASS telecontrol module from the left side of the project tree using the identifier. Select the output to be configured under the entry Digital Outputs.

  • Page 66: Configuring Error Detectors

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Configuring Error Detectors ® The TO-PASS telecontrol module can transmit error messages to a maximum of four recipients. The recipients are informed either directly one after another or (if configured) after expiration of the time delay for acknowledgment. The message ®...
  • Page 67 WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS [4]. Click the [Internet] button to also transmit the message to a Web portal. In addition, you can also specify the analog values that are to be transmitted along with the error message.

  • Page 68: Acknowledgement

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.6.4 Acknowledgement Acknowledgment is the confirmation that a message has actually been sent to the ® recipient. Select the TO-PASS telecontrol module from the project tree using the identifier. Select the entry Acknowledgment under the option Special Functions.

  • Page 69: Transmission Repeat Times

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Transmission Repeat Times ® Select the TO-PASS telecontrol module from the project tree using the identifier. Select the entry Repeat times under the option Special Functions. The input fields for the Web interval, the Web outputs and the SMS interval and buttons for target addresses are located on the right side.

  • Page 70: Table 34: Configuring The Transmission Repeat Times

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 34: Configuring the transmission repeat times Web settings Web interval In this field enter the cycle time in minutes to define the ® intervals that the TO-PASS telecontrol module is to send data to the Internet.
  • Page 71 WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 34: Configuring the transmission repeat times SMS Settings SMS interval Here, enter the cycle time in minutes to define the intervals ® that the TO-PASS telecontrol module is to send data to the addresses defined under Address.

  • Page 72: Time Adjustment

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Time Adjustment ® Select the TO-PASS telecontrol module from the project tree using the identifier. Select the entry Acknowledgment under the option Time setting. The buttons for various settings pertaining to time adjustment are located on the right side.

  • Page 73: Modbus

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS MODBUS The MODBUS functionality facilitates connectivity for MODBUS interface- equipped devices. The devices must be configured as slave devices and are ® connected via PC interface. As a result, the TO-PASS telecontrol module operates as a master.
  • Page 74 Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Polling cycle Here, enter the MODBUS subscriber polling cycle time in multiples of 10 ms. The requested MODBUS subscriber must reply within this time. This means that the polling cycle time is a function of the response time of the slowest subscriber.

  • Page 75: Modbus Alarm

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.9.2 MODBUS Alarm When using the MODBUS functionality, an input of a MODBUS device can be defined that triggers an alarm when it assumes the high state (logical "1"). The alarm request is made via the function code "Read Discrete Inputs" (0x02).

  • Page 76: Modbus Registers

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.9.3 MODBUS Registers A maximum of 64 registers can be read from the connected MODBUS subscribers. The registers are compiled in four groups (1 ... 16, 17 ... 32, 33 ... 48, 49 ...

  • Page 77: Data Logger

    WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.10 Data Logger ® Select the TO-PASS telecontrol module from the project tree using the identifier. Select the entry Data Logger under the option Special Functions. The input field for the cycle time and a button for calculating the average value are located on the right side.

  • Page 78: Gps Settings

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.11 GPS Settings ® First select the TO-PASS telecontrol module to be configured from the project tree, then select the GPS settings option. The input fields for the GPS settings are on the right side:...
  • Page 79 WAGO-TO-PASS® 761 Parameterizing 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 40: Configuring the GPS settings GPS standby GPS standby Click the [Use] button to operate the GPS receiver in standby mode to save power. You can enter the power-on and power- off times in the following fields.

  • Page 80: Writing Parameters To The Module

    Parameterizing WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 7.12 Writing Parameters to the Module ® After you have adapted all parameters for the TO-PASS telecontrol module to your requirements, you have to write the parameters to the connected module.

  • Page 81: Operation

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Operation Remote Query of Process Values ® The TO-PASS telecontrol module offers two options for remote inquiry of the process values available: • Query via SMS ® • Query with the TO-PASS...

  • Page 82: Remote Polling Via Sms

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.1.1 Remote Polling via SMS For remote polling via SMS, send an SMS containing the text "State" to the TO- ® PASS telecontrol module. ® The TO-PASS telecontrol module responds promptly with an SMS to your mobile phone containing all of the current process values.

  • Page 83: Table 42: Items Added To Sms For Counter Inputs

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Example: Table 42: Items added to SMS for counter inputs Value transmitted Explanation Status counter 1 (no counter) e34560000 Status counter 2 (counter active, counter value = 34560000) C10000000 Status counter 3 (counter value changed, value =...

  • Page 84: Remote Polling Using The To-Pass

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS ® 8.1.2 Remote Polling using the TO-PASS Operating Program ® To display the process values with the TO-PASS operator program, select the menu item Visualization > Process values. The program establishes a link to the ®...

  • Page 85: Inputs/Outputs

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.1.2.1 Inputs/Outputs Press the [I/O] button to display the process values of the inputs and outputs. The process values displayed are valid if the on-line display is green. Figure 38: Visualization of the process values...

  • Page 86: Modbus

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.1.2.2 MODBUS Press the [MODBUS] button to display the MODBUS process values. The process values displayed are valid if the on-line display is green. Figure 39: MODBUS process values MODBUS Alarm In this line, the variable for the MODBUS alarm (Module/Register/Text) is displayed with the corresponding value (Alarm/Status).

  • Page 87: Gps

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.1.2.3 Press the [GPS] button to display the GPS process values. The process values displayed are valid if the on-line display is green. Figure 40: GPS process values Following data are displayed:...

  • Page 88: Counters

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.1.2.4 Counters To display the counter process values, click the [Counter] button (possible only when inputs have been configured as counters). The process values displayed are valid when the on-line indicator is highlighted in green.

  • Page 89: Telecontrol

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Telecontrol ® TO-PASS telecontrol modules offer the option of influencing a process remotely with the help of their analog and digital outputs. There are two methods available: • Telecontrol via SMS ®...

  • Page 90: Telecontrol Via Sms

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.2.1 Telecontrol via SMS 8.2.1.1 Setting or Resetting a Digital Output To set or reset a digital output, send an SMS with the text that is entered under ® Activation text or Deactivation text for the output to the TO-PASS telecontrol ®...

  • Page 91: Changing The Counter Value Or Status

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.2.1.2 Changing the Counter Value or Status To change the value or the status of a counter, send an SMS containing the text "Counter" and the corresponding control commands (more than one can be sent) ®...

  • Page 92: Telecontrol With The To-Pass

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS ® 8.2.2 Telecontrol with the TO-PASS Operator Program ® To display the process values with the TO-PASS operator program, select the menu item Visualization > Process values. The program establishes a link to the ®...

  • Page 93: Inputs/Outputs

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.2.2.1 Inputs/Outputs Press the [I/O] button to display the process values of the inputs and outputs. The process values displayed are valid if the on-line display is green. Figure 42: Visualization of the process values...

  • Page 94: Counters

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 8.2.2.2 Counters To display the counter process values, click the [Counter] button (possible only when inputs have been configured as counters). The process values displayed are valid when the on-line indicator is highlighted in green.

  • Page 95: Acknowledging Error Messages

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Acknowledging Error Messages If a waiting time not equal to 0 has been set for the acknowledgment of error ® messages, the TO-PASS telecontrol modules expects an acknowledgment of error messages from the recipient.

  • Page 96: Switching To Standby

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Switching to Standby Standby authorization Switching standby on and off is only possible by subscribers whose telephone number has been entered in the address list! Using the "Standby" function, it is optional to change all messages sent by the ®...

  • Page 97: Displaying The Data Logger (Dsp)

    WAGO-TO-PASS® 761 Operation 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Displaying the Data Logger (DSP) ® The TO-PASS telecontrol module is equipped with a data logger. The size of the data logger depends on the device used and is specified in the technical data.

  • Page 98: Displaying The Event Logger (Esp)

    Operation WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS As an alternative, you can also display all data records saved via Edit > Display all data records or all new data records for the selected telecontrol module via Edit > Display new data records. Here, no distinction is made between DSP or ESP.

  • Page 99: Diagnostics

    WAGO-TO-PASS® 761 Diagnostics 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Diagnostics Test Inputs and Outputs To test the inputs and outputs select the menu option Controller > Test I/O. The following window is displayed: Figure 44: Test inputs and outputs The process values of the inputs are displayed in the upper area and the process values of the outputs are displayed in the lower area.

  • Page 100: Testing The Counter Inputs

    Diagnostics WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Testing the Counter Inputs To test the counter inputs, select the menu item Edit > Test counters. Figure 45: Testing counters The counter statuses are shown at the top of the window, while the counter values, the starting and end values and the limits are shown at the bottom.

  • Page 101: Testing The Connection

    WAGO-TO-PASS® 761 Diagnostics 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Testing the Connection Direct serial link required ® The connection may only be tested with a direct serial link to the TO-PASS telecontrol module. To test the connection, select the menu option Edit > Test SMS/GPRS. The...

  • Page 102: Testing The Modem

    Diagnostics WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Testing the Modem Direct serial link required ® The modem test may only be performed with a direct serial link to the TO-PASS telecontrol module. To test the mode, select the menu item Modem > Test.

  • Page 103: Wago To-Pass Web

    To do this, enter "www.to-pass.com" as the Host address and the value "80" as the Host port. Enter "wago/saveTO-PASS.php" as the script name under Script (Values) and/or under Script (Logger). Enter the information for your SIM card provider for APN access, user name and password (see also Section “Parameter setting”...

  • Page 104: Http Request

    ® The HTTP method "POST" transmits the process image of the TO-PASS ® telecontrol module to the Internet to the WAGO TO-PASS portal. A data set consists of form data in the context of the request (header and data string).

  • Page 105: Data Sets

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3 Data Sets To distinguish the structure of the incoming data sets, the new data sets are marked with a version variable. The variable is structured as “xx.yy”, while “xx”...

  • Page 106: Value Script Fw 2.20 (Standard)

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.1.1 Value Script FW 2.20 (Standard) Table 48: Data format for value script FW 2.20 (Standard) Index Variable Contents Format Identity Identity[8];Serial number[5] Parameter Cycle time[4];Provider[5];Alarm counter[2] Date, time YY/MM/DD,hh:mm:ss;...

  • Page 107: Example Of Value Script Fw 2.20 (Standard)

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.1.1.1 Example of Value Script FW 2.20 (Standard) To improve readability, line breaks have been inserted. ID=TO-PASS;12345 &PA=0000;home ;99 &TI=11/05/05,14:34:21 &D1=1;0&D2=0;0&D3=0;0&D4=0;0&D5=0;0&D6=0;0&D7=0;0&D8=0;0 &A1=+00.00;mA;0&A2=+00.00;mA;0&A3=+00.00;mA;0&A4=+00.00;mA;0 &A5=+00.00;mA;0&A6=+00.00;mA;0&A7=+00.00;mA;0&A8=+00.00;mA;0 &US=Hello &PO=123155.000,5217.9742N,00855.2710E,4.4,74.9,2,214.30,6.0,3.2, 110505.00 Manual Version 2.0.0...

  • Page 108: Value Script Fw 2.31 (Extended)

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.1.2 Value Script FW 2.31 (Extended) Due to extended functionalities, the value script has been extended to include a version designation ("01.01") as well as supply voltage, output values and GPS information.

  • Page 109: Table 50: Meaning Of Flag

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 50: Meaning of flag Flag 1 Flag 2 Flag 3 Flag 4 Flag 5 Flag 6 Flag 7 Flag 8 Flag 1 0: GPS has not been started.

  • Page 110: Example Of Value Script Fw 2.31 (Extended)

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.1.2.1 Example of Value Script FW 2.31 (Extended) To improve readability, line breaks have been inserted. ID=TO-PASS(Ext);12345 &SV=01.01 &PA=0000;home ;99 &TI=11/05/05,12:19:51 &D1=0;0&D2=0;0&D3=0;0&D4=0;0&D5=0;0&D6=0;0&D7=0;0&D8=0;0 &A1=+00.00;mA;0&A2=+00.00;mA;0&A3=+00.00;mA;0&A4=+00.00;mA;0 &A5=+00.00;mA;0&A6=+00.00;mA;0&A7=+00.00;mA;0&A8=+00.00;mA;0 &VS=+25.16;V(Uv);0 DO0000 &AO=+0000;mA;+0400;mA &US=Hello &PO=101550.000,5217.9860N,00855.2699E,4.4,51.5,2,309.35,3.7,2.0,11...

  • Page 111: Value Script Fw 2.33 (Counter Inputs)

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.1.3 Value Script FW 2.33 (Counter Inputs) The counter inputs have resulted in counter data, signal quality and an indicator being added to the display for the value script ("SV=02.00") and to an update of the MODBUS registers and analog outputs.

  • Page 112: Table 52: Alarm Status

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS The counter status shows the last change that has occurred since the last value script transmission, or after a system start (independent of the SMS and logger status).

  • Page 113: Example Of Value Script Fw 2.33 (Counter Inputs)

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.1.4 Example of Value Script FW 2.33 (Counter Inputs) To improve readability, line breaks have been inserted. ID=TO-PASS(Cnt);12345 &SV=02.00 &PA=0000;home ;99 &TI=11/05/05,12:19:51 &D1=0;0&D2=0;0&D3=0;0&D4=0;0&D5=0;0&D6=0;0&D7=0;0&D8=0;0 &A1=+00.00;mA;0&A2=+00.00;mA;0&A3=+00.00;mA;0&A4=+00.00;mA;0 &A5=+00.00;mA;0&A6=+00.00;mA;0&A7=+00.00;mA;0&A8=+00.00;mA;0 &VS=+25.16;V(Uv);0 DO0000 &AO=+00.00;mA;+04.00;mA &C1=0;0;0...

  • Page 114: Logger Script

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2 Logger Script Data transmission to the logger script is activated via cyclical transmission repetitions (Web interval). Data packet information contains the logger's values that have not been acknowledged yet.

  • Page 115: Logger Script Standard

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.1 Logger Script Standard In the standard format, 10 logger entries are transmitted in a packet. Each entry consists of a compressed data set of 14 binary bytes, which are attached to the hexadecimal character string of the variable.

  • Page 116: 10.3.2.1.2 Example For Logger Script Standard

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.1.2 Example for Logger Script Standard To improve readability, line breaks have been inserted. ID=TO-PASS;12345 &PA=0005;home ;99 &TI=11/05/05,14:36:11 &LO= 092D4AD100000000000000000000 562D4AD123000000000000000000 3F2D4AD12A000000000000000000 562D4AD137000000000000000000 562D4AD159000000000000000000 562D4AD164000000000000000000 3F2D4AD169000000000000000000 562D4AD19A000000000000000000 3F2D4AD1A9000000000000000000...

  • Page 117: Logger Script Extension

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.2 Logger Script Extension The logger script has been updated due to extended functionalities. The “02.00” version designation has been assigned due to major modifications. Table 55: Data format for logger script FW 2.31 (extended)

  • Page 118: 10.3.2.2.1 Data Format For Liox Variable

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.2.1 Data Format for LIOx Variable Table 56: Data format for logger script FW 2.31 (extended), Variable LIOx Index Contents Format Message counter Message counter[4]; Event (cyclic logger) Event[2];...

  • Page 119: 10.3.2.2.3 Example For Logger Script Extension

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.2.3 Example for Logger Script Extension To improve readability, line breaks have been inserted. ID=TO-PASS(Ext);12345 &LV=02.00 &PA=0005;home ;99 &TI=11/05/05,08:38:22 &LIO1=0019;09;11/05/05,08:33:44;00;000;000;000;000;000;000;000;000 ;C4A;0;000;000 &LPD1=10;08/01/01,06:33:35;274;0;0;N;0;0;W;00;0;0;0;0;0;0;0 &LIO2=001A;3F;11/05/05,08:34:02;00;000;000;000;000;000;000;000;000 ;BA2;0;000;000 &LPD2=10;08/01/01,06:33:55;274;0;0;N;0;0;W;00;0;0;0;0;0;0;0 &LIO3=001B;56;11/05/05,08:34:26;00;000;000;000;000;000;000;000;000 ;B89;0;000;000 &LPD3=C0;11/05/05,06:34:25;276;C41;2600;N;216;1621;E;0C;4D34;3;26A F;21;11;7;0...
  • Page 120 WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS The calculations for longitudes/latitudes (see below) refer to the format as transmitted in the NMEA data (ccmm.mmmm with cc = degree, mm.mmmm = Angular minute). The cc.mm format is used to indicate the direction (also according to NMEA definition).

  • Page 121: Logger Script Fw 2.33 (Counter Inputs)

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.3 Logger Script FW 2.33 (Counter Inputs) The counter inputs have resulted in counter data and an indicator being added to the display for non-set time (operating hours) to the logger script ("LV=02.01").

  • Page 122: Table 60: Number Of Data Sets

    WAGO TO-PASS® Web WAGO-TO-PASS® 761 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 60: Number of data sets Script Version Counter &LO &LIO &LPD &LCD FW 2.20 FW 2.31 FW 2.31 FW 2.33 FW 2.33 FW 2.33 FW 2.33 Example: navigation of level 3.

  • Page 123: Time Request Script Fw 2.33

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.3.2.4 Time Request Script FW 2.33 If time adjustment is to take place via the Internet, a time request script is transmitted on system start in order to adjust the time when a reply is received.

  • Page 124: Http Response

    The data string must contain the following text: “Values stored” or “Values stored:YY/MM/DD,hh:mm:ss”. Date and time are optional and are required only if the time of the WAGO TO- ® PASS telecontrol module is to be set via the Web portal.

  • Page 125: Example Of Http Response

    WAGO-TO-PASS® 761 WAGO TO-PASS® Web 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS 10.4.1 Example of HTTP Response The HTTP response consists of both header and data string, which are separated by an empty line (<CR><LF> = Carriage Return + Line Feed).

  • Page 126: List Of Figures

    Figure 3: GPS Antenna connection ............... 19 Figure 4: Terminal assignment for operating voltage ........... 20 Figure 5: Example of the WAGO shield connecting system ........ 23 Figure 6: Terminal assignment for digital inputs ..........24 Figure 7: Counter input pin assignments ............... 25 Figure 8: Terminal assignment for analog inputs ..........
  • Page 127 WAGO-TO-PASS® 761 List of Figures 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Manual Version 2.0.0...

  • Page 128: List Of Tables

    Table 3: Overview of functions ................17 Table 4: Terminal assignment for operating voltage ..........20 Table 5: WAGO ground wire terminals ..............21 Table 6: Terminal assignment for digital inputs ........... 24 Table 7: Counter input pin assignments ..............25 Table 8: Terminal assignment for analog inputs ...........
  • Page 129 WAGO-TO-PASS® 761 List of Tables 761-316 TO-PASS® Mobile, 4 AI, Web, MODBUS Table 49: Data format for value script FW 2.31 (extended) ....... 108 Table 50: Meaning of flag ................... 109 Table 51: Counter status ..................111 Table 52: Alarm status ..................112 Table 53: Signal quality (from AT Reference Guide by Telit) ......
  • Page 130 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D-32385 Minden Hansastraße 27 • D-32423 Minden Phone: +49/5 71/8 87 – 0 Fax: +49/5 71/8 87 – 1 69 E-Mail: info@wago.com Internet: http://www.wago.com...

This manual is also suitable for:

761-316

Table of Contents
