Installing the Device
2.5.2 Wiring Examples
HI Power Supply Configurations

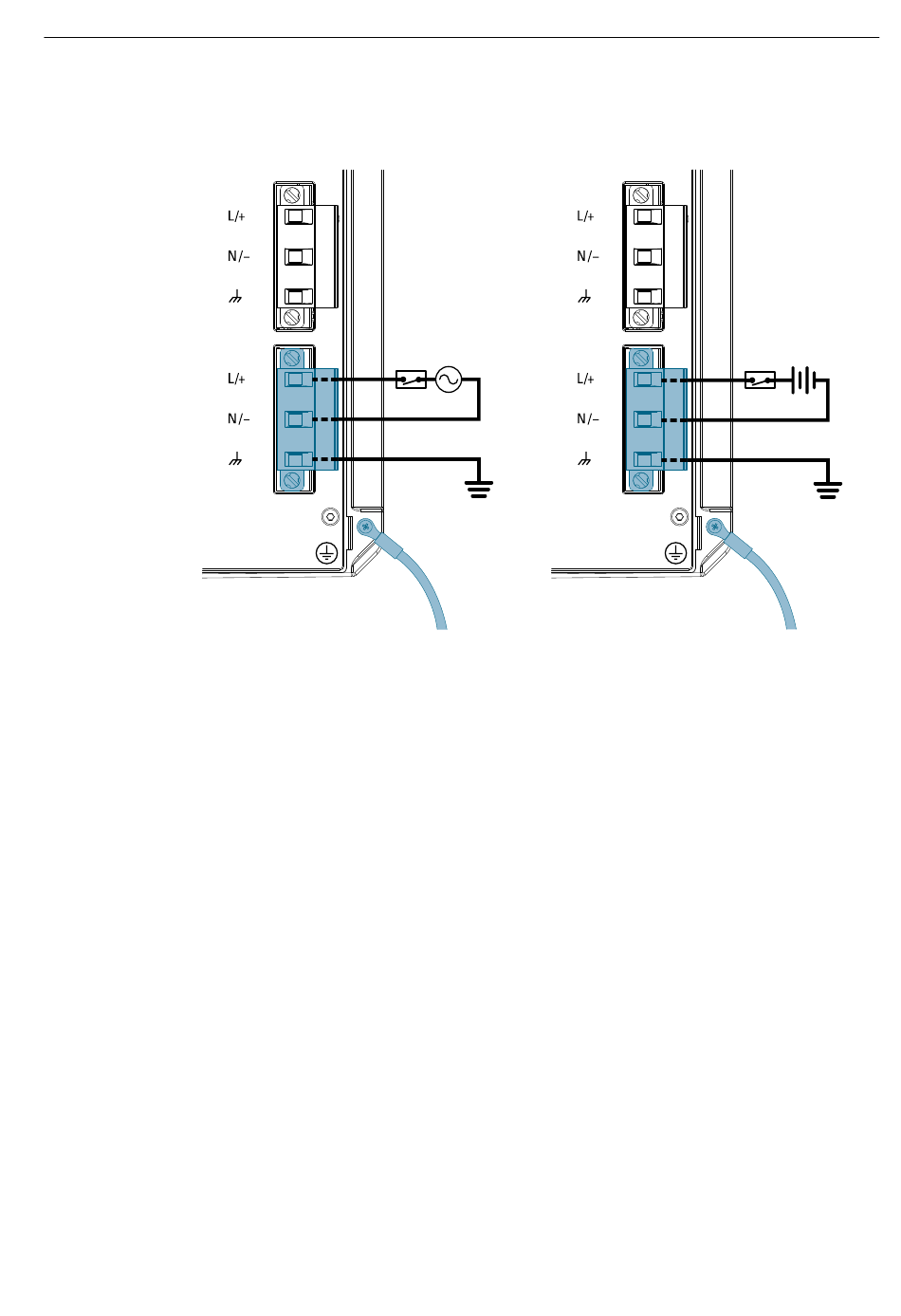

Figure 2.11
16
Single High AC Power Input
Configuration

Figure 2.12
Single High DC Power Input
Configuration
Installation Manual, 02/2020, C79000-G8976-1387-09
-
+
