Installing the Device
2.3.2 Mounting the Device to a Panel
To mount the device to a panel, do the following:
1.
2.
10
Secure the mounting adapters to the top and bottom of the device using the
four M4 screws each included with the device.
1
1
Screw (M4)
1
Panel Mount Adapter
2

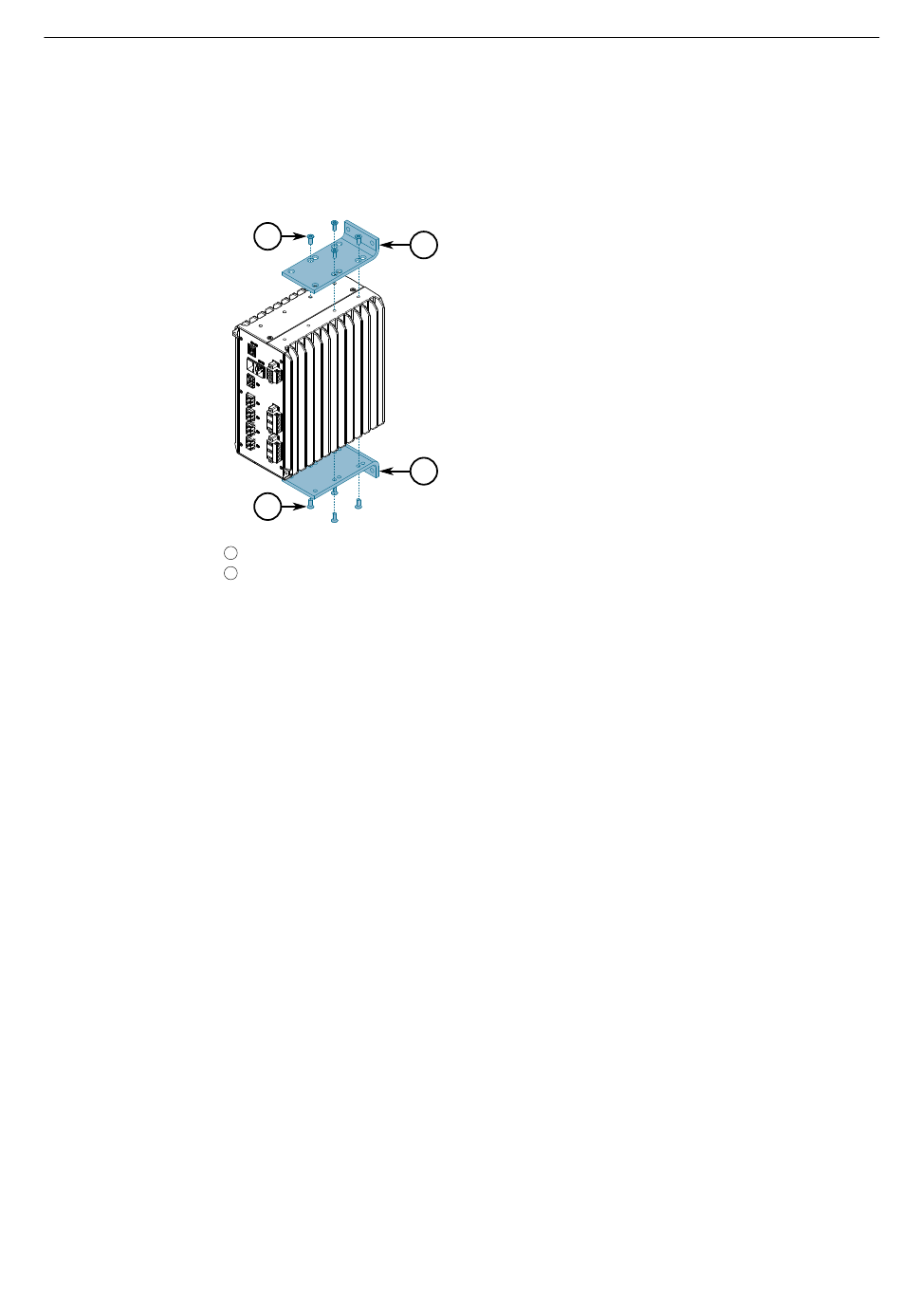

Figure 2.4
Panel Mount Adapter Assembly
Prepare mounting holes in the panel where the device is to be installed.
2
2
RUGGEDCOM RSG907R
Installation Manual, 02/2020, C79000-G8976-1387-09
