DMP Electronics CellCom LTE-V Series Programming And Installation Manual page 11

DMP Panel
12VDC Aux. Output
+
-
1k ohm (for Supervision)
ADEMCO Panel
12VDC Aux. Output
+
-
12VDC BELL +
BELL -
NAPCO Panel
12VDC Aux. Output
+
-
12VDC BELL +
2.2k ohm (for Supervision)
BELL -
DSC Panel
12/24VDC Aux. Output
+
-
12/24VDC BELL +
1k ohm (for Supervision)
BELL -
24VDC Panel
12/24VDC Aux. Output
+
-
24VDC BELL +
4.7k ohm (for Supervision if required)
BELL -
CellCom‑LTE‑V Programming and Installation Guide
J8
B R
Use 18-22 AWG
for Power Supply
connection
J8
B R
Use 18-22 AWG
for Power Supply
connection
J8
B R
Use 18-22 AWG
for Power Supply
connection
J8
B R
Use 18-22 AWG
for Power Supply
connection
10k ohm
J8
B R
Use 18-22 AWG
for Power Supply
connection

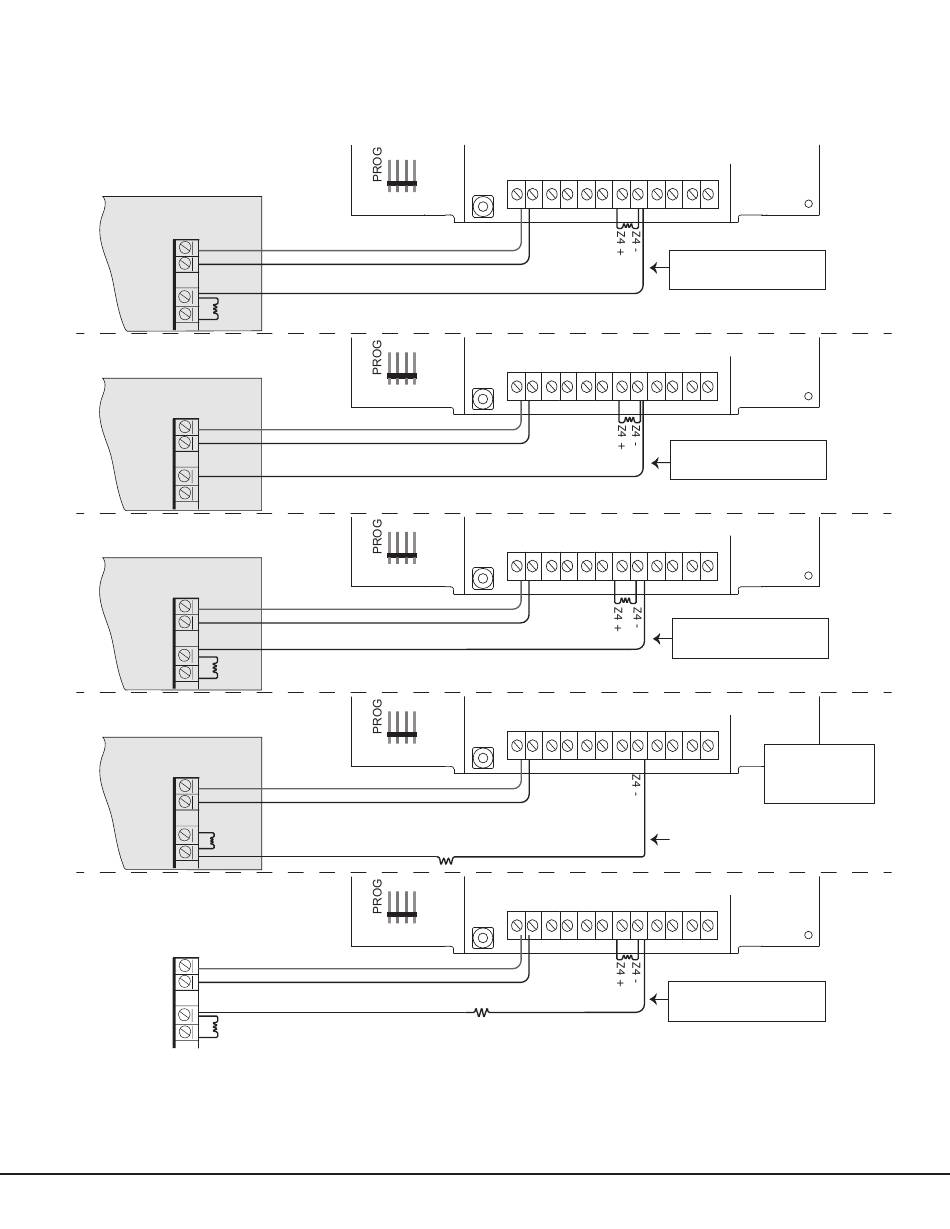

Figure 7: Zone 4 Bell Connection
MODEL CellCom-LTE-V
J9
S3
+12 G Z1 Z2 Z3 G Z4+ Z4-
1k ohm
MODEL CellCom-LTE-V
J9
S3
+12 G Z1 Z2 Z3 G Z4+ Z4-
1k ohm
MODEL CellCom-LTE-V
J9
S3
+12 G Z1 Z2 Z3 G Z4+ Z4-
1k ohm
MODEL CellCom-LTE-V
J9
S3
+12 G Z1 Z2 Z3 G Z4+ Z4-
MODEL CellCom-LTE-V
J9
S3
+12 G Z1 Z2 Z3 G Z4+ Z4-
1k ohm
1k ohm
O1 O2 T R
Voltages above 1.4VDC
are considered Alarm
O1 O2 T R
Voltages above 1.4VDC
are considered Alarm
O1 O2 T R
Voltages above 1.4VDC
are considered Alarm
Program Zone 4
O1 O2 T R DO - Alarm
AO - Alarm
Voltages below 0.7VDC
are considered Alarm
O1 O2 T R
Voltages above 1.4VDC
are considered Alarm
