Ademco/Honeywell ECP Connection

The communicator can be connected to the ECP Bus of an Ademco/Honeywell panel. See Table 3 and Figure 8 for the
necessary wiring connections for CellCom‑LTE‑V to communicate with the Ademco/Honeywell ECP Bus.
ECP operation must be enabled when programming the communicator. See Keypad Input in System Options. When
connected as shown in Figure 8, the communicator provides the following operations:
• Arm and disarm the Ademco/Honeywell panel for Stay/Away systems using the Virtual Keypad™ app and
VirtualKeypad.com.
• Receives alarm, trouble, and opening/closing messages from the panel and sends them to the central station.
• Add, delete, and change user codes in the Ademco/Honeywell panel.
Digital Monitoring Products
10
Communicator to ECP Wiring
Communicator
+DC
‑DC
Z4+
Z4‑
Table 3: Communicator to Ademco/Honeywell ECP Wiring
(USE SA4120XM-1
1 2 3 4 5 6 7 8
SYNC
BLACK
COM
RED
DATA
-
+
Ademco Vista 20P
1 2 3 4 5 6 7
-
+ +

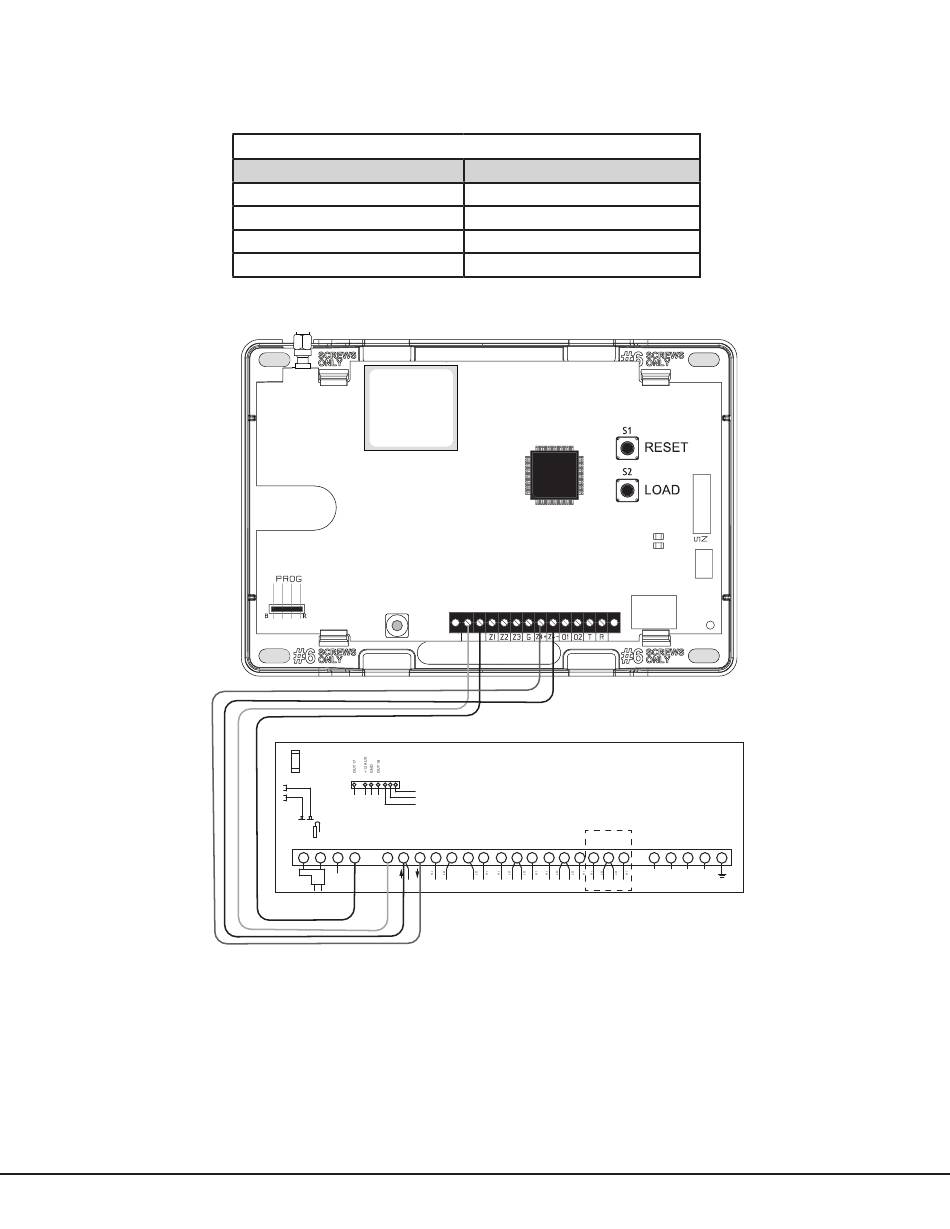

Figure 8: Ademco Vista 20P ECP to CellCom‑LTE‑V
Ademco/Honeywell ECP Bus
Keypad Power
Keypad GND
Data Out
Data In
+DC-
CABLE)
VISTA 20P ONLY
8 9 10 11 12 13 14 15 16 17 18
CellCom‑LTE‑V Programming and Installation Guide
19 20 21 22 23 24 25
TIP RING TIP RING
(BROWN) (GRAY) (GREEN) (RED)
