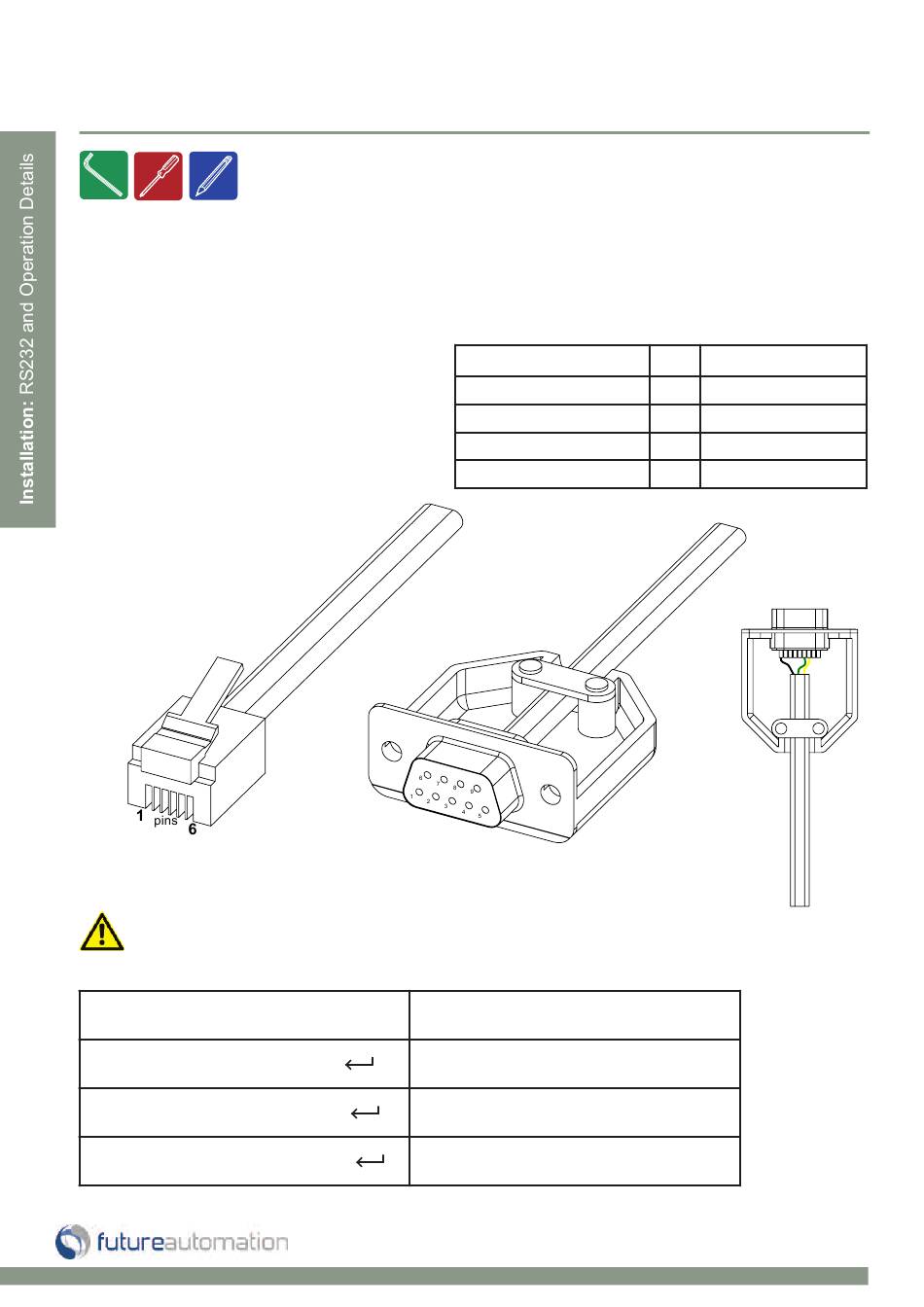

CHT - Ceiling Hinge Telescopic
RS232
- Use an RJ25 connector in the socket marked
RS232 on the control box to operate using RS232
Details
Baud rate:
9600
Stop bit:
1
Parity:
None
Databits:
8
Pin 1: RX
Pin 6 : TX
Pin 3 & 4: GROUND
IMPORTANT
Ensure protocol is entered exactly as written, including Carriage Return (Enter / ASCII 13).
COMMAND
fa_in Carriage Return (Enter
fa_out Carriage Return (Enter
fa_stop Carriage Return (Enter
Page 15 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
RJ25
PIN 1: RX
PIN 6: TX
PIN 3: GROUND
PIN 4: GROUND
ACTION
)
Device IN
)
Device OUT
)
Device STOP (At any position)
9 PIN D
TO
PIN 2: TX
TO
PIN 3: RX
TO
PIN 5: GROUND
TO
PIN 5: GROUND
Pin 2: TX
Pin 3: RX
Pin 5: GROUND
