CHT - Ceiling Hinge Telescopic
Decide which way to fix the mechanism
Mechanism installation Option 1
Holes for hanging
mechanism
Mechanism installation Option 2
Plaster board
ceiling
Box removal.
Open mechanism to roughly 20 degrees, undo
all the bolts within the box and then slide off.
(See CHT Tech for beam and opening details).
Mount plates
Page 6 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
One option is to hang the
mechanism from 4 bolts fixed
to the top of the mount plates.
(See CHT Tech for dimensions)
If option 1 is chosen to mount
the mechanism you can now
turn to installation stage 5 -
Running screen cables.

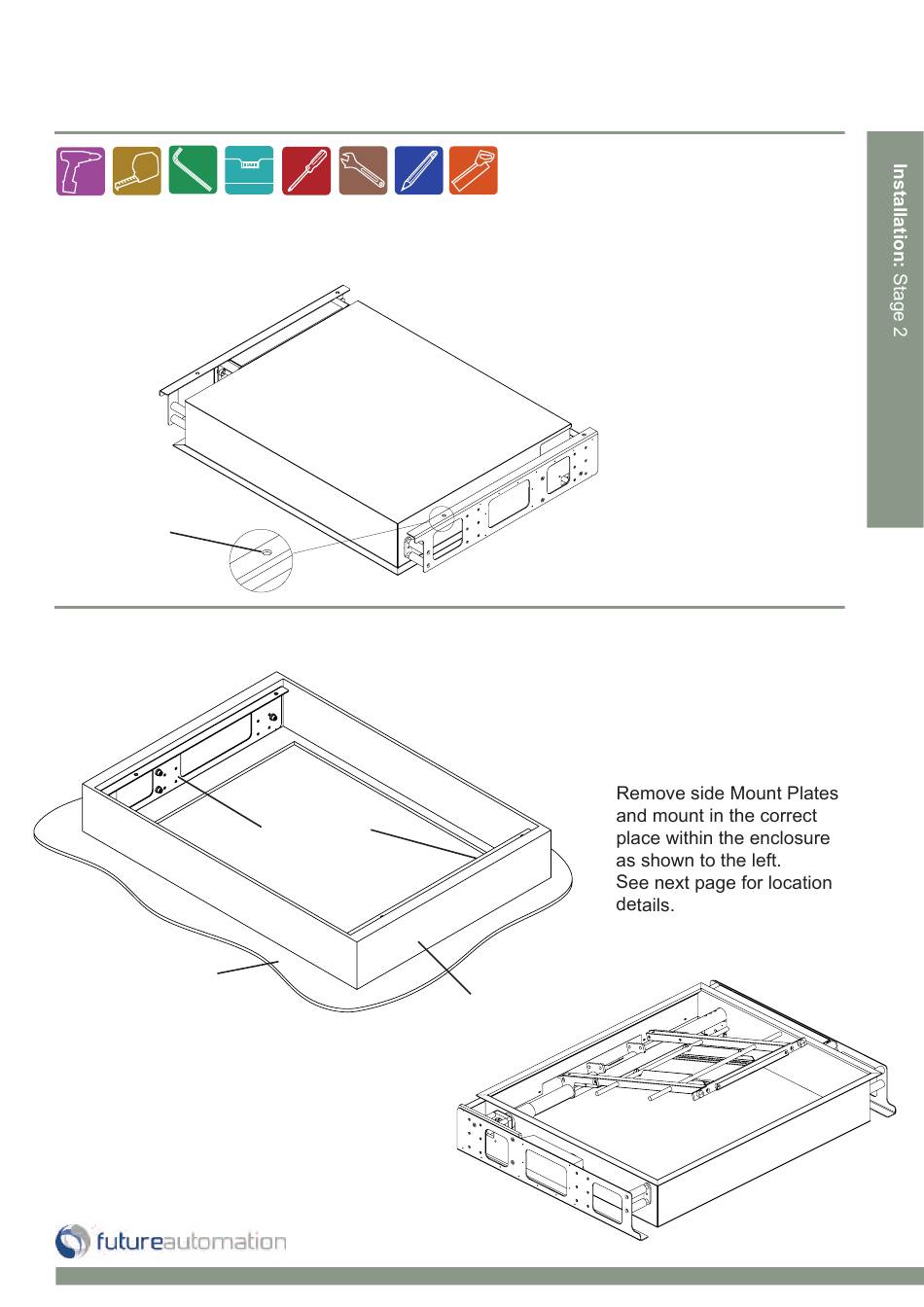

The second option is to remove the left
and right mount plates and secure them
within the enclosure.
Timber beams
