CHT - Ceiling Hinge Telescopic

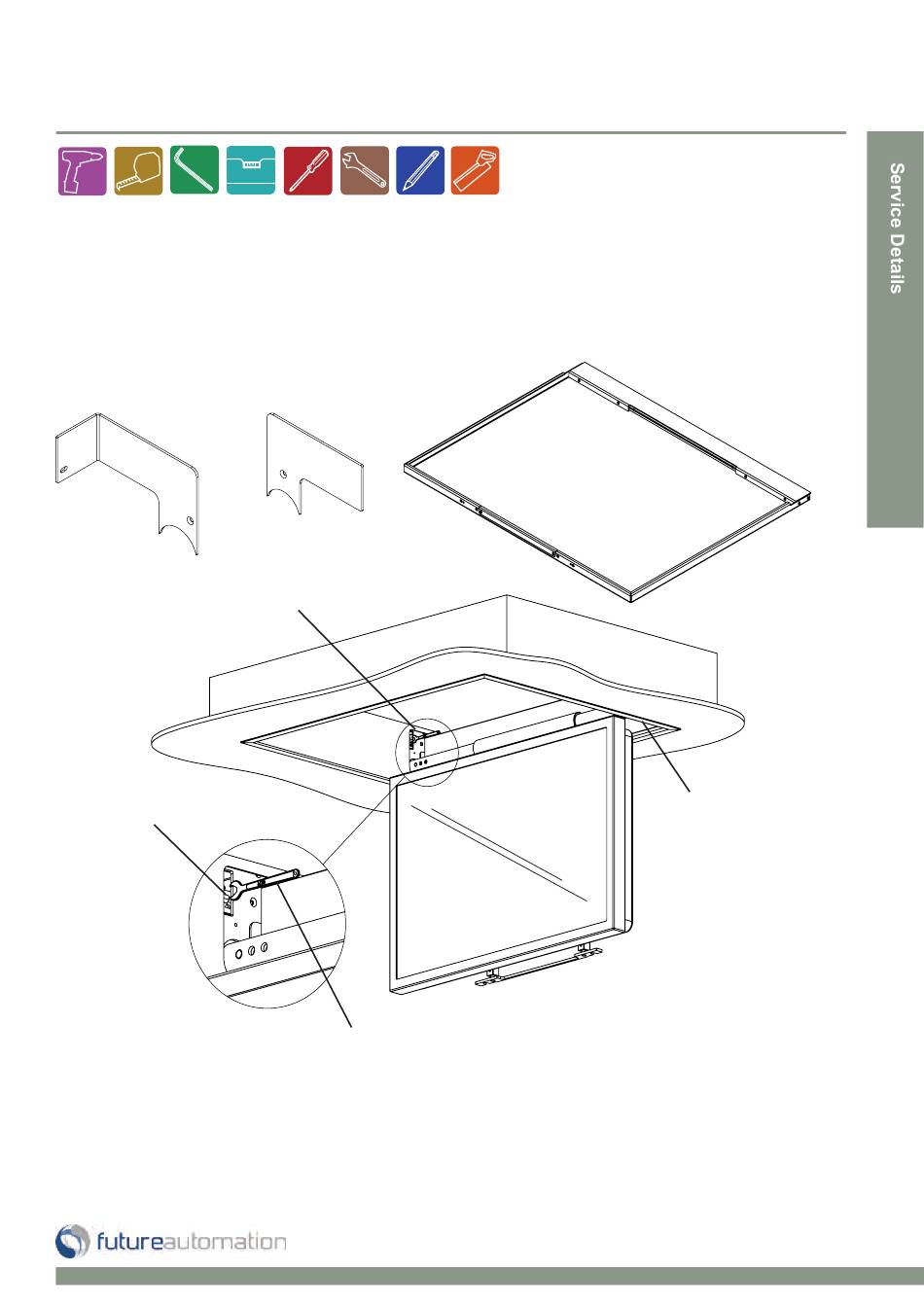

Adjustments and trim panels
Fix the top trim in position before fixing the left & right trim panels to the mechanism.
Take the mechanism up with the controller. Be very careful when it shuts for the first time.
Cover the STOP button just incase the cover panel doesn't line up.
Right Trim
Left trim panel goes here
Up adjuster
To adjust the telescopic height see Operation Buttons on page 16.
Left Trim
To adjust the height of the mechanism
in the closed position, turn the 10mm
spanner up to raise and down to lower
the hinge position.
Page 12 of 18 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
Main tray
Right trim panel
Task Order
1 - Box on
2 - Top trim on
3 - Right trim on
4 - Mount screen
5 - Connect screen
6 - Attach main tray
7 - Adjust up position
8 - Left trim on
