Altronix eFlow3N Installation Manual page 7

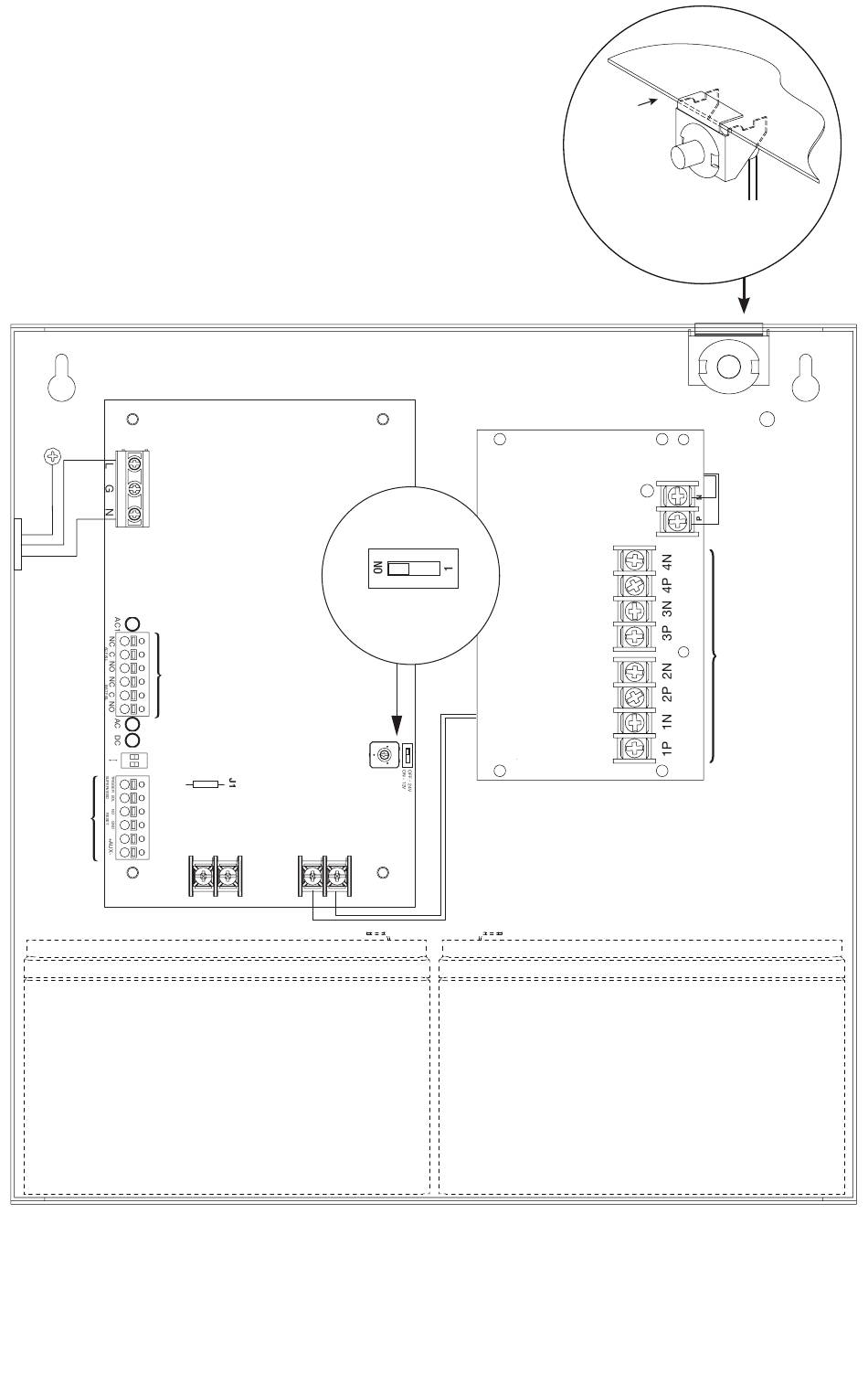

Fig. 4 - eFlow3N Configuration
Green
Lead
120VAC power mains
non power-limited
Battery & AC
Supervision Circuit
(power-limited)
power-
Battery Connection
limited
non power-limited
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries are required for UL603,
UL1481 and Canadian installations.
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
7AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used if using 12AH, 40AH or 65AH batteries.
eFlow3N Series Installation Guide
Switch Detail
AC Delay
- BAT + - DC +
Switch On - 12V
Switch Off - 24V
ON
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries are required for UL603,
UL1481 and Canadian installations.
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
PD4UL/
PD4ULCB
DC Output
to
Devices
(power-limited)
(refer to
Fig. 3a or 3b
for board
configuration,
pg. 6)
- 7 -
