Altronix eFlow3N Installation Manual page 11

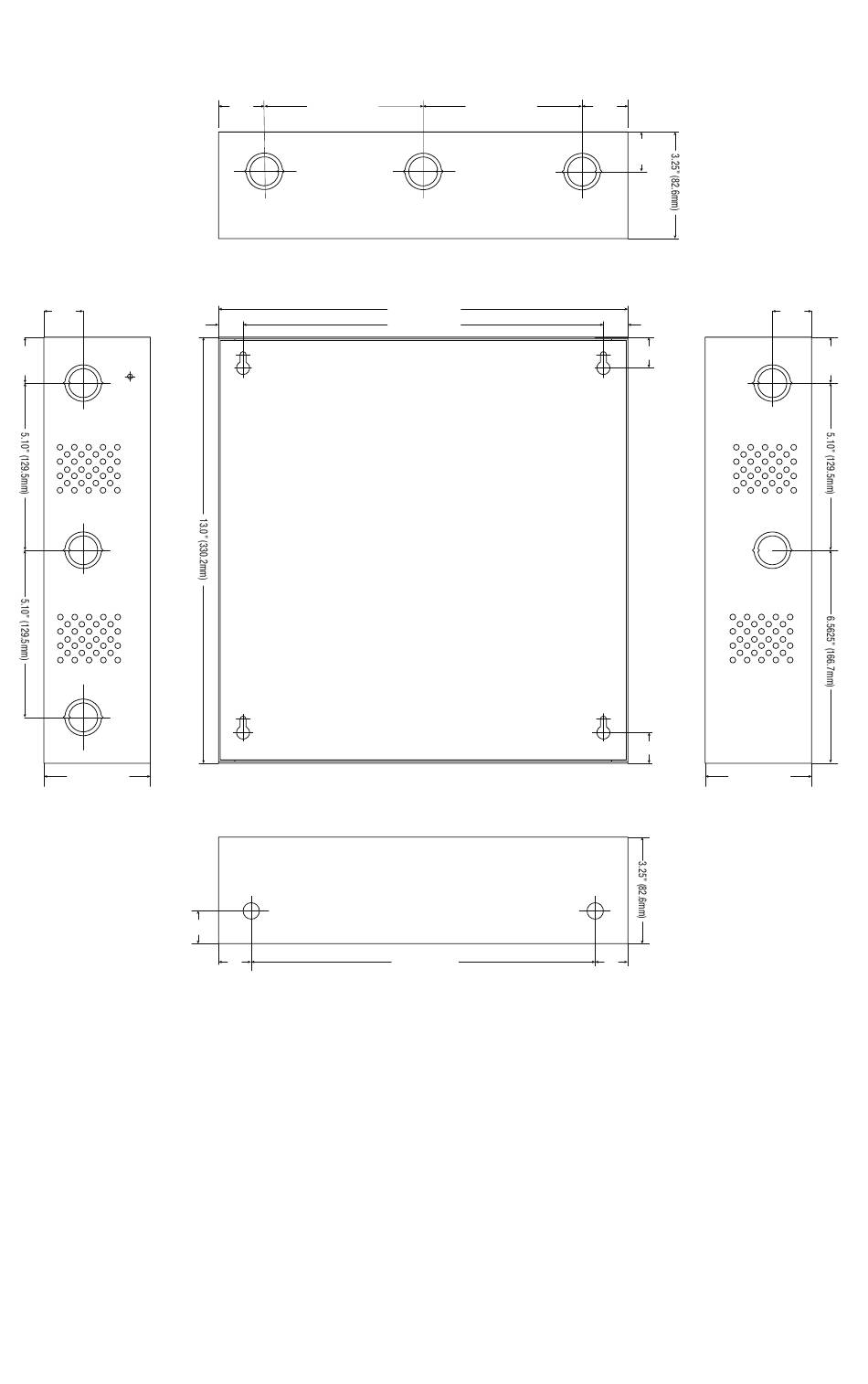

Enclosure Dimensions (BC300):
eFlow3N, eFlow3N4, eFlow3N4D
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm)
1.20"
(30.5mm)
1.40"
(35.6mm)
3.25" (82.6mm)
1.0" (25.4mm)
eFlow3N Series Installation Guide
1.40"
4.85" (123.2mm)
(35.6mm)
0.75"
(19.1mm)
1.0"
(25.4mm)
4.85" (123.2mm)
12.5" (317.5mm)
11.0" (279.4mm)
10.5" (266.7mm)
1.40"
(35.6mm)
1.20"
(30.5mm)
0.75"
(19.1mm)
0.9375" (23.8mm)
0.9375" (23.8mm)
3.25" (82.6mm)
1.0"
(25.4mm)
1.20"
(30.5mm)
1.40"
(35.6mm)
