Models Include:
Model
eFlow3N,
eFlow3N4,
eFlow3N4D
eFlow3NX,
eFlow3NX4,
eFlow3NX4D
The eFlow3N series power supply/chargers convert a 120VAC, 60Hz input to a 12VDC or 24VDC output.
Battery
7AH
12AH
40AH
65AH
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54A.
• Automatic switch over to stand-by battery when AC fails.
Transfer to stand-by battery power is instantaneous with no interruption.
Red (DC) Green (AC/AC1)
ON ON
ON OFF
OFF ON
OFF OFF
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Refer to the eFlow Power Supply/Chargers Installation Guide: IIeFlow3N Series, Rev. 3NRP013019 for complete
instructions. This sheet is to be removed, framed and posted next to the unit.
Rev. 3NRP013019

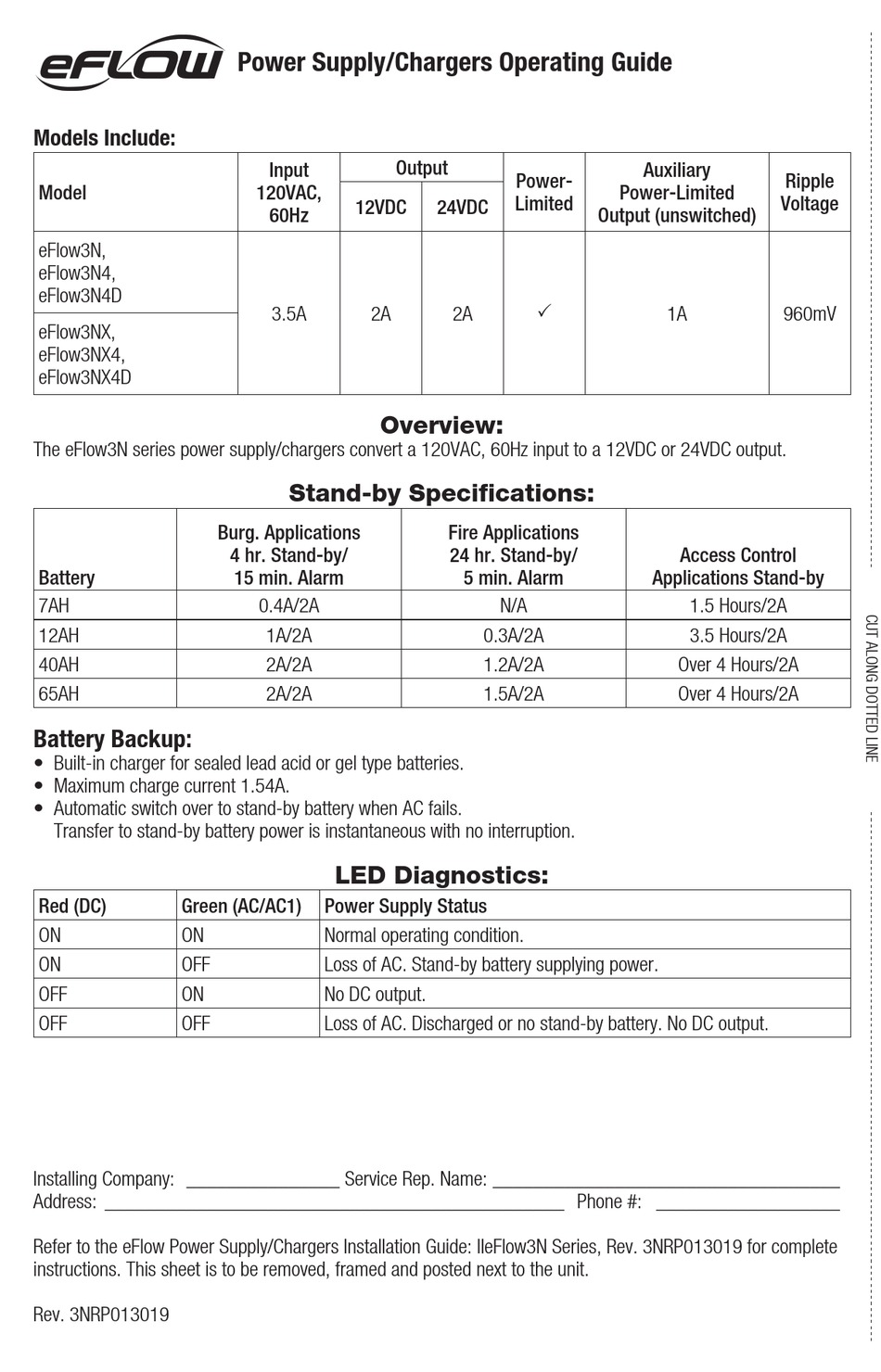

Power Supply/Chargers Operating Guide
Input
120VAC,
12VDC
60Hz
3.5A 2A
Overview:
Stand-by Specifications:
Burg. Applications
4 hr. Stand-by/
15 min. Alarm
0.4A/2A
1A/2A
2A/2A
2A/2A
LED Diagnostics:
Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.
Output
Power-
Limited
24VDC
2A
P
Fire Applications
24 hr. Stand-by/
5 min. Alarm
N/A
0.3A/2A
1.2A/2A
1.5A/2A
Auxiliary
Power-Limited
Output (unswitched)
1A
Access Control
Applications Stand-by
1.5 Hours/2A
3.5 Hours/2A
Over 4 Hours/2A
Over 4 Hours/2A
Ripple
Voltage
960mV
