Diagnostic Table
The location and size of the diagnostic table for ECU-1 in the input table is deter-
mined by the third input data point in the configuration. (See Figure 5-5) The
input data point entry is configured as shown below.

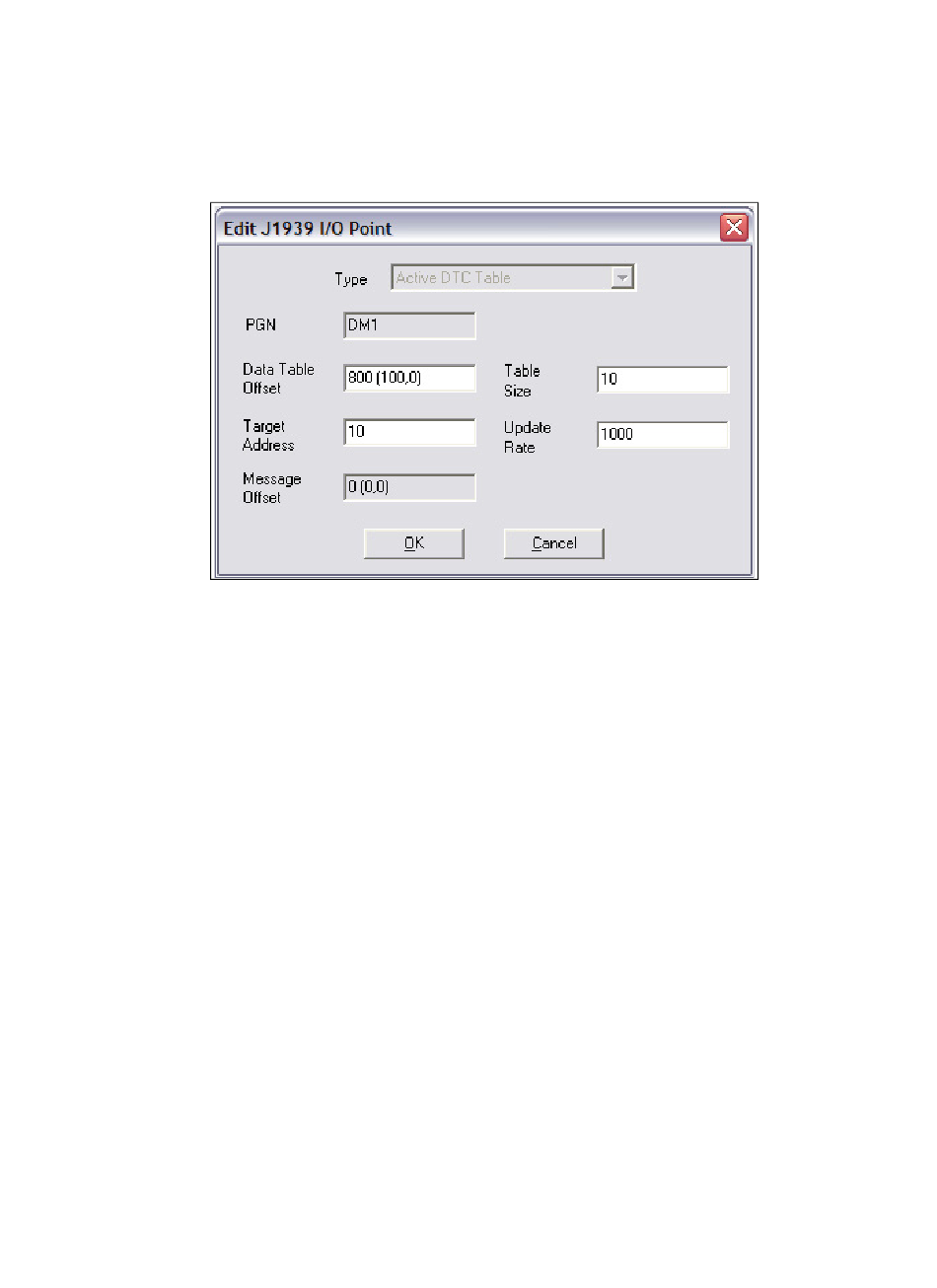

Figure 5-6 Example J1939 Diagnostic Table Configuration
The data table offset has been set so that the diagnostic table starts at Input Regis-
ter 30051 and has 10 entries in it.
The update rate is set to 1 second. If no diagnostic messages are received within a
second, a request will be sent to the target device at address 10 to retrieve the
diagnostic information.
The resulting diagnostic table will be at the following Modbus addresses. See
"J1939 Diagnostic Messages" on page 6-9 for details on the content of the Input
Registers.
© 2012 HMS Industrial Networks AB
30051 Table header
30052, 30053 Table entry #1
30054, 30055 Table entry #2
...
30070, 30071 Table entry #10
Example Application 5-5
